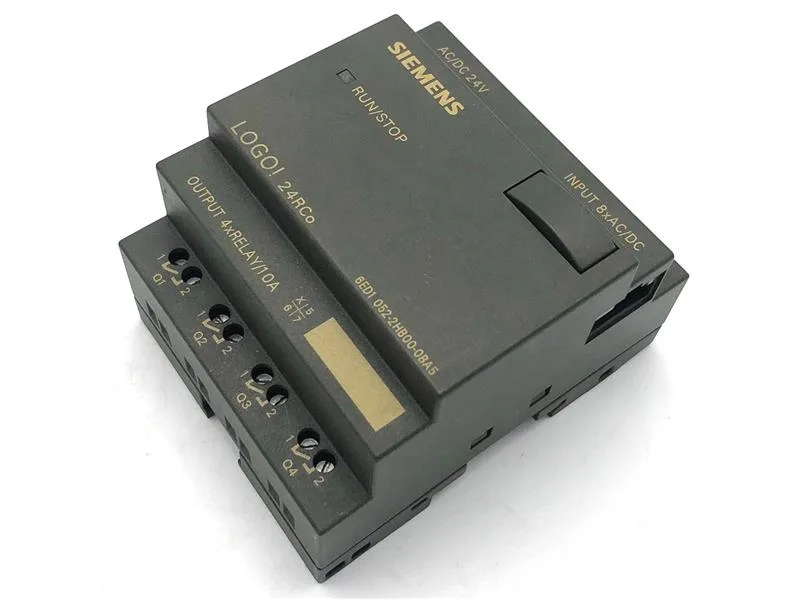

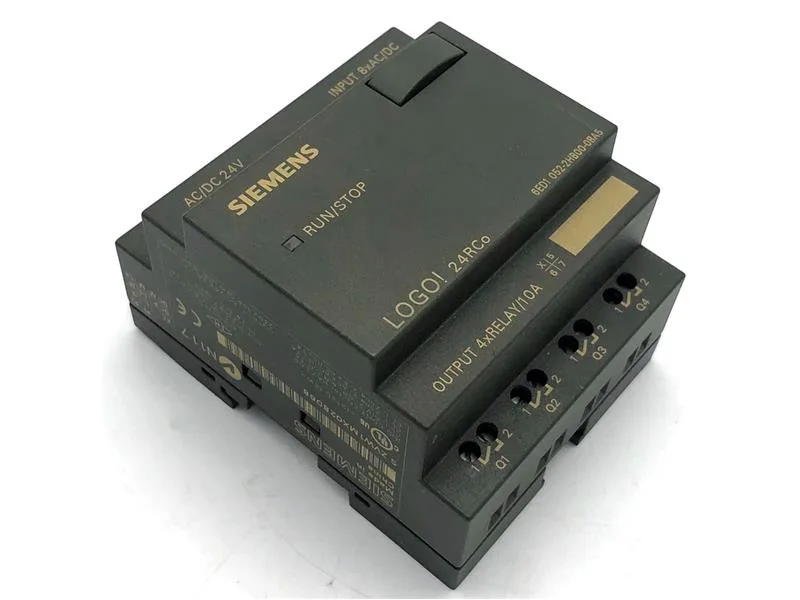

Siemens LOGO! 6ED1052-2HB00-0BA5, LOGO! 24RCO logic module, 24V UC supply, 8 DI/4 DO relay, 10 A max resistive, 130-block memory, expandable, DIN rail 4SU wide.
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 4; Relays |
| Parameter | Value |
|---|---|
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Short-circuit protection | No; external fusing necessary |
| Parameter | Value |
|---|---|
| Temperature, min. | 0 °C |
| Temperature, max. | 55 °C |
| Parameter | Value |
|---|---|
| Width | 72 mm |
| Height | 90 mm |
| Depth | 55 mm |
LOGO! 24RCO logic module, 24 V UC supply (20.4–28.8 V DC), 8 digital inputs, 4 relay outputs rated 10 A resistive / 3 A inductive. CE, UL, CSA, FM, Marine approved; suitable for residential areas (limit class B).
Operating ambient 0 °C to 55 °C. Power reserve holds program for 80 hours during power loss. Short-circuit protection requires external fusing.
Rated for 0 °C minimum and 55 °C maximum ambient.
No. The 6ES7222 is an S7-200 digital output module with a different form factor and wiring scheme. The LOGO! module requires its own terminal layout and DIN rail position.
Alternative models and sibling configurations in the same Siemens series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
