Siemens 6ED1052-2MD00-0BA6 — PLCs (Programmable Logic Controllers)

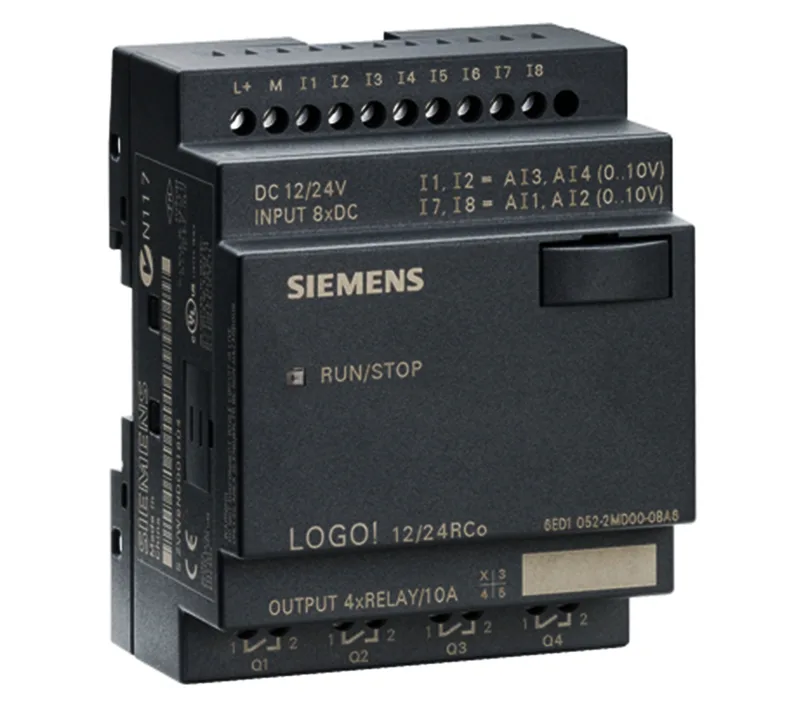

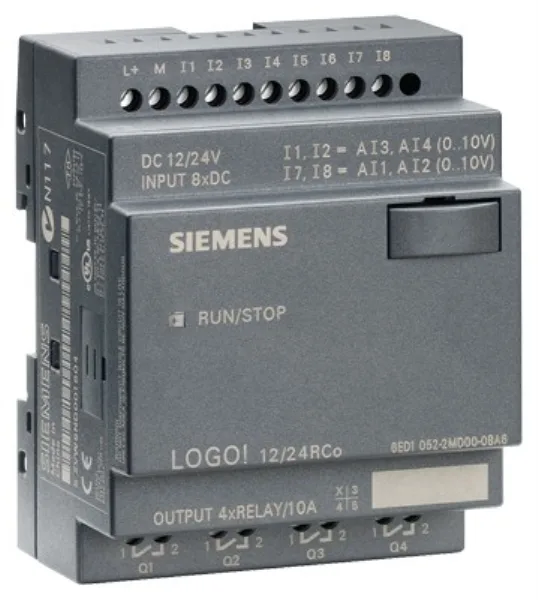

Siemens 6ED1052-2MD00-0BA6 LOGO! 12/24V DC Relay

MPN6ED1052-2MD00-0BA6

Siemens LOGO! 12/24RCO logic module, 8 digital inputs (4 analog-capable), 4 relay outputs, IP20, 4 spacing units wide, current production.

$83.82 – $148.00Ref. price · indicative, final on quote
Siemens 6ED1052-2MD00-0BA6 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ED1052-2MD00-0BA6 — I/O
ParameterValue
Digital inputs8; Of which 4 can be used in analog mode (0 to 10 V)
Digital outputs4; Relays
6ED1052-2MD00-0BA6 — Electrical
ParameterValue
Permissible range, lower limit (DC)10.8 V
Permissible range, upper limit (DC)28.8 V
Short-circuit protectionNo; external fusing necessary
6ED1052-2MD00-0BA6 — Environmental
ParameterValue
Temperature, min.0 °C
Temperature, max.55 °C
6ED1052-2MD00-0BA6 — Mechanical
ParameterValue
Width72 mm
Height90 mm
Depth55 mm

Product details

Expect standard lead time for an active Siemens catalog item; expedite options depend on current factory loading.

Closest second-source: 6ED1052-1MD00-0BA6

The 6ED1052-1MD00-0BA6 is mechanically and electrically identical—same width (72 mm, 4 SU), same I/O, same relay ratings, same approvals. The only difference is the –1MD00 variant includes an integrated display; this –2MD00 omits it. If the panel was spec'd for the –1MD00 but you don't need the front-panel HMI, this part drops in without rewiring—same terminal assignment, same DIN-rail position.

Frequently asked questions

Will 6ED1052-2MD00-0BA6 drop into a panel that was specified around 6ED1052-1MD00-0BA6 without rewiring?

Yes. Both modules share the same 72 mm (4 SU) footprint, same terminal layout, same relay ratings, and same DIN-rail clip. The only difference is the display: the –1MD00 has one, the –2MD00 does not. No wiring changes required.

What are the key operating temperature limits?

Rated 0 °C to 55 °C ambient.

MPN
6ED1052-2MD00-0BA6
