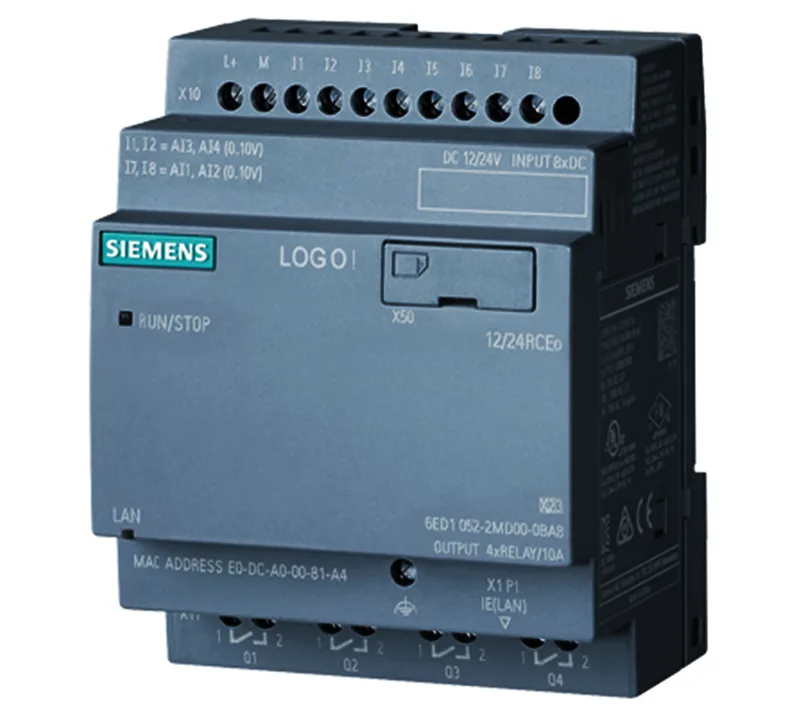

The 6ED1052-2MD00-0BA8: Bread-and-butter LOGO! for small automation jobs. Eight digital inputs, four of them configurable as analog 0-10 V. Four relay outputs switching 10 A resistive or 3 A inductive. Runs on 12 or 24 VDC, supply range 10.8-28.8 V. Ethernet port serves a web interface, data logging, and a 400-block program memory. No onboard display; program via LOGO! Soft Comfort and deploy headless. Mounts on 35 mm DIN rail, 4 spacing units wide with 480-hour power reserve. Approvals include CE, UL, CSA, FM, Marine, and rated limit class B for residential use.
Mounting and approvals
35 mm DIN rail mount, 71.5 mm wide, 90 mm high, 58 mm deep. Four spacing units wide — fits standard cabinets. Operating temperature 0 to 55 °C; with LOGO! 8 FS04 firmware the floor drops to -20 °C. Storage temperature exceeds operating range. Permissible supply voltage 10.8-28.8 VDC.
Sourcing and lifecycle
UL, CSA, FM, Marine, CE compliance documentation available on request. No internal short-circuit protection — external fusing required on relay outputs.
