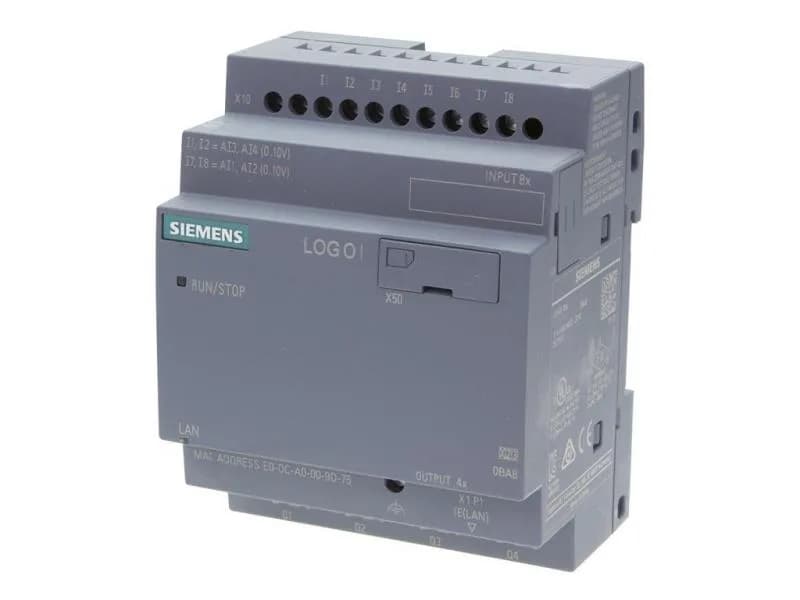

Siemens LOGO! 6ED10522HB080BA1 PLC, 8DI/4DO Relay, 12W, Ethe
MPN6ED10522HB080BA1
Siemens LOGO! 6ED10522HB080BA1 programmable logic controller, 8 digital inputs, 4 relay outputs, 12 W power, 24 V DC, Ethernet PROFINET IO device, IP20, DIN rail mount.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Output signal | Relay Output |
| Display type | No Display |
| Terminal type | Screw Terminal |
| Interface | Ethernet |
| Voltage | 24 V DC |
| Supply voltage | 24 V DC |
| Current | 0.5 A |
| Power | 12 W |
| Frequency | 50 Hz |
| IP rating | IP20 |
| Is profinet IO device | true |
| Is profinet IO controller | false |
| Mounting fastener | DIN Rail |
| Temp operating max | 55 °C |
| Temp operating min | 0 °C |
| I/O channels | 8 |
| Channels | 12 |
Product details
Frequently asked questions
What is the closest functional second-source or alternative?
The peer 6ED1052-2HB08-0BA1 is functionally identical in I/O and communication but offers a wider temperature range (-40 to 70 °C) versus the 0 to 55 °C of this part. If your application doesn't need the extreme ambient, this seed part is a clean drop-in.
