Product Identification and Key Ratings

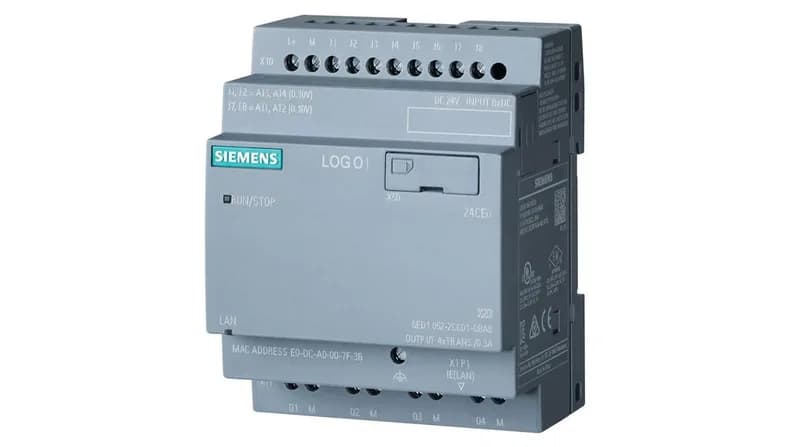

Siemens 6ED10522HB080BA2 is a LOGO! basic module without a display, rated for 24 V supply with a power consumption of 12 W and a current draw of 0.5 A at that voltage per the specification. It provides 8 digital inputs and 4 relay outputs, for a total of 12 discrete channels, and interfaces via Ethernet and RS-485 as a PROFINET IO device (not a controller). The module is housed in an IP20 enclosure with screw terminals for wiring and mounts on standard DIN rail. Operating ambient temperature range is 0 °C to 55 °C, suitable for climate-controlled industrial cabinets.
Mounting, Integration, and I/O Constraints
Communication is via Ethernet (PROFINET IO) and RS-485, making it suitable for both modern fieldbus networks and legacy serial links. The module is a PROFINET IO device only — it cannot act as an IO controller. Supply voltage must be 24 VDC; the 12 W power draw (0.5 A) should be factored into the control panel's 24 V load budget. The outputs are relay type, suited for switching loads up to the module's rated current (refer to the LOGO! manual for per-output limits and inductive load suppression).
