Siemens 6ED1053-1FB00-0BA2 — PLCs (Programmable Logic Controllers)

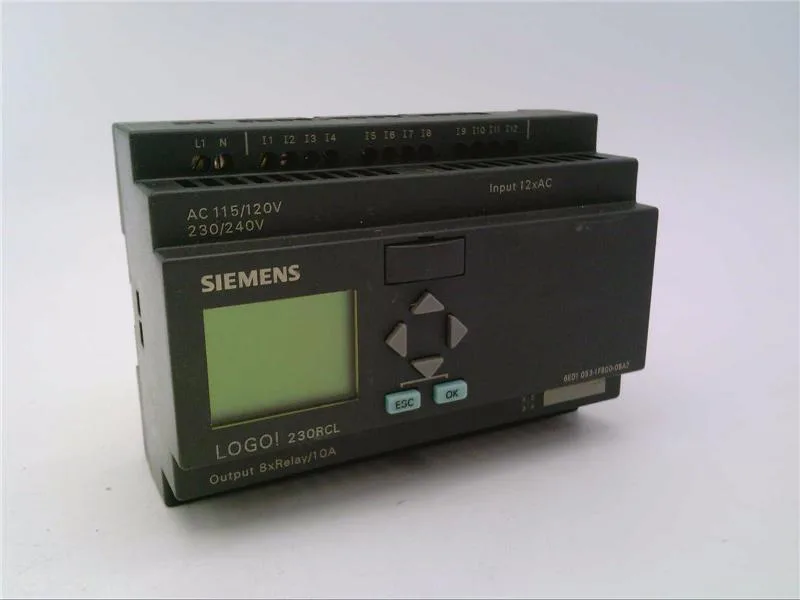

Siemens LOGO! 230RCL 6ED1053-1FB00-0BA2 Logic Module, 12 I/8 O, 24 VDC/240 VAC

MPN6ED1053-1FB00-0BA2

Siemens 6ED1053-1FB00-0BA2. Full specifications and sourcing options are below.

$155.00Ref. price · indicative, final on quote
Siemens 6ED1053-1FB00-0BA2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

6ED1053-1FB00-0BA2 — Mechanical
ParameterValue
Weight0,3 kg
6ED1053-1FB00-0BA2 — Other specifications
ParameterValue
TypeLogic Module
Model6ED1 053-1FB00-0BA2
ConditionUsed
Dimensions126 X 90 X 57 Mm
Shelf no.220401
Installation35 mm DIN rail
Output current8 A / 10 A
Output voltage24 VDC / 240 V AC
IP ratingIP20
Operating temperature0…55 °C
No of digital input12
No of digital output8, Relay

Product details

Overview

The LOGO! 230RCL is a Siemens logic module, order code 6ED1053-1FB00-0BA2, with 12 digital inputs and 8 relay outputs, rated for 24 VDC or 240 VAC supply.

The 12 digital inputs accept 24 VDC or 240 VAC signals, and the 8 relay outputs switch up to 8.0 A total, suitable for controlling contactors, lamps, and small motors. The integrated display and keypad allow on-site programming and monitoring without a PC, and the module operates from 0 to 55 °C.

MPN
6ED1053-1FB00-0BA2
