Siemens 6ED1055-1FB00-0BA0 — Digital Input Modules

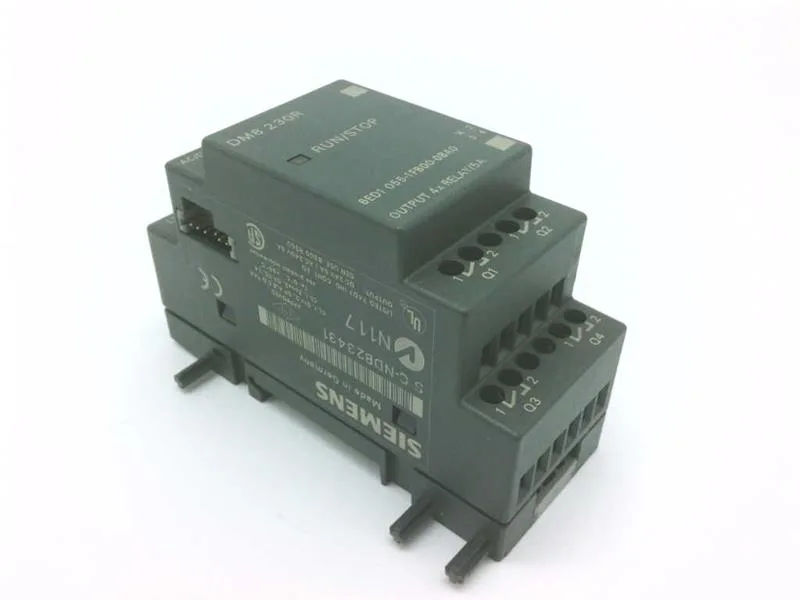

Siemens 6ED1055-1FB00-0BA0 LOGO! DM8 230R, 4DI/4DO

MPN6ED1055-1FB00-0BA0

Siemens LOGO! DM8 230R, Expansion module, 4DI/4DO relay, AC/DC 230V supply, 10A max per relay, 2 DU wide.

$59.69Ref. price · indicative, final on quote
Siemens 6ED1055-1FB00-0BA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ED1055-1FB00-0BA0 — Inputs
ParameterValue
Number of digital inputs4
6ED1055-1FB00-0BA0 — Electrical
ParameterValue
Input voltage at signal "1"> 79V AC
Input voltage at signal "0"< 40 V AC; > 30 V AC
Permissible range, lower limit (DC)85 V
Permissible range, upper limit (DC)253 V
Input current at signal "1" (typ.)> 0.08 mA
Input current at signal "0", max. (permissible quiescent current)0.03 mA
6ED1055-1FB00-0BA0 — Timing
ParameterValue
Input delay 0 to 1, max.50 ms; Typical
Input delay 1 to 0, max.50 ms; Typical
6ED1055-1FB00-0BA0 — Mechanical
ParameterValue
Depth55 mm
Height90 mm
Width36 mm; 2 DU

Product details

The Siemens 6ED1055-1FB00-0BA0 LOGO! DM8 230R is an expansion module adding four digital inputs and four relay outputs to a LOGO! base unit, with a thermal continuous current of 10 A per relay and 20 A total across all four relays. It accepts AC/DC supply in the 85–253 V DC or 47–63 Hz AC range (115–230 V nominal), and the inputs interpret signal "1" above 79 V AC, signal "0" below 40 V AC. Rated for resistive load switching at 2 Hz and inductive loads at 0.5 Hz; mechanical switching frequency up to 10 Hz.

Panel fit and approvals

Carries CE, UL, CSA, FM, and marine approvals; limit class B for residential-area use.

Frequently asked questions

What is the operating temperature range of this module?

It is rated for 0 to 55 °C ambient (min. 0 °C, max. 55 °C).
