Siemens 6ED1055-1HB00-0BA0

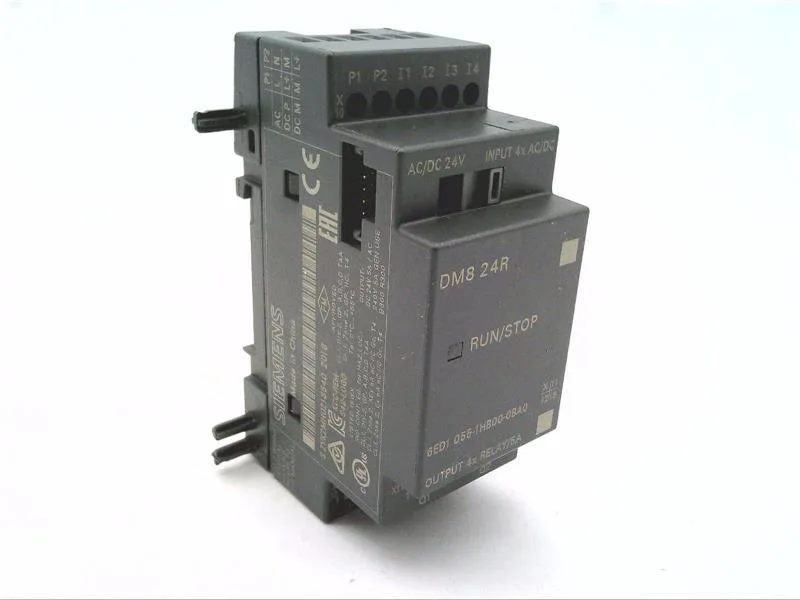

Siemens 6ED1055-1HB00-0BA0 LOGO! DM8 24R, 4 DI / 4 DO Relay

MPN 6ED1055-1HB00-0BA0

Siemens LOGO! DM8 24R expansion module, 6ED1055-1HB00-0BA0, 4 digital inputs AC/DC, 4 relay outputs, 2 DU wide, DIN rail mount, IP20.

$94.00 – $240.03 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ED1055-1HB00-0BA0 specifications
ParameterValue
IP ratingIP20
Depth55 mm
Width36 mm; 2 DU
Height90 mm

Product details

Panel fit and I/O assignment

The Siemens 6ED1055-1HB00-0BA0 is a LOGO! DM8 24R expansion module that snaps onto a 35 mm DIN rail, occupying 2 spacing units (36 mm wide). It adds 4 digital inputs and 4 relay outputs to a LOGO! base unit — the relay contacts handle up to 5 A on resistive loads and 3 A on inductive loads, so it directly drives small contactors, solenoid valves, or indicator banks without an interposing relay. The input side accepts 24 V AC or DC (range 20.4–28.8 V DC, 47–63 Hz AC) and thresholds are set for industrial 24 V signals: a logic '1' requires at least 12 V with a typical draw of 2.5 mA, while a logic '0' is guaranteed below 5 V. This means it works with standard 24 V PLC sensors and pushbuttons, and the AC capability lets it also read 24 V AC control transformer outputs directly.

Output ratings and switching limits

Each relay output is rated 5 A continuous on resistive loads and 3 A on inductive loads. For lamp loads the maximum is 1,000 W. Mechanical switching frequency is 10 Hz max, which is typical for relay outputs — adequate for valve or contactor cycling, but not for high-speed pulse trains. The input transition from '0' to '1' takes 1.5 ms max, and from '1' to '0' takes 15 ms max, so fast encoder pulses or short-duration sensor signals may be missed without external signal conditioning.

Approvals include UL, CSA, FM, and marine certification, plus CE and VDE 0631 compliance. It carries an FM approval for use in residential areas (limit class B), which simplifies panel approvals for light-commercial installations.
