Spare-part designation and current production

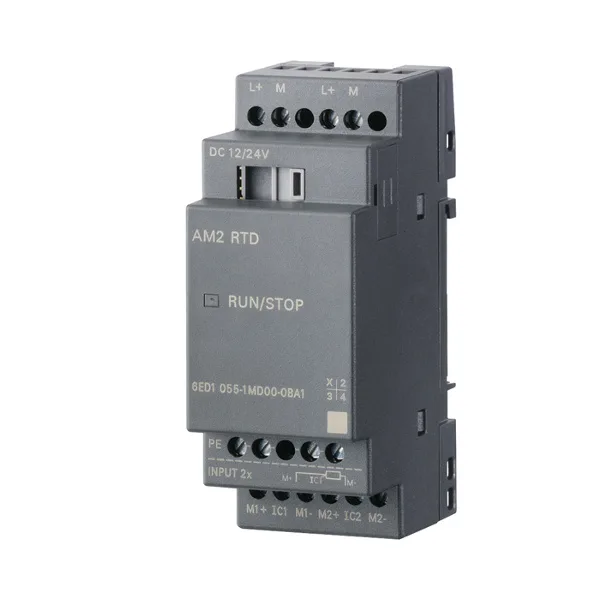

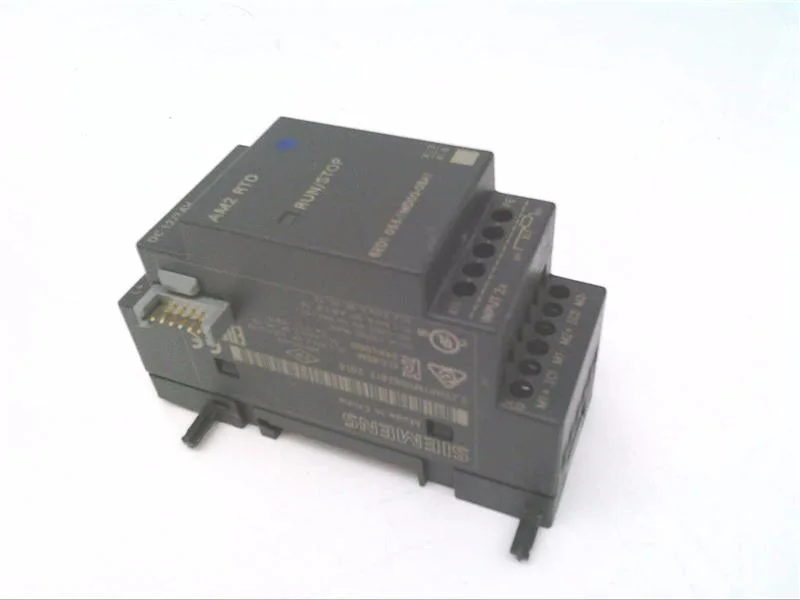

The 6ED1055-1MD00-0BA1: It provides 2 analog inputs configurable for Pt100 or Pt1000 resistance thermometers in 2- or 3-wire connection, covering a temperature range of -50 °C to +200 °C.
Supply, mounting, and approvals
The module accepts a supply voltage of 10.8 V DC to 28.8 V DC (nominal 12 V DC or 24 V DC) and draws 40 mA typical. It carries UL 508, CSA C22.2 No. 142, FM approval for Class I Division 2 hazardous locations, and marine approvals from ABS, BV, DNV, GL, LRS, and Class NK. It is developed in accordance with IEC 61131 (EN 61131-2) and meets radio interference suppression to EN 55011 Limit Class B, permitting use in residential areas.
Sourcing and compatibility
The module is designed for the LOGO! 8 base unit and later LOGO! generations that accept expansion modules.
