What the 6ED1055-1MM00-0BA1 carries

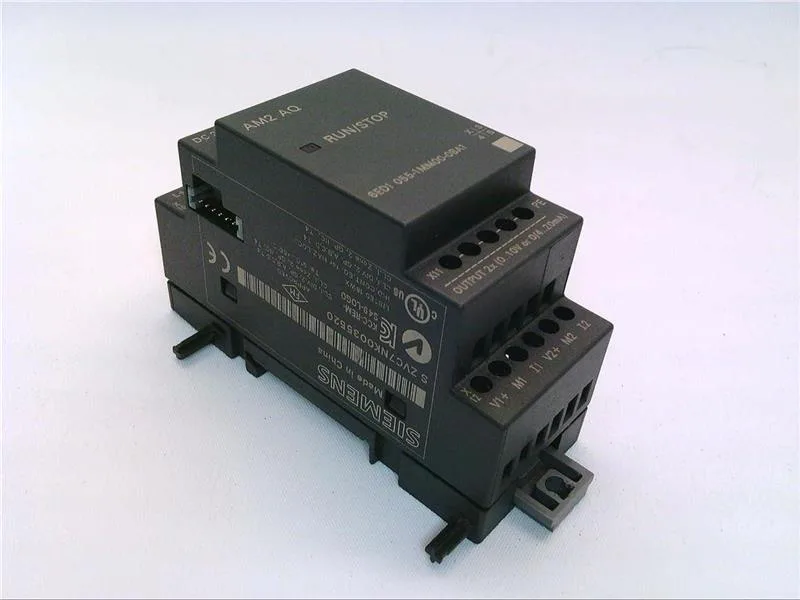

This is a Siemens LOGO! AM2 AQ expansion module – a spare part for the LOGO! PLC family – adding two analog output channels to a base unit. Each output delivers 0–10 V or 0/4–20 mA, selected per channel. It runs on 24 V DC and is rated for indoor panel use from 0 to 55 °C. Approvals include CE, UL, CSA, FM, and Marine, so it passes for industrial control panels, marine environments, and facilities requiring FM approval. The IP20 enclosure keeps dust out but expects a clean, dry cabinet.
DIN-rail fit and panel integration
Mounts on 35 mm DIN rail, 36 mm wide, 2 spacing units. Dimensions: 90 mm height, 55 mm depth. Temperature range from 0 to 55 °C covers most control cabinets without derating. Off-state leakage and accuracy are within the LOGO! system specification; no special cooling required below 55 °C.
