Siemens 6ED1055-1MM00-0BA2

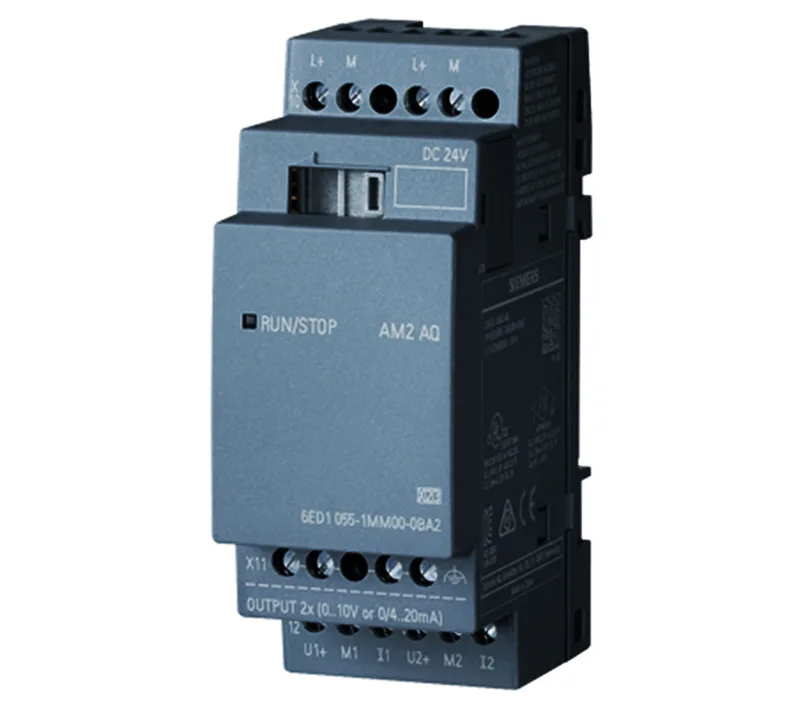

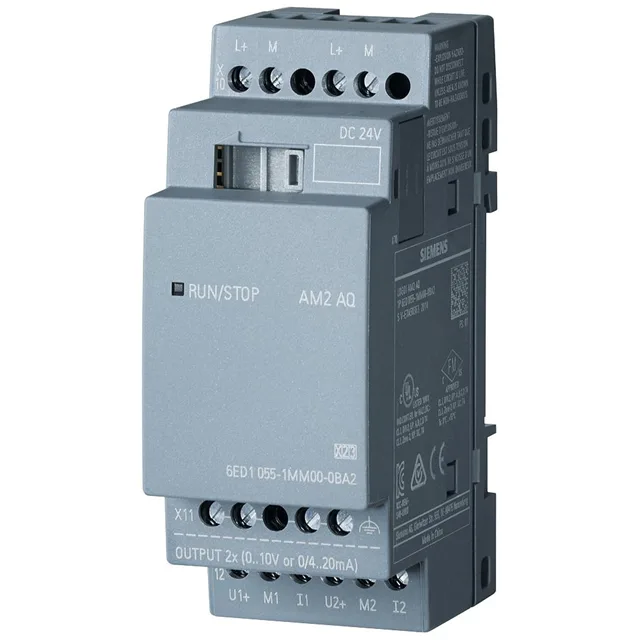

Siemens 6ED1055-1MM00-0BA2 LOGO! AM2 AQ, 2 Analog Outputs

MPN 6ED1055-1MM00-0BA2
Active

Siemens LOGO! AM2 AQ expansion module 6ED1055-1MM00-0BA2, 24 V DC, 2 analog outputs 0-10 V / 0/4-20 mA, IP20, 2 spacing units wide on 35 mm DIN rail.

$90.17 – $206.06 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ED1055-1MM00-0BA2 specifications
ParameterValue
IP ratingIP20
Depth58 mm
Width35.5 mm
Height90 mm

Product details

2 analog outputs, 24 V DC, 2 spacing units wide

The Siemens 6ED1055-1MM00-0BA2 is a LOGO! AM2 AQ expansion module that adds two analog outputs to a LOGO! 8 base unit. Each output can be configured for 0 to 10 V, 0 to 20 mA, or 4 to 20 mA signals, so it covers the common analog command profiles for drives, valves, and transducers without extra signal conditioners.

Panel integration and environmental limits

At 35.5 mm wide, 90 mm tall, and 58 mm deep, the module fits a standard DIN-rail enclosure. The IP20 rating means it's intended for a protected panel interior. Ambient operating range is 0 °C to 55 °C; hardware revision ES03 and higher extends the lower limit to -20 °C.

The module carries CE, UL, CSA, and FM approval, plus marine approval for shipboard installations. It also meets VDE 0631 and IEC 61131, and is classified as limit class B for residential-area use — so it passes the EMC bar for both industrial and light-commercial panels. No end-of-life notice or successor is on record.

MPN
6ED1055-1MM00-0BA2
