The 6ED1055-1NB10-0BA2: Mounted on a 35 mm DIN rail, the module is 4 spacing units wide (71.5 mm) with an IP20 enclosure. Signal thresholds: >12 V for logic 1, <5 V for logic 0; typical input current at logic 1 is 2 mA. Switching times are symmetric at 1.5 ms for both edges. Relay outputs are rated 5 A resistive, 3 A inductive, and 1 000 W for lamp loads. Minimum load current per output is 100 mA; maximum quiescent current at logic 0 is 0.85 mA. No short-circuit protection is built in.

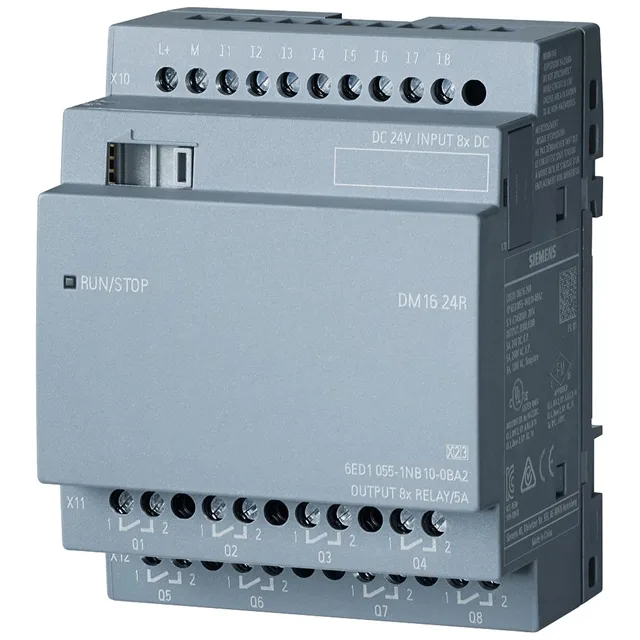

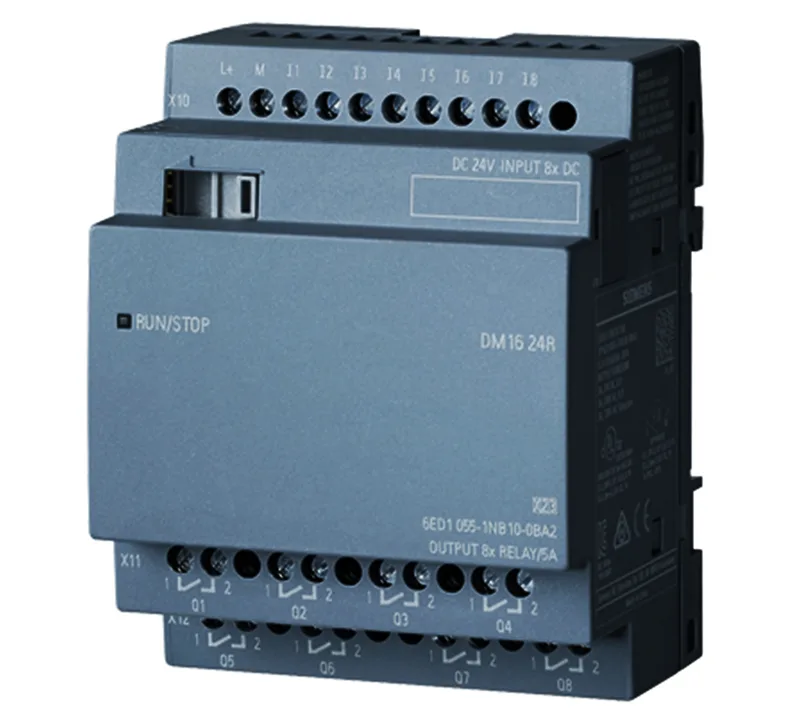

Siemens 6ED1055-1NB10-0BA2 LOGO! DM16 24R
MPN6ED1055-1NB10-0BA2
Active
Siemens LOGO! DM16 24R expansion module, 24V DC, 8 digital inputs, 8 relay outputs, UL/CSA/FM/CE approved.
$82.55 – $191.88Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Inputs
| Parameter | Value |
|---|---|
| Number of digital inputs | 8 |
Electrical
| Parameter | Value |
|---|---|
| Input voltage at signal "1" | > 12 V DC |
| Input voltage type (AC/DC) | DC |
| Input voltage at signal "0" | < 5 V DC |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Input current at signal "1" (typ.) | 2 mA |
| Input current at signal "0", max. (permissible quiescent current) | 0.85 mA |
Timing
| Parameter | Value |
|---|---|
| Input delay 0 to 1, max. | 1.5 ms |
| Input delay 1 to 0, max. | 1.5 ms |
Diagnostics & Isolation
| Parameter | Value |
|---|---|
| Short-circuit protection | No |
Mechanical
| Parameter | Value |
|---|---|
| Depth | 58 mm |
| Height | 90 mm |
| Width | 71.5 mm |
Product details
Frequently asked questions
What is the maximum ambient temperature?
55 °C.
What is the minimum ambient temperature?
0 °C; for firmware version ES03 and higher, -20 °C.
MPN
6ED1055-1NB10-0BA2
