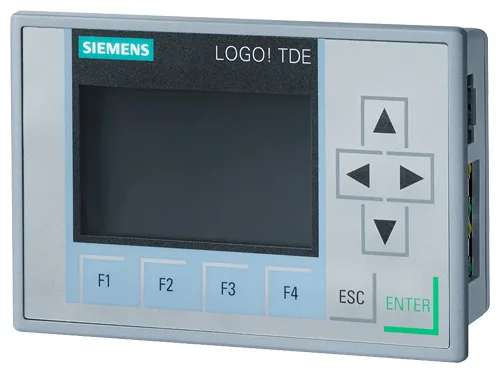

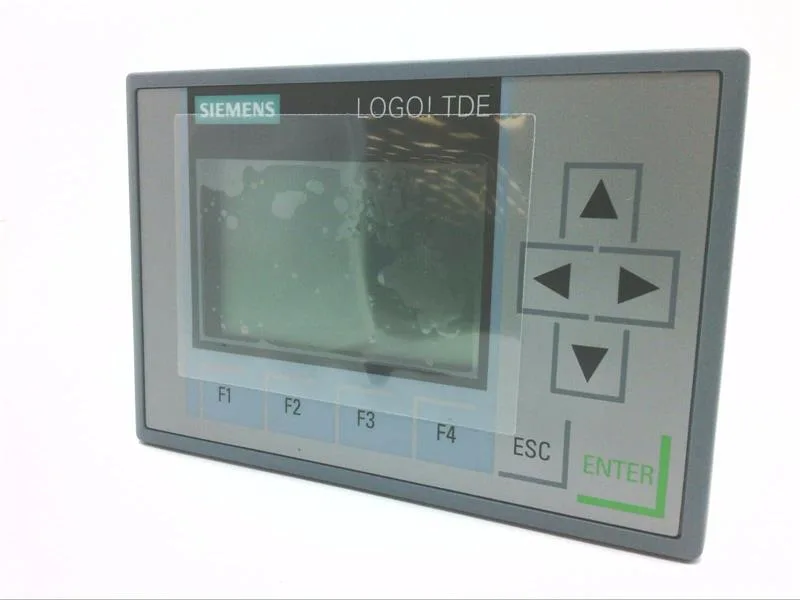

The Siemens 6ED1055-4MH08-0BA0 is a LOGO! TD text display — a 6-line FSTN panel with LED backlighting and three programmable background colors, designed for the LOGO! 8 modular logic controller family. It draws 1.8 W typical at 24 V DC and accepts 12/24 V DC or 24 V AC supply, making it straightforward to tap into an existing 24 V control bus in a panel. Two Ethernet ports let it sit on the same network as the LOGO! 8 base module without an extra switch — useful for a conveyor zone controller where you want local status readout without running extra cables to a central HMI.
Temperature range and panel fit
The front carries IP65 protection, meaning it withstands washdown splashes and dust — fine for a food-grade or outdoor enclosure door. Panel cutout is 128.2 mm wide by 86 mm high, with a behind-panel depth of 38.7 mm. That shallow depth leaves room behind the gland plate for wiring and a LOGO! base unit.
Carries CE, UL, FM, KC, and American Bureau of Shipping (ABS) marine approvals — covers industrial, commercial, and vessel installations. No RoHS/REACH statement in the record, but Siemens typically provides compliance documentation with the shipment.
