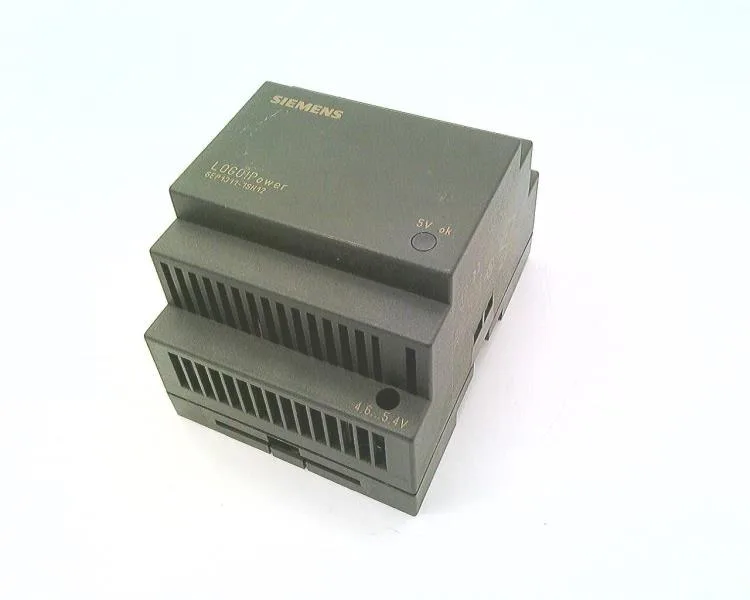

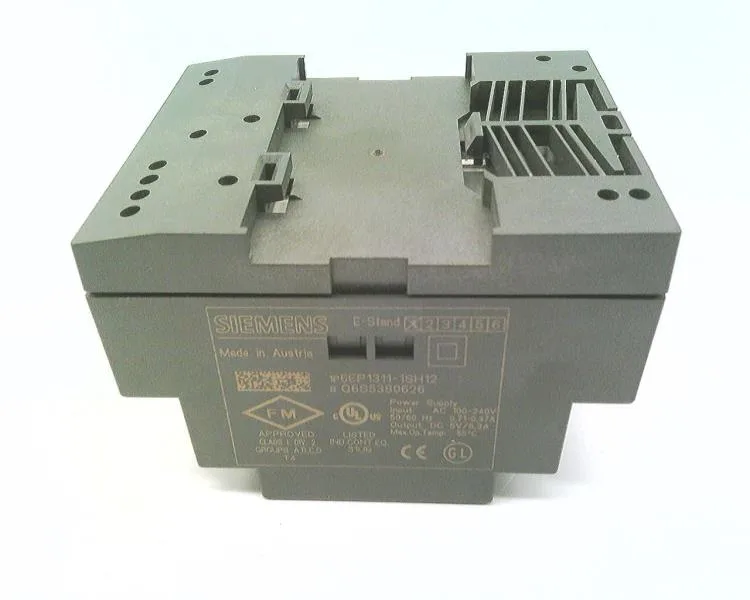

Siemens 6EP1311-1SH12 — DIN Rail Power Supplies

Siemens 6EP1311-1SH12

MPN6EP1311-1SH12

LOGO!Power 5 V Stabilized power supply input: 100-240 V AC output: 5 V DC/6.3 A

$89.38Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6EP1311-1SH12 — Electrical – Output
ParameterValue
Output voltage adjustableYes
6EP1311-1SH12 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)30 W
Maximum10 A
6EP1311-1SH12 — Protection & Isolation
ParameterValue
Short-circuit proof outputYes
Galvanic isolation (SELV / standards)Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
6EP1311-1SH12 — Mechanical
ParameterValue
Enclosure width72 mm
Enclosure height90 mm
Enclosure depth55 mm
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top20 mm
Mounting clearance, bottom20 mm
6EP1311-1SH12 — Environmental
ParameterValue
Operating temperature range-20 ... +55 °C
Storage temperature range-40 ... +70 °C
Transport temperature range-40 ... +70 °C
6EP1311-1SH12 — Reliability & Features
ParameterValue
MTBF at 40 °C1 419 239 h
MPN
6EP1311-1SH12
