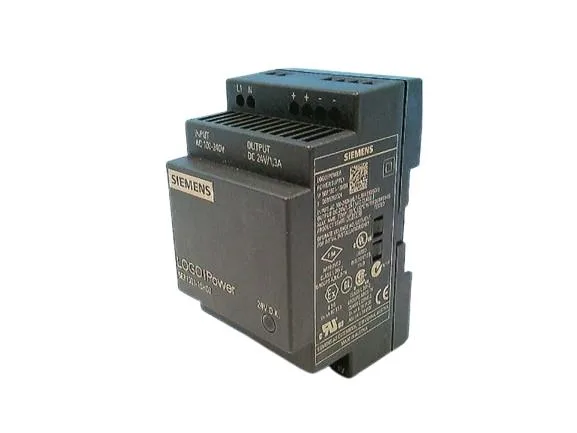

Siemens 6EP1331-1SH03
MPN6EP1331-1SH03
LOGO!POWER 24 V/1.3 A Regulated power supply input: 100-240 V AC (DC 110-300 V) output: DC 24 V/1,3 A
$71.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Rated output voltage (DC) | 24 V |
| Rated current | 1.3 A |
| Rated current range | 0 ... 1.3 A; +55 ... +70 °C: Derating 2%/K |
| Output power at rated voltage/current (typ.) | 6 W |
| Output voltage characteristic | Controlled, isolated DC voltage |
| Output 1 rated voltage (DC) | 24 V |
| Output voltage adjustable | Yes |
| Parameter | Value |
|---|---|
| Supplied active power (typ.) | 30 W |
| Efficiency | 85 % |
| Power supply network type | 1-phase AC or DC |
| Maximum | 2.4 A |
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Protection class | Class II (without protective conductor) |
| Short-circuit proof output | Yes |
| Short-circuit protection design | Constant current characteristic |
| Galvanic isolation input/output | Yes |
| Galvanic isolation (SELV / standards) | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Input terminals | L, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| Output terminals | +, -: 2 screw terminals each for 0.5 ... 2.5 mm² |
| Parameter | Value |
|---|---|
| Mounting method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| Enclosure width | 54 mm |
| Enclosure height | 90 mm |
| Enclosure depth | 52.6 mm |
| Side-by-side mountable | Yes |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 20 mm |
| Mounting clearance, bottom | 20 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | -20 ... +70 °C; with natural convection |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Current limitation of inrush current at 25 °C maximum | 25 A |
| Parameter | Value |
|---|---|
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310) |
| CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310) |
| NEC Class 2 | Yes |
| ATEX approval | No |
| IECEx approval | No |
| UL HazLoc approval | No |
| cCSAus Class I Div 2 (hazardous loc.) | No |
| EAC approval | Yes |
| Shipbuilding approval | ABS, BV, DNV, GL, LRS |
| EMC – emission standard | EN 55022 Class B |
| EMC – immunity standard | EN 61000-6-2 |
| Parameter | Value |
|---|---|
| MTBF at 40 °C | 3 586 929 h |
| Equipment bridging | Yes |
| Status indicators / display | Green LED for output voltage OK |
| Parameter | Value |
|---|---|
| Adjustable Output Voltage | 22.2 ... 26.4 V |
