Siemens 6EP1331-5BA00 — DIN Rail Power Supplies

Siemens 6EP1331-5BA00

MPN6EP1331-5BA00
Active

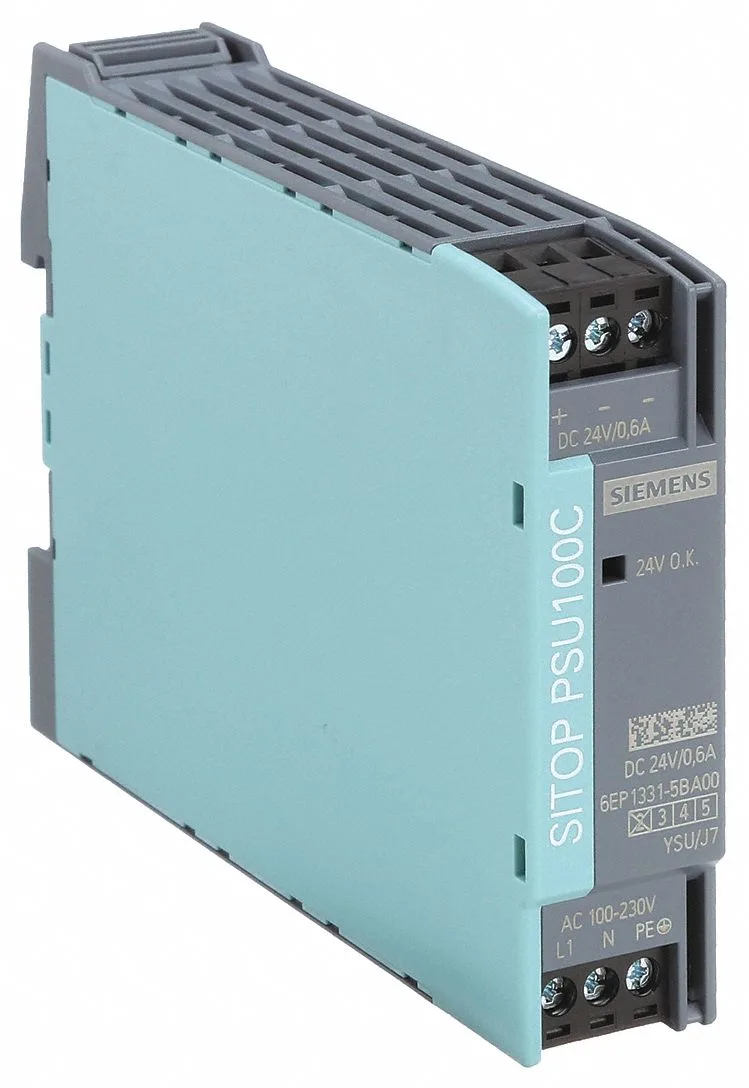

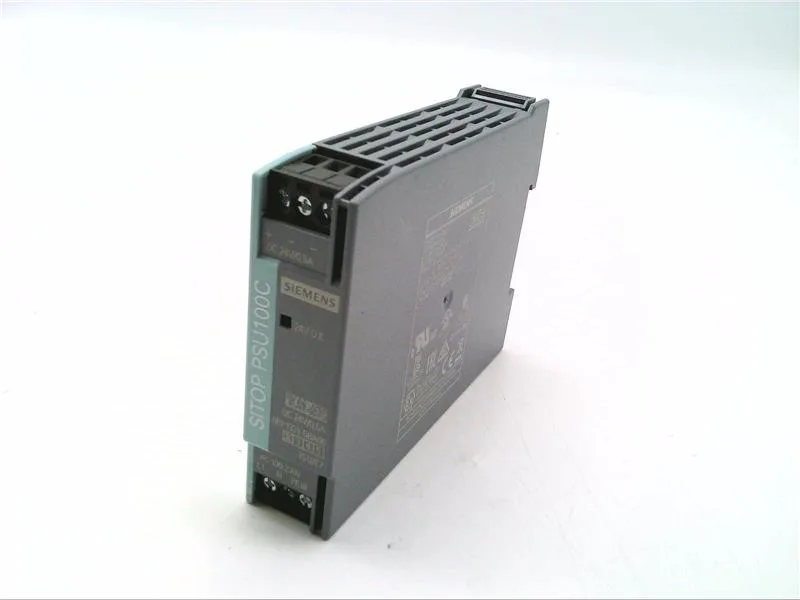

SITOP PSU100C 24 V/0.6 A stabilized power supply input: 100-230 V AC (110-300 V DC) output: 24 V DC/0.6 A *Ex approval no longer available*

$34.29 – $76.97Ref. price · indicative, final on quote
Siemens 6EP1331-5BA00 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP1331-5BA00 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current0.6 A
Rated current range0 ... 0.6 A
Output power at rated voltage/current (typ.)2.6 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableNo
6EP1331-5BA00 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)14 W
Efficiency82 %
Power supply network type1-phase AC or DC
Maximum3.5 mA
6EP1331-5BA00 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass I
Short-circuit proof outputYes
Short-circuit protection designElectronic shutdown, automatic restart
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
6EP1331-5BA00 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminalsL, N, PE: Removable screw terminal, each for 1 x 0.5 ... 2.5 mm²
Output terminals+: 1 screw terminal for 0.5 ... 2.5 mm²; -: 2 screw terminals for 0.5 ... 2.5 mm²
6EP1331-5BA00 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width22.5 mm
Enclosure height80 mm
Enclosure depth100 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top50 mm
Mounting clearance, bottom50 mm
6EP1331-5BA00 — Environmental
ParameterValue
Operating temperature range-20 ... +70 °C; with natural convection
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Climatic class (IEC 60721)Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum28 A
6EP1331-5BA00 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310)
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310)
NEC Class 2Yes
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
Shipbuilding approvalABS, DNV GL
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP1331-5BA00 — Reliability & Features
ParameterValue
MTBF at 40 °C3 910 833 h
Equipment bridgingNo
Status indicators / displayGreen LED for output voltage OK
