Siemens 6EP1332-1SH12 — DIN Rail Power Supplies

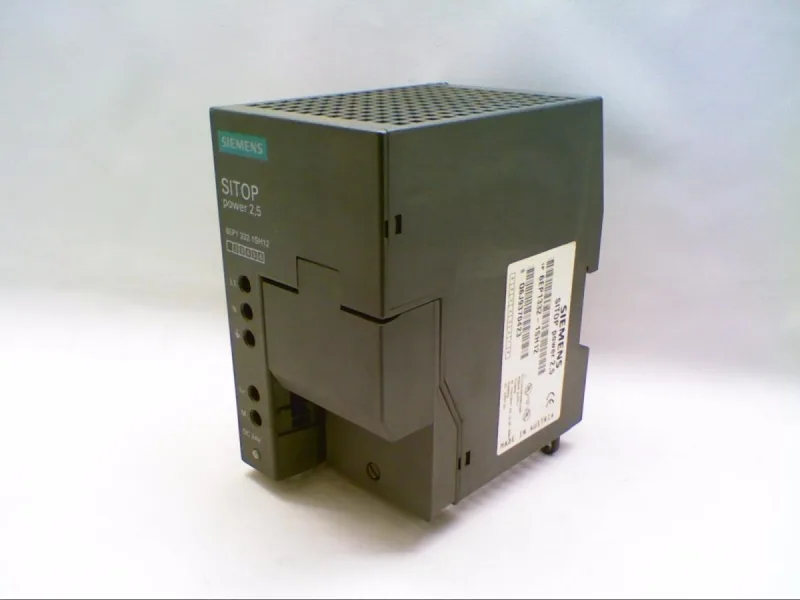

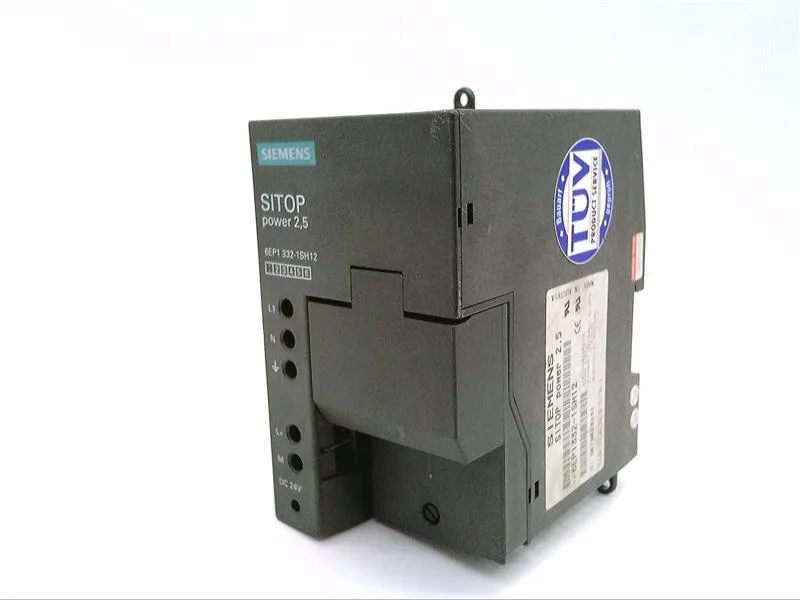

Siemens 6EP1332-1SH12

MPN6EP1332-1SH12

********* spare part ********** SITOP power 2.5 A, Univ. Line stabilized power supply input: 120-230 V AC (110-350 V DC) output: 24 V DC/2.5 A,

$170.66Ref. price · indicative, final on quote
Siemens 6EP1332-1SH12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP1332-1SH12 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current2.5 A
Rated current range0 ... 2.5 A
Output power at rated voltage/current (typ.)11 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableNo
6EP1332-1SH12 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)60 W
Efficiency85 %
Power supply network type1-phase AC or DC
Maximum3.5 mA
6EP1332-1SH12 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass I
Short-circuit proof outputYes
Short-circuit protection designConstant current characteristic
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra low output voltage Vout according to EN 60950-1
6EP1332-1SH12 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminalsL, N, PE: 1 screw terminal each for 2 x 0.5 ... 1.5 mm² finely stranded, 2 x 0.5 ... 2.5 mm² single-core
Output terminalsL+, M: 1 screw terminal each for 2 x 0.5 ... 2.5 mm²
6EP1332-1SH12 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x15, wall mounting
Enclosure width80 mm
Enclosure height135 mm
Enclosure depth120 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top100 mm
Mounting clearance, bottom100 mm
6EP1332-1SH12 — Environmental
ParameterValue
Operating temperature range0 ... 60 °C; with natural convection
Storage temperature range-25 ... +85 °C
Transport temperature range-25 ... +85 °C
Climatic class (IEC 60721)Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum33 A
6EP1332-1SH12 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
NEC Class 2No
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP1332-1SH12 — Reliability & Features
ParameterValue
MTBF at 40 °C645 161 h
Equipment bridgingYes
Status indicators / displayGreen LED for 24 V OK
MPN
6EP1332-1SH12
