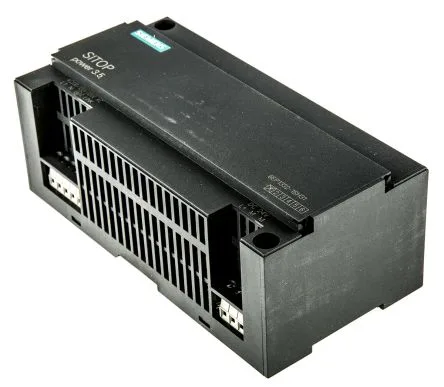

Siemens 6EP1332-1SH31
MPN6EP1332-1SH31
********* spare part ********** SITOP power 3.5 A, Univ. Line stabilized power supply input: 120/230 V AC output: 24 V DC/3.5 A S7-200 design
$106.30Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Rated output voltage (DC) | 24 V |
| Rated current | 3.5 A |
| Rated current range | 0 ... 3.5 A |
| Output power at rated voltage/current (typ.) | 16 W |
| Output voltage characteristic | Controlled, isolated DC voltage |
| Output 1 rated voltage (DC) | 24 V |
| Output voltage adjustable | No |
| Parameter | Value |
|---|---|
| Supplied active power (typ.) | 84 W |
| Efficiency | 84 % |
| Power supply network type | 1-phase AC |
| Maximum | 3.5 mA |
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Protection class | Class I |
| Short-circuit proof output | Yes |
| Short-circuit protection design | Constant current characteristic up to typ. 14 V, electronic shutdown below that, automatic restart |
| Galvanic isolation input/output | Yes |
| Galvanic isolation (SELV / standards) | Safety extra low output voltage Vout according to EN 60950-1 |
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Input terminals | L, N, PE: 1 screw terminal each for 0.5 ... 1.5 mm² single-core/finely stranded |
| Output terminals | L+: 1 screw terminal for 0.5 ... 1 mm²; M: 2 screw terminals for 0.5 ... 1 mm² |
| Parameter | Value |
|---|---|
| Mounting method | Snaps onto DIN rail EN 60715 35x7.5/15, wall mounting |
| Enclosure width | 160 mm |
| Enclosure height | 80 mm |
| Enclosure depth | 62 mm |
| Side-by-side mountable | Yes |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 100 mm |
| Mounting clearance, bottom | 100 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | 0 ... 60 °C; with natural convection |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Climatic class (IEC 60721) | Climate class 3K3, 5 … 95% no condensation |
| Current limitation of inrush current at 25 °C maximum | 33 A |
| Parameter | Value |
|---|---|
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289 |
| CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289 |
| NEC Class 2 | No |
| ATEX approval | No |
| IECEx approval | No |
| UL HazLoc approval | No |
| cCSAus Class I Div 2 (hazardous loc.) | No |
| EAC approval | Yes |
| EMC – emission standard | EN 55022 Class B |
| EMC – immunity standard | EN 61000-6-2 |
| Parameter | Value |
|---|---|
| MTBF at 40 °C | 714 286 h |
| Equipment bridging | Yes |
MPN
6EP1332-1SH31
