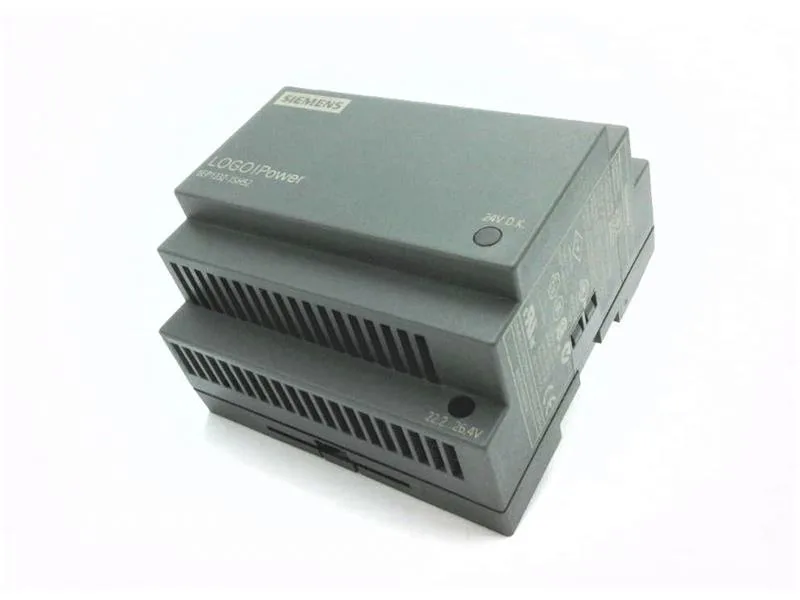

Siemens 6EP1332-1SH52 — DIN Rail Power Supplies

Siemens 6EP1332-1SH52 Power Supply, 4 A, 110-300 VDC, DIN Ra

MPN6EP1332-1SH52

Siemens SITOP power supply, 6EP1332-1SH52, 4 A rated output, 110-300 VDC input, IP20, snaps onto DIN rail EN 60715.

$73.34 – $125.00Ref. price · indicative, final on quote
Siemens 6EP1332-1SH52 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP1332-1SH52 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current4 A
Rated current range0 ... 4 A; +55 ... +70 °C: Derating 2%/K
Output power at rated voltage/current (typ.)12 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableYes
6EP1332-1SH52 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)96 W
Efficiency89 %
Power supply network type1-phase AC or DC
Maximum7.9 A
6EP1332-1SH52 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass II (without protective conductor)
Short-circuit proof outputYes
Short-circuit protection designConstant current characteristic
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
6EP1332-1SH52 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminalsL, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded
Output terminals+, -: 2 screw terminals each for 0.5 ... 2.5 mm²
6EP1332-1SH52 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width90 mm
Enclosure height90 mm
Enclosure depth52.6 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top20 mm
Mounting clearance, bottom20 mm
6EP1332-1SH52 — Environmental
ParameterValue
Operating temperature range-20 ... +70 °C; with natural convection
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Current limitation of inrush current at 25 °C maximum30 A
6EP1332-1SH52 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273
NEC Class 2No
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
Shipbuilding approvalABS, BV, DNV, GL, LRS
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP1332-1SH52 — Reliability & Features
ParameterValue
MTBF at 40 °C3 608 805 h
Equipment bridgingYes
Status indicators / displayGreen LED for output voltage OK
6EP1332-1SH52 — Electrical
ParameterValue
Adjustable Output Voltage22.2 ... 26.4 V

Product details

What this power supply delivers

The Siemens 6EP1332-1SH52 is a SITOP modular power supply delivering a rated output current of 4 A across a 0 to 4 A range, with derating of 2%/K above +55 °C up to +70 °C. Input accepts 110 to 300 VDC, or 100 to 240 VAC at 47-63 Hz. The output is safety extra-low voltage (SELV) per EN 60950-1 and EN 50178, meaning it powers control circuits, PLCs, and sensors without requiring additional isolation downstream.

Snaps onto DIN rail EN 60715 35x7.5/15. Required top clearance is 20 mm, bottom clearance 20 mm, left and right 0 mm — so it fits tight against adjacent devices on the rail.

This is a current-production Siemens SITOP unit. The 4 A rating at 24 VDC (typical) covers small control panels, PLC racks, and sensor busses. The 110-300 VDC input range also makes it usable in DC-fed industrial networks or battery-backed installations.

Frequently asked questions

Where can I buy 6EP1332-1SH52 and get a price?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

What compliance documentation does 6EP1332-1SH52 carry?

UL/cULus-Listed (UL 508, CSA C22.2 No. 107.1), cURus-Recognized (UL 60950, CSA C22.2 No. 60950), CE, EAC, and DNV GL marine approval. Output is SELV per EN 60950-1 and EN 50178.

What is the top clearance required for 6EP1332-1SH52?

20 mm top clearance, 20 mm bottom, 0 mm left and right.
