Siemens 6EP1332-2BA00 — DIN Rail Power Supplies

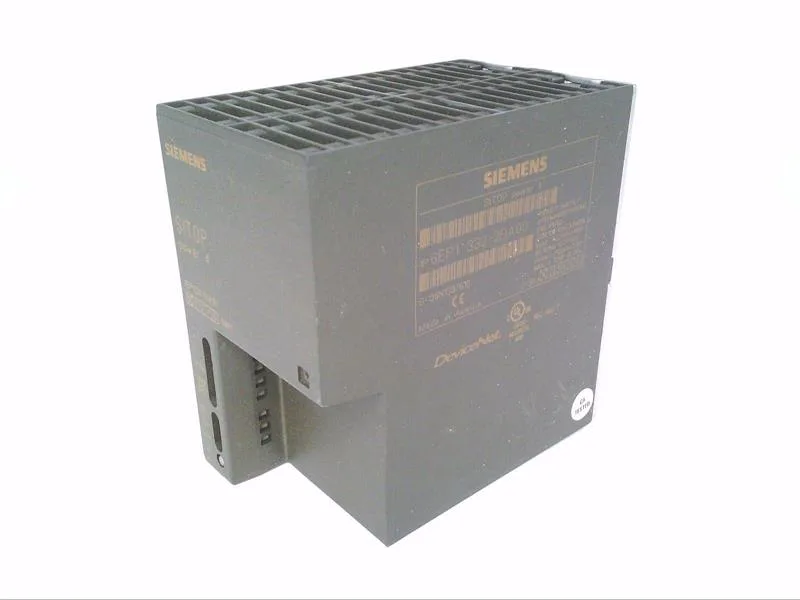

Siemens 6EP1332-2BA00 SITOP PSU100M Power Supply, 3.7 A, 120

MPN6EP1332-2BA00

Siemens SITOP PSU100M, 6EP1332-2BA00, 3.7 A rated output, 120/230 VAC dual input, IP20, DIN-rail mount.

$282.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP1332-2BA00 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current3.7 A
Rated current range0 ... 3.7 A
Output power at rated voltage/current (typ.)22 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableYes
6EP1332-2BA00 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)90 W
Efficiency80 %
Power supply network type1-phase AC
Maximum3.5 mA
6EP1332-2BA00 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass I
Short-circuit proof outputYes
Short-circuit protection designElectronic shutdown, automatic restart
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra low output voltage Vout according to EN 60950-1
6EP1332-2BA00 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminalsL, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
Output terminalsL+: 1 screw terminal for 0.5 ... 2.5 mm²; M: 2 screw terminals for 0.5 ... 2.5 mm²
6EP1332-2BA00 — Mechanical
ParameterValue

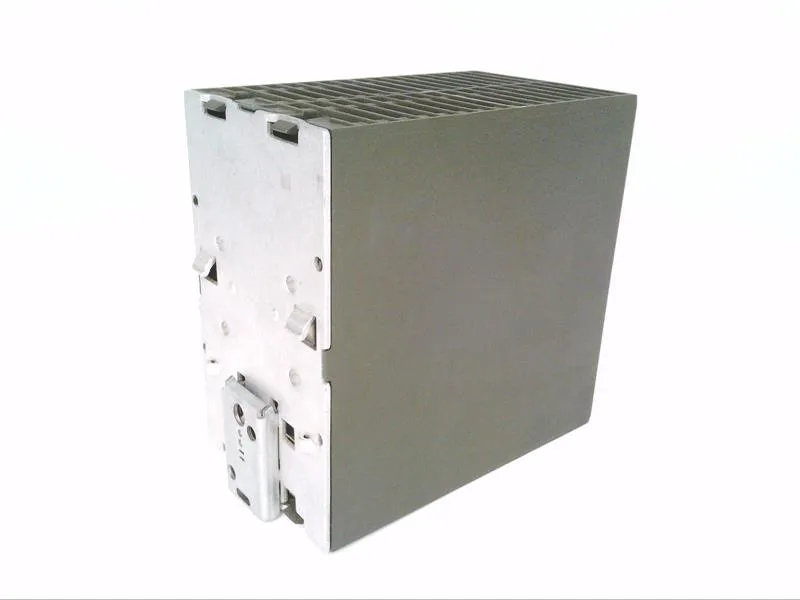

Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width75 mm
Enclosure height125 mm
Enclosure depth125 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top50 mm
Mounting clearance, bottom50 mm
6EP1332-2BA00 — Environmental
ParameterValue
Operating temperature range0 ... 60 °C; with natural convection
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Climatic class (IEC 60721)Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum32 A
6EP1332-2BA00 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289; cURus-Recognized (UL 1950, CSA C22.2 No. 60950), File 151273; UL 1310
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289; cURus-Recognized (UL 1950, CSA C22.2 No. 60950), File 151273; UL 1310
NEC Class 2No
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP1332-2BA00 — Reliability & Features
ParameterValue
Equipment bridgingYes; only permissable at ambient temperature 0 °C to 50 °C
Status indicators / displayGreen LED for 24 V OK
6EP1332-2BA00 — Electrical
ParameterValue
Adjustable Output Voltage22.8 ... 26.4 V

Product details

The Siemens 6EP1332-2BA00 is a SITOP PSU100M power supply rated for 3.7 A continuous output. It accepts dual AC input ranges — 93…132 V (120 V nominal) and 187…264 V (230 V nominal) at 50/60 Hz — so it lands on either a 120 V or 230 V line without rewiring. That dual-range input is the critical path for a panel build: set the wire jumper on the terminal block to match the incoming supply before energizing. Output is SELV per EN 60950-1, galvanically isolated from the input. The internal fuse is rated T 3.15 A/250 V (not user-accessible). For the feeder, Siemens recommends a 6 A miniature circuit breaker, characteristic C.

Snaps onto DIN rail EN 60715 35×7.5/15. Ambient operating range is 0…60 °C with natural convection; no forced air required. Storage and transport range is -40…+85 °C. Dimensions: top and bottom clearance is 50 mm each; left and right clearance is 0 mm — the unit can be mounted flush side-to-side with adjacent devices. That matters when you're packing modules into a tight DIN rail row.

Not NEC Class 2. If your design requires Class 2 power, this unit does not meet that marking.

The 3.7 A rating at 120/230 VAC is the headline spec that confirms fit for a BOM line calling for a 3.7 A SELV supply. The dual input range and DIN-rail footprint mean it drops into a standard control panel without panel modifications.

Frequently asked questions

What approvals does 6EP1332-2BA00 carry?

CE, cULus-Listed (UL 508, CSA C22.2 No. 142), cURus-Recognized (UL 1950, CSA C22.2 No. 60950), UL 1310, and EAC. No ATEX, IECEx, FM, or UL hazloc.

What is the rated output current and input voltage range?

Rated output current is 3.7 A. Input voltage ranges are 93…132 V AC (120 V nominal) and 187…264 V AC (230 V nominal) at 47…63 Hz.

Does 6EP1332-2BA00 meet NEC Class 2?

No, it is not NEC Class 2 listed.

What is the recommended upstream protection?

Siemens recommends a 6 A miniature circuit breaker, characteristic C, in the feeder.
