Siemens 6EP1332-5BA20

MPN6EP1332-5BA20

Active

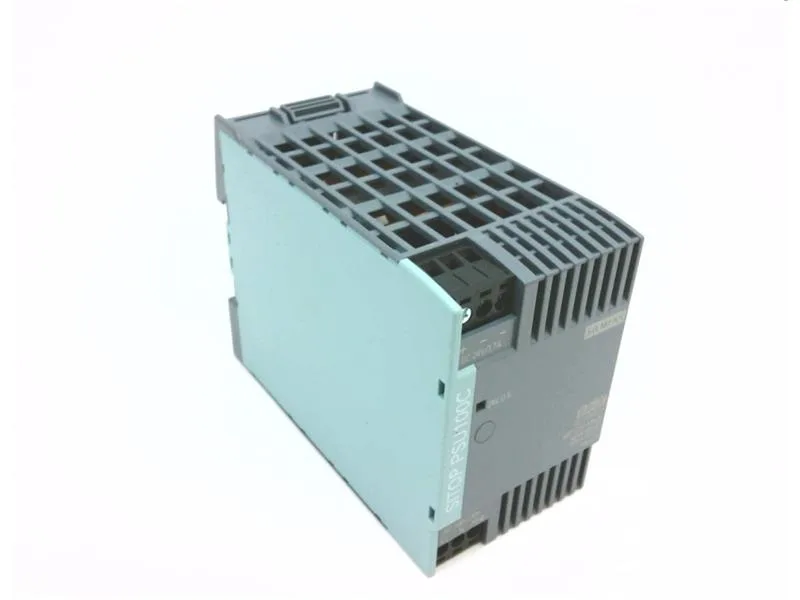

SITOP PSU100C 24 V/3.7 A stabilized power supply input: 120-230 V AC (110-300 V DC) output: 24 V DC/3.7 A restricted output NEC Class 2 *Ex approval no longer available*

$95.25Ref. price · indicative, final on quote

Add to RFQ

Siemens 6EP1332-5BA20 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP1332-5BA20 — Electrical – Output
Parameter	Value
Rated output voltage (DC)	24 V
Rated current	3.7 A
Rated current range	0 ... 3.7 A; +50 ... +70 °C: Derating 3.5%/K; at +70 °C Iout rated 1.1 A
Output power at rated voltage/current (typ.)	14 W
Output voltage characteristic	Controlled, isolated DC voltage
Output 1 rated voltage (DC)	24 V
Output voltage adjustable	No

6EP1332-5BA20 — Electrical – Input & Efficiency
Parameter	Value
Supplied active power (typ.)	89 W
Efficiency	87 %
Power supply network type	1-phase AC or DC
Maximum	3.5 mA

6EP1332-5BA20 — Protection & Isolation
Parameter	Value
Ingress protection (IP) rating	IP20
Protection class	Class I
Short-circuit proof output	Yes
Short-circuit protection design	Electronic shutdown, automatic restart
Galvanic isolation input/output	Yes
Galvanic isolation (SELV / standards)	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178

6EP1332-5BA20 — Connections
Parameter	Value
Electrical connection type	screw-type terminals
Input terminals	L, N, PE: Removable screw terminal, each for 1 x 0.5 ... 2.5 mm²
Output terminals	+: 1 screw terminal for 0.5 ... 2.5 mm²; -: 2 screw terminals for 0.5 ... 2.5 mm²

6EP1332-5BA20 — Mechanical
Parameter	Value
Mounting method	Snaps onto DIN rail EN 60715 35x7.5/15
Enclosure width	52.5 mm
Enclosure height	80 mm
Enclosure depth	100 mm
Side-by-side mountable	Yes
Mounting clearance, left	0 mm
Mounting clearance, right	0 mm
Mounting clearance, top	50 mm
Mounting clearance, bottom	50 mm

6EP1332-5BA20 — Environmental
Parameter	Value
Operating temperature range	-20 ... +70 °C; with natural convection
Storage temperature range	-40 ... +85 °C
Transport temperature range	-40 ... +85 °C
Climatic class (IEC 60721)	Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum	30 A

6EP1332-5BA20 — Approvals & EMC
Parameter	Value
CE marking	Yes
UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310)
CSA approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310)
NEC Class 2	Yes
ATEX approval	No
IECEx approval	No
UL HazLoc approval	No
cCSAus Class I Div 2 (hazardous loc.)	No
EAC approval	Yes
Shipbuilding approval	ABS, DNV GL
EMC – emission standard	EN 55022 Class B
EMC – immunity standard	EN 61000-6-2
