Siemens 6EP1334-3BA00-8AB0
MPN6EP1334-3BA00-8AB0
Obsolete

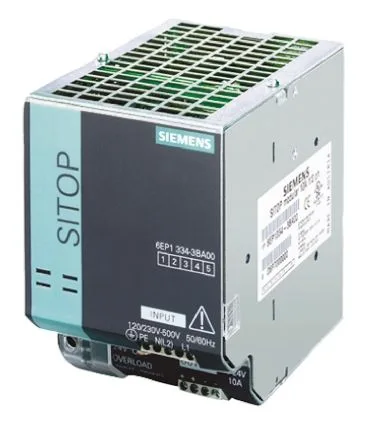

SITOP PSU200M plus 10 A Stabilized power supply input: AC 120-230/230-500 V output: DC 24 V/10 A Option for with protective varnish
$706.45Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical – Output
| Parameter | Value |
|---|---|
| Output voltage adjustable | Yes |
Electrical – Input & Efficiency
| Parameter | Value |
|---|---|
| Supplied active power (typ.) | 240 W |
| Maximum | 3.5 mA |
Protection & Isolation
| Parameter | Value |
|---|---|
| Short-circuit proof output | Yes |
| Galvanic isolation (SELV / standards) | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
Mechanical
| Parameter | Value |
|---|---|
| Enclosure width | 90 mm |
| Enclosure height | 125 mm |
| Enclosure depth | 125 mm |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 50 mm |
| Mounting clearance, bottom | 50 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +70 °C |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
MPN
6EP1334-3BA00-8AB0
