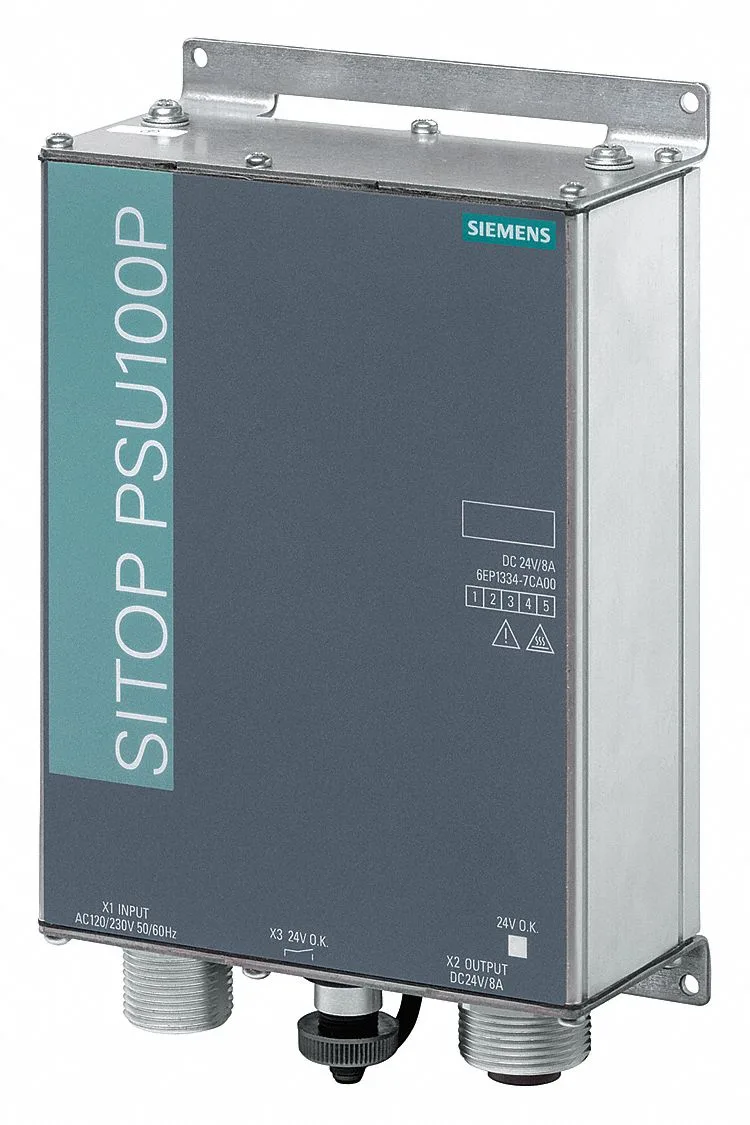

Siemens SITOP 6EP1334-7CA00 power supply, single-phase, 192 W, 24 V DC output, 15 A, IP67, wall-mount, screw terminals, 93.6% efficiency.
| Parameter | Value |
|---|---|
| Fuse protection type | T 6.3 A |
| Type of signal at output | Relay contact (NO contact, rating 30 V AC/ 0.5 A; 30 V DC/1 A) for 24 V OK |
| Type of electrical connection | screw-type terminals |
| Type of the power supply network | 1-phase AC |
| Voltage curve at output | Controlled, isolated DC voltage |
| At rated input voltage 120 | 3.5 A |
| At rated input voltage 230 | 1.52 A |
| Output voltage at DC rated value | 24 V |
| On slow fluctuation of input voltage | 0.1 % |
| Relative overall tolerance of the voltage | 3 % |
| Product function output voltage adjustable | No |
| Behavior of the output voltage when switching on | Overshoot of Vout < 3 % |
| Parameter | Value |
|---|---|
| At rated output voltage for rated value of the output current typical | 13.1 W |
| Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.2 % |
| At Short-Circuit during operation | 50 ms |
| Design of Short-Circuit protection | Electronic shutdown, automatic restart |
| On Short-Circuiting during the Start-Up | 50 ms |
| At Short-Circuit during operation typical | 30 A |
| Property of the output Short-Circuit proof | Yes |
| Display version for overload and short circuit | Red LED flashing for "overload/short-circuit" |
| On Short-Circuiting during the Start-Up typical | 30 A |
| Current limitation of inrush current at 25 °C maximum | 15 A |
| Buffering time for rated value of the output current in the event of power failure minimum | 40 ms |
| Supplied active power typical | 206 W |
| Number of Parallel-Switched equipment resources for increasing the power | 2 |
| Line frequency | 47 ... 63 Hz |
| Depth of the enclosure | 60.5 mm |
| Width of the enclosure | 120 mm |
| Height of the enclosure | 181 mm |
| Product feature of the enclosure housing can be lined up | Yes |
| Removable terminal at input | Yes |
| Removable terminal at output | Yes |
| MTBF at 40 °C | 800 000 h |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1) |
| CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1) |
| EAC approval | Yes |
| ULhazloc approval | No |
| Environmental category according to IEC 60721 | 3K6 without direct sunlight |
| Top | 50 mm |
| ATEX | No |
| Left | 0 mm |
| IECEx | No |
| Right | 0 mm |
| Bottom | 0 mm |
| DNV GL | No |
| 1 at AC | 85 ... 132 V |
| 2 at AC | 170 ... 264 V |
| Typical | 1 mA |
| At input | L1, N, PE: Plug connector 7/8" (counterpart see "Operating Instructions (compact)") |
| At output | +, -: Plug connector 7/8" (counterpart see "Operating Instructions (compact)") |
| NEC class 2 | No |
| Rated range | 0 ... 8 A |
| Rated value | 8 A |
| 1 rated value | 50 Hz |
| 2 rated value | 60 Hz |
| In the feeder | Recommended miniature circuit breaker: from 6 A characteristic C/B |
| Initial value | Automatic range selection |
| During storage | -40 ... +85 °C |
| FM registration | No |
| During operation | -25 ... +60 °C; with natural convection |
| During transport | -40 ... +85 °C |
| Mounting | Wall mounting |
| I2t value maximum | 0.6 A²·s |
| Other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| Galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
| 1 at AC rated value | 120 V |
| 2 at AC rated value | 230 V |
| Protection class IP | IP67, enclosure type 5 indoor |
| Bridging of equipment | Yes; Symmetric wiring required |
| Efficiency in percent | 93.6 % |
| For auxiliary contacts | Alarm signals: M12 plug-in connector 4-pin |
| Response delay maximum | 1.5 s |
| For emitted interference | EN 55022 Class B |
| Nippon kaiji kyokai | No |
| For interference immunity | EN 61000-6-2 |
| cCSAus, class 1, division 2 | No |
| At output 1 at DC rated value | 24 V |
| For mains harmonics limitation | EN 61000-3-2 |
| Overvoltage overload capability | Implemented internally with varistor |
| Design of input wide range input | No |
| Lloyds register of shipping | No |
| On slow fluctuation of ohm loading | 0.2 % |
| Operating resource protection class | Class I |
| Design of the overvoltage protection | < 29 V |
| Display version for normal operation | Green LED: 24 V OK; red LED flashing: "overload/short-circuit" |
| French marine classification society | No |
| Operating condition of the mains buffering | at Vin = 120/230 V |
| Galvanic isolation between input and output | Yes |
| American bureau of shipping europe ltd. | No |
The 6EP1334-7CA00 is a Siemens SITOP power supply rated 192 W output at 24 V DC, delivering up to 15 A from a single-phase AC input (85...132 V or 170...264 V). It carries an IP67 / enclosure type 5 indoor rating, wall-mounts with screw terminals, and achieves 93.6% efficiency with EN 55022 Class B emissions.
