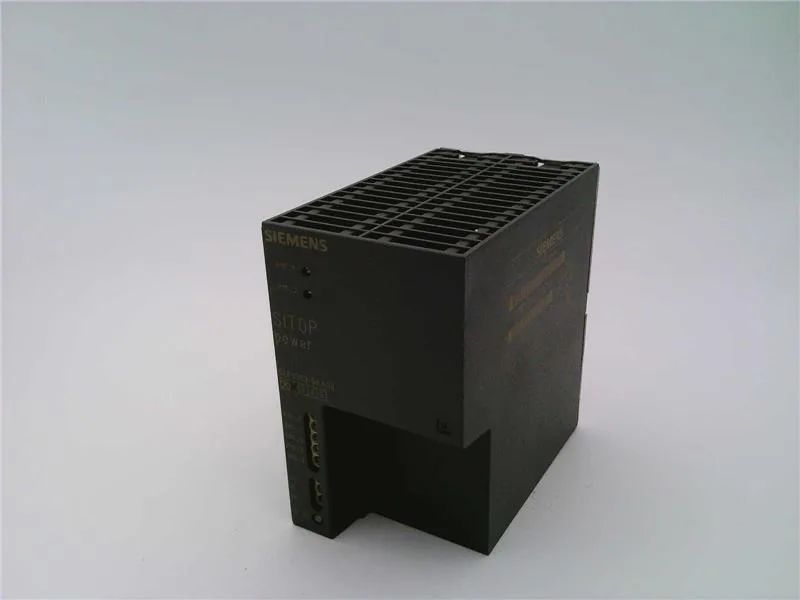

Siemens 6EP1353-0AA00
MPN6EP1353-0AA00
********* spare part ********** SITOP power 15 V dual output stabilized power supply input: 120-230 V AC output: 2X 15 V DC/3.5 A
$147.32Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Rated output voltage (DC) | 15 V |
| Rated current | 3.5 A |
| Rated current range | 0 ... 3.5 A; +45 ... +60 °C: Derating 2%/K |
| Output power at rated voltage/current (typ.) | 27 W |
| Output voltage characteristic | Controlled, isolated DC voltage |
| Output 1 rated voltage (DC) | 15 V |
| Output voltage adjustable | Yes |
| Parameter | Value |
|---|---|
| Supplied active power (typ.) | 105 W |
| Efficiency | 80 % |
| Power supply network type | 1-phase AC |
| Maximum | 3.5 mA |
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Protection class | Class I |
| Short-circuit proof output | Yes |
| Short-circuit protection design | Electronic shutdown, automatic restart |
| Galvanic isolation input/output | Yes |
| Galvanic isolation (SELV / standards) | Safety extra low output voltage Vout according to EN 60950-1 |
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Input terminals | L1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded |
| Output terminals | P15_1, GND_1, GND_2: 1 screw terminal each for 0.5 ... 2.5 mm²; P15_2: 2 screw terminals for 0.5 ... 2.5 mm² |
| Parameter | Value |
|---|---|
| Mounting method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| Enclosure width | 75 mm |
| Enclosure height | 125 mm |
| Enclosure depth | 125 mm |
| Side-by-side mountable | Yes |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 100 mm |
| Mounting clearance, bottom | 100 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | 0 ... 60 °C; with natural convection |
| Storage temperature range | -40 ... +70 °C |
| Transport temperature range | -40 ... +70 °C |
| Climatic class (IEC 60721) | Climate class 3K3, 5 … 95% no condensation |
| Current limitation of inrush current at 25 °C maximum | 30 A |
| Parameter | Value |
|---|---|
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E179336 |
| CSA approval | No; - |
| NEC Class 2 | No |
| ATEX approval | No |
| IECEx approval | No |
| UL HazLoc approval | No |
| cCSAus Class I Div 2 (hazardous loc.) | No |
| EAC approval | Yes |
| EMC – emission standard | EN 55011 Class A |
| EMC – immunity standard | EN 61000-6-2 |
| Parameter | Value |
|---|---|
| Equipment bridging | Yes |
| Status indicators / display | Green LED grün for Vout >10 V (summation display) |
| Parameter | Value |
|---|---|
| Adjustable Output Voltage | 14.5 ... 17 V |
MPN
6EP1353-0AA00
