Siemens 6EP1353-2BA00 — DIN Rail Power Supplies

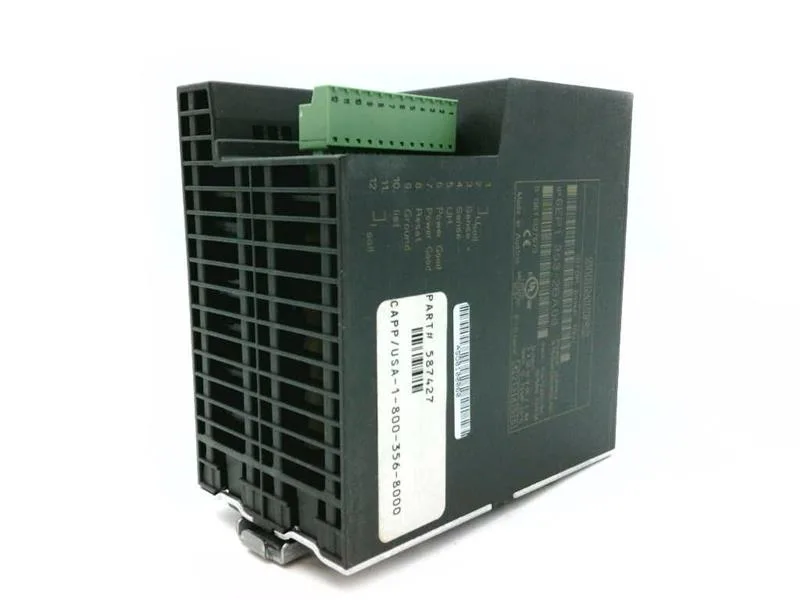

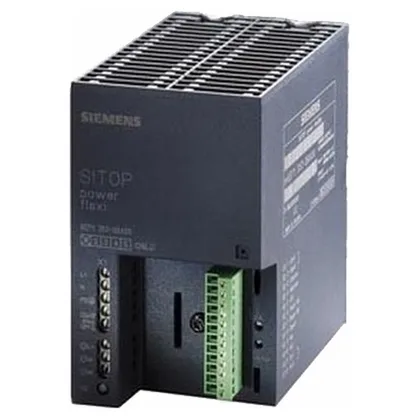

Siemens 6EP1353-2BA00

MPN6EP1353-2BA00

********* spare part ********** SITOP power FLEXI stabilized power supply input: 120/230 V AC output: 3-52 V DC/10 A, 120 W

$209.17Ref. price · indicative, final on quote
Siemens 6EP1353-2BA00 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP1353-2BA00 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current10 A
Rated current range0 ... 10 A; max. 120 W
Output power at rated voltage/current (typ.)23 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableYes
6EP1353-2BA00 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)120 W
Efficiency84 %
Power supply network type1-phase AC
Maximum3.5 mA
6EP1353-2BA00 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass I
Short-circuit proof outputYes
Short-circuit protection designElectronic current limiting (2 ... 10 A) in the range 3 ... 12 V or power limiting (120 W) in the range 12 ... 52 V
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
6EP1353-2BA00 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminalsL1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
Output terminalsL+: 1 screw terminal for 0.5 ... 2.5 mm²; M: 2 screw terminals for 0.5 ... 2.5 mm²
6EP1353-2BA00 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width75 mm
Enclosure height125 mm
Enclosure depth125 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top50 mm
Mounting clearance, bottom50 mm
6EP1353-2BA00 — Environmental
ParameterValue
Operating temperature range0 ... 60 °C; with natural convection
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Climatic class (IEC 60721)Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum32 A
6EP1353-2BA00 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
CSA approvalNo; -
NEC Class 2No
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP1353-2BA00 — Reliability & Features
ParameterValue
MTBF at 40 °C1 196 172 h
Equipment bridgingYes
Status indicators / displayGreen LED for 24 V OK
6EP1353-2BA00 — Electrical
ParameterValue
Adjustable Output Voltage3 ... 52 V
MPN
6EP1353-2BA00
