Siemens 6EP1434-2BA10 — DIN Rail Power Supplies

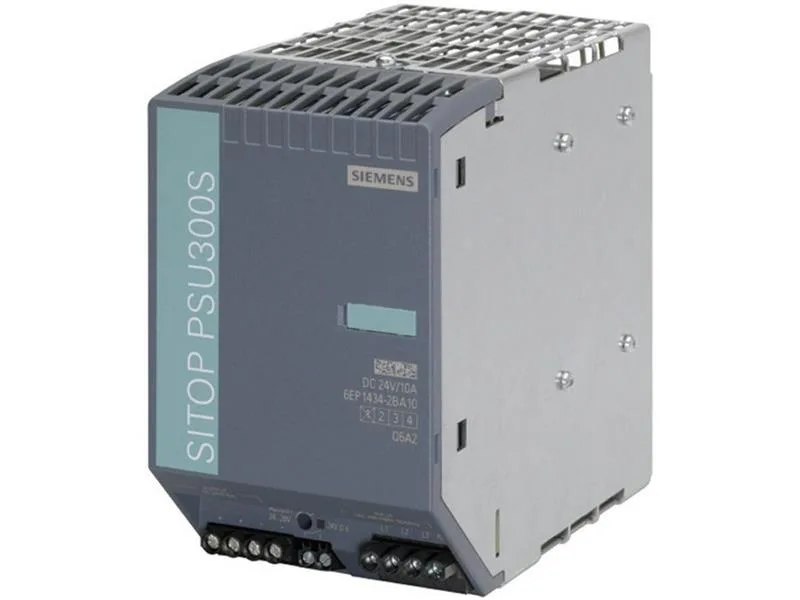

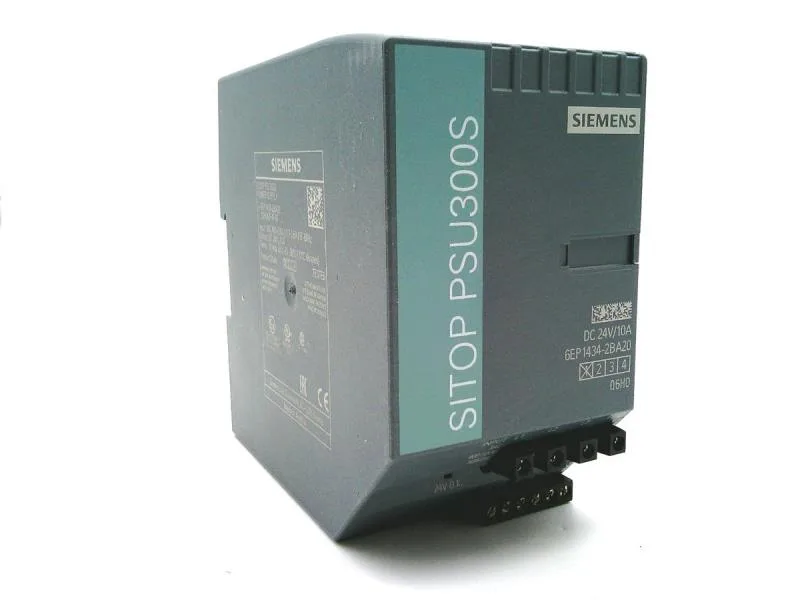

Siemens 6EP1434-2BA10

MPN6EP1434-2BA10

********* spare part ********** SITOP PSU300S 10 A stabilized power supply input: 400-500 V 3 AC output: 24 V / 10 A DC

$373.47Ref. price · indicative, final on quote
Siemens 6EP1434-2BA10 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP1434-2BA10 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current10 A
Rated current range0 ... 10 A; 12 A up to +45 °C
Output power at rated voltage/current (typ.)24 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableYes
6EP1434-2BA10 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)240 W
Efficiency91 %
Power supply network type3-phase AC
Maximum3.2 A
6EP1434-2BA10 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass I
Short-circuit proof outputYes
Short-circuit protection designElectronic shutdown, automatic restart
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
6EP1434-2BA10 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminalsL1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded
Output terminals+, -: 2 screw terminals each for 0.2 ... 4 mm²
6EP1434-2BA10 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width90 mm
Enclosure height145 mm
Enclosure depth150 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top40 mm
Mounting clearance, bottom40 mm
6EP1434-2BA10 — Environmental
ParameterValue
Operating temperature range0 ... 70 °C; with natural convection
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Climatic class (IEC 60721)Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum36 A
6EP1434-2BA10 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
NEC Class 2No
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
Shipbuilding approvalABS, GL
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP1434-2BA10 — Reliability & Features
ParameterValue
MTBF at 40 °C571 429 h
Equipment bridgingYes
Status indicators / displayGreen LED for 24 V OK
6EP1434-2BA10 — Electrical
ParameterValue
Adjustable Output Voltage24 ... 28 V
MPN
6EP1434-2BA10
