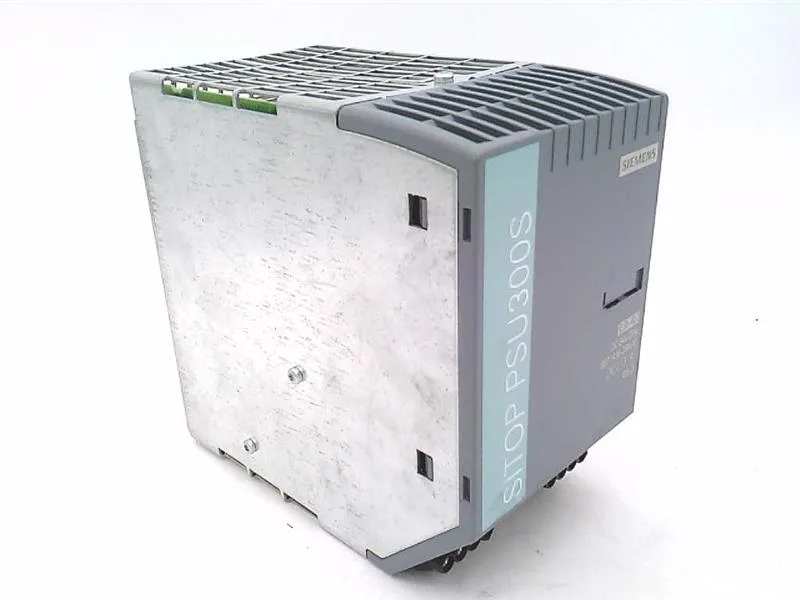

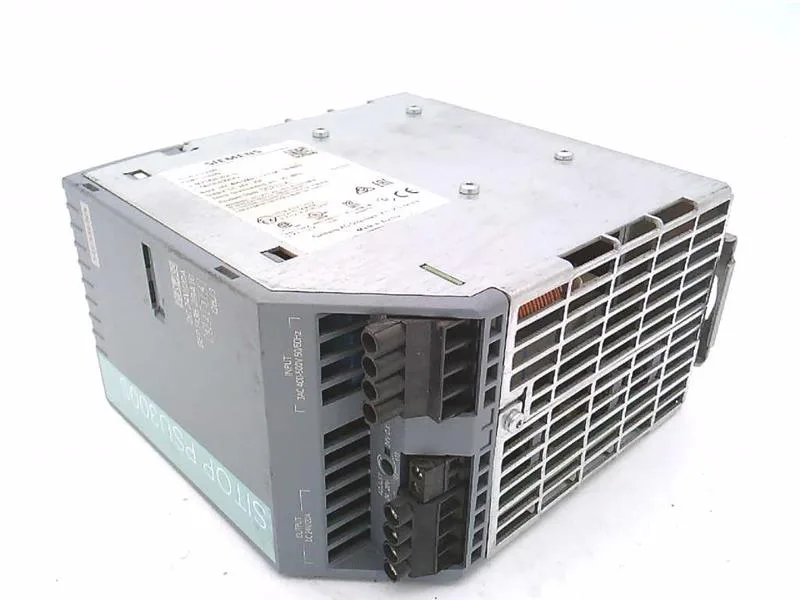

Siemens 6EP1436-2BA10 — DIN Rail Power Supplies

SITOP PSU8200 6EP1436-2BA10, 20 A, 400-500 VAC input

MPN6EP1436-2BA10
Active

SITOP PSU8200, 6EP1436-2BA10, 20 A, 400-500 VAC, 91% efficiency, IP20, DIN-rail mount.

$175.26 – $289.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6EP1436-2BA10 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current20 A
Rated current range0 ... 20 A
Output power at rated voltage/current (typ.)47 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableYes
6EP1436-2BA10 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)480 W
Efficiency91 %
Power supply network type3-phase AC
Maximum3.5 mA
6EP1436-2BA10 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass I
Short-circuit proof outputYes
Short-circuit protection designElectronic shutdown, automatic restart
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178, transformer acc. to EN 61558-2-16
6EP1436-2BA10 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminalsL1, L2, L3, PE: 1 screw terminal each for 0.5 ... 4 mm² single-core/finely stranded
Output terminals+, -: 2 screw terminals each for 0.2 ... 4 mm²
6EP1436-2BA10 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width90 mm
Enclosure height145 mm
Enclosure depth150 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top40 mm
Mounting clearance, bottom40 mm
6EP1436-2BA10 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C; with natural convection
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Climatic class (IEC 60721)Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum36 A
6EP1436-2BA10 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
NEC Class 2No
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
Shipbuilding approvalABS, DNV GL
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP1436-2BA10 — Reliability & Features
ParameterValue
MTBF at 40 °C500 000 h
Equipment bridgingYes
Status indicators / displayGreen LED for 24 V OK
6EP1436-2BA10 — Electrical
ParameterValue
Adjustable Output Voltage24 ... 28 V

Product details

The 6EP1436-2BA10 is a SITOP PSU8200 power supply rated for 20 A continuous output at 400-500 VAC three-phase input. It delivers 91% efficiency and snaps onto standard DIN rail EN 60715 35x7.5/15 — no drilling, no bracket.

The 20 A output is the full rated current at 25 °C ambient. The I²t maximum of 0.9 A²·s tells you the energy the output can deliver into a short-duration overload — useful when sizing the upstream breaker. The feeder requires a 3-pole miniature circuit breaker 6-16 A characteristic C, or a Siemens 3RV2011-1DA10 set at 3 A (or 3RV2711-1DD10 for UL 489). That means the supply itself doesn't carry branch-circuit protection; you must provide it externally.

cULus-Listed to UL 508 and CSA C22.2 No. 107.1 (file E197259), plus cCSAus to CSA C22.2 No. 60950-1 and UL 60950-1. CE marked, EAC approved, DNV GL marine type-approved. No ATEX or IECEx rating, no UL hazardous location listing — keep it out of classified areas. Galvanic isolation provides SELV output per EN 60950-1 and EN 50178, transformer per EN 61558-2-16.

Frequently asked questions

What approvals does it carry?

cULus (UL 508, CSA C22.2 No. 107.1), cCSAus (CSA C22.2 No. 60950-1, UL 60950-1), CE, EAC, and DNV GL marine type approval.

What input voltage range does it accept?

Rated input is 400-500 VAC three-phase, 47-63 Hz.

Does it require an external breaker?

Yes, the feeder requires a 3-pole miniature circuit breaker 6-16 A characteristic C, or a Siemens 3RV2011-1DA10 (set at 3 A) or 3RV2711-1DD10 (UL 489 listed).
