Siemens 6EP1456-3BA00 — DIN Rail Power Supplies

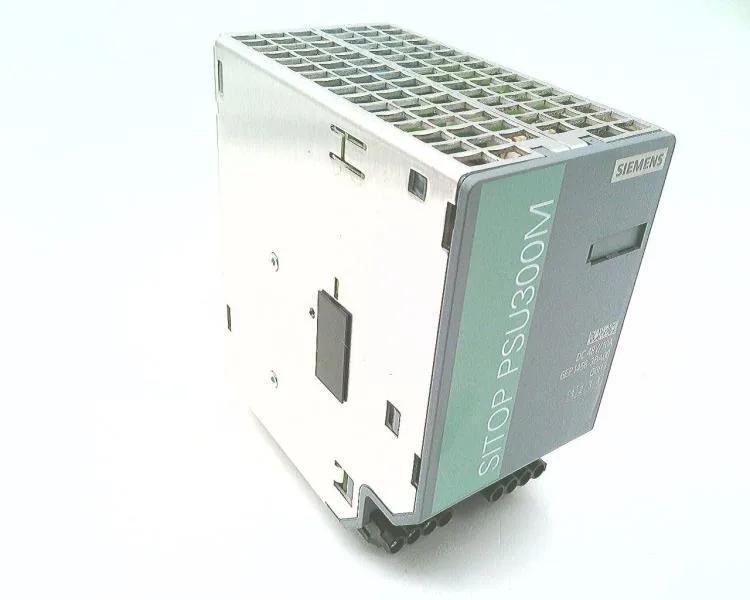

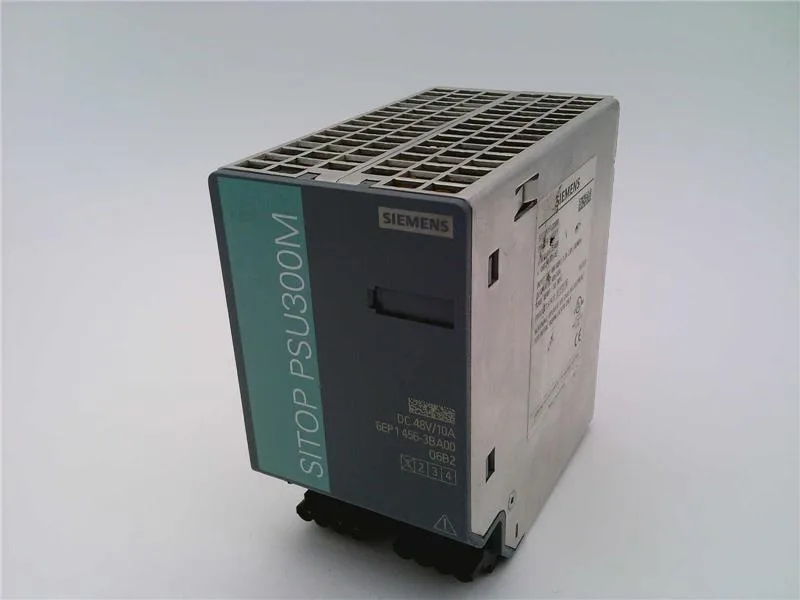

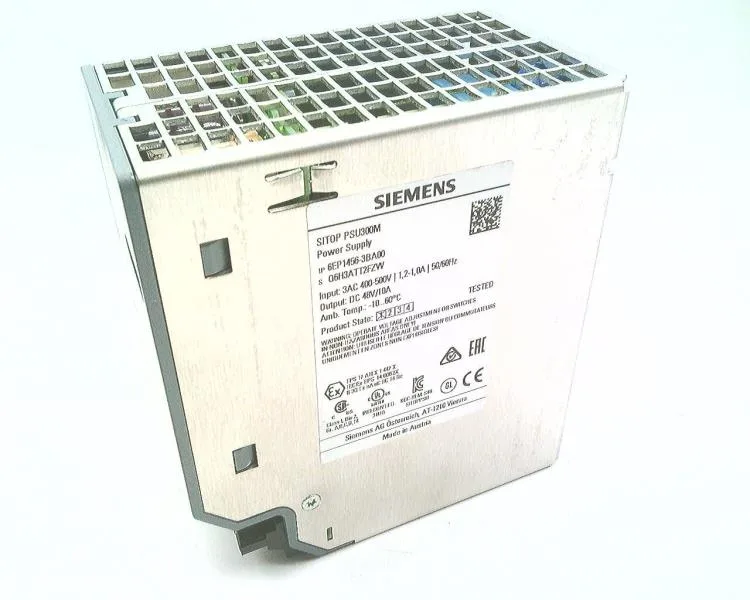

Siemens 6EP1456-3BA00

MPN6EP1456-3BA00

SITOP PSU300M 48V/10A Stabilized power supply input: 3 AC 400-500 V output: 48 V DC/10 A

$1,157.05Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6EP1456-3BA00 — Electrical – Output
ParameterValue
Output voltage adjustableYes
6EP1456-3BA00 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)480 W
Maximum3.5 mA
6EP1456-3BA00 — Protection & Isolation
ParameterValue
Short-circuit proof outputYes
Galvanic isolation (SELV / standards)Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
6EP1456-3BA00 — Mechanical
ParameterValue
Enclosure width70 mm
Enclosure height125 mm
Enclosure depth125 mm
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top50 mm
Mounting clearance, bottom50 mm
6EP1456-3BA00 — Environmental
ParameterValue
Operating temperature range-10 ... +70 °C
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
6EP1456-3BA00 — Reliability & Features
ParameterValue
MTBF at 40 °C664 995 h
MPN
6EP1456-3BA00
