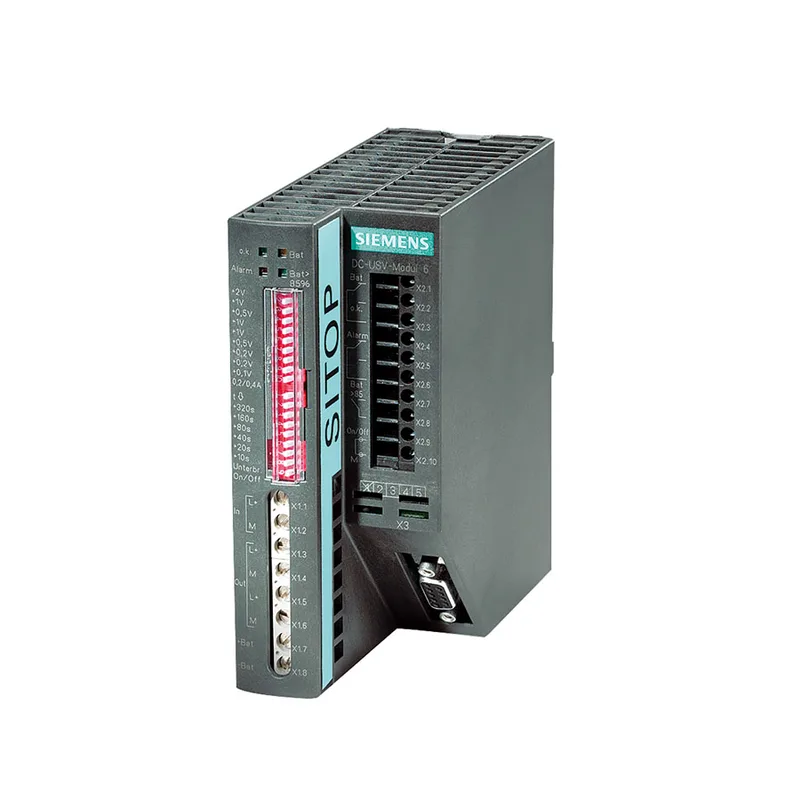

Siemens SITOP DC UPS 6EP1931-2EC42 standby UPS module, 360 W buffering power, USB port, 24 V DC input, IP20, DIN rail mount, metal housing.
| Parameter | Value |
|---|---|
| Rated current | 15 A |
| Output power at rated voltage/current (typ.) | 14 W |
| Parameter | Value |
|---|---|
| Supplied active power (typ.) | 360 W |
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Protection class | Class III |
| Short-circuit proof output | Yes |
| Galvanic isolation input/output | No |
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Input terminals | 24 V DC: 2 screw terminals for 1 ... 4 mm²/17 ... 11 AWG |
| Output terminals | 24 V DC: 4 screw terminals for 1 ... 4 mm²/17 ... 11 AWG |
| Parameter | Value |
|---|---|
| Mounting method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| Enclosure width | 50 mm |
| Enclosure height | 125 mm |
| Enclosure depth | 125 mm |
| Side-by-side mountable | Yes |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 50 mm |
| Mounting clearance, bottom | 50 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C; with natural convection |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Climatic class (IEC 60721) | Climate class 3K3, 5 … 95% no condensation |
| Parameter | Value |
|---|---|
| CE marking | Yes |
| UL approval | Yes |
| EAC approval | Yes |
| Shipbuilding approval | ABS, DNV GL |
| EMC – emission standard | EN 55022 Class B |
| EMC – immunity standard | EN 61000-6-2 |
| Parameter | Value |
|---|---|
| MTBF at 40 °C | 690 131 h |
The 6EP1931-2EC42 is a Siemens SITOP DC UPS module rated for 360 W buffering power, operating as a standby UPS on a 24 V DC supply with a USB interface for monitoring. It snaps onto a DIN rail, carries IP20 protection, and is listed to UL 508 and CSA C22.2 No. 107.1 with CE marking.
