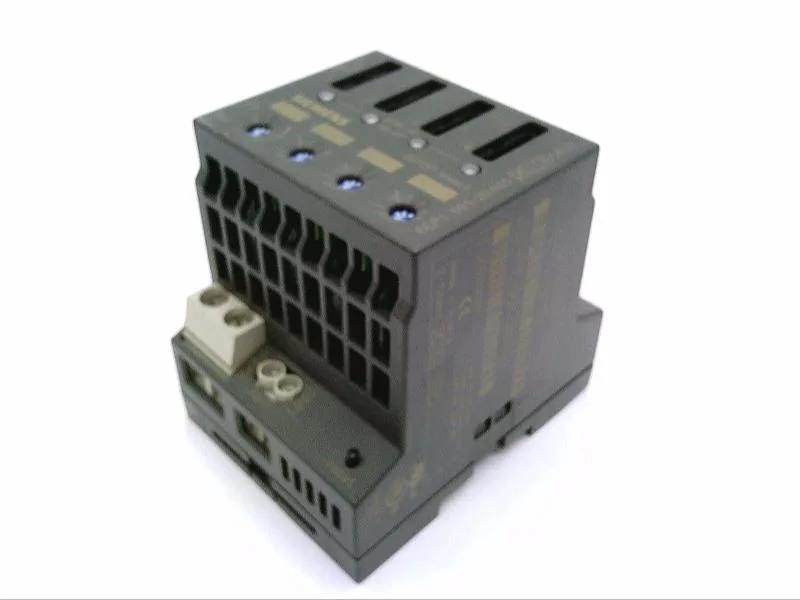

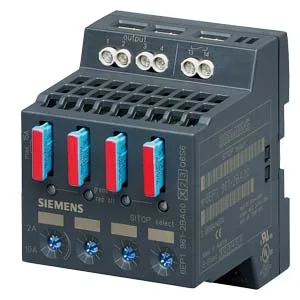

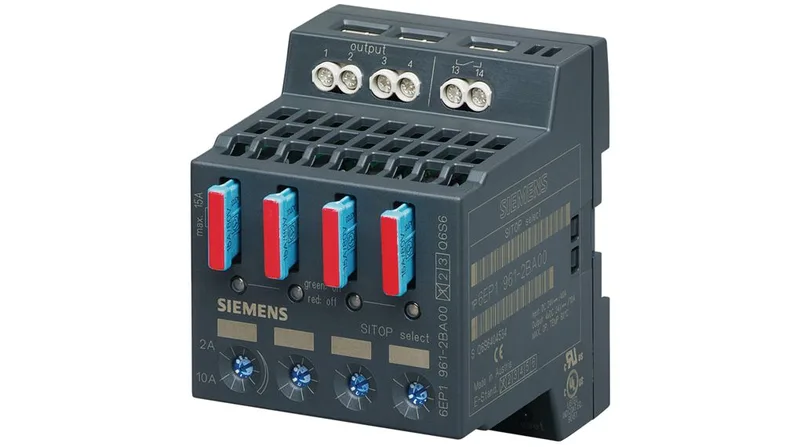

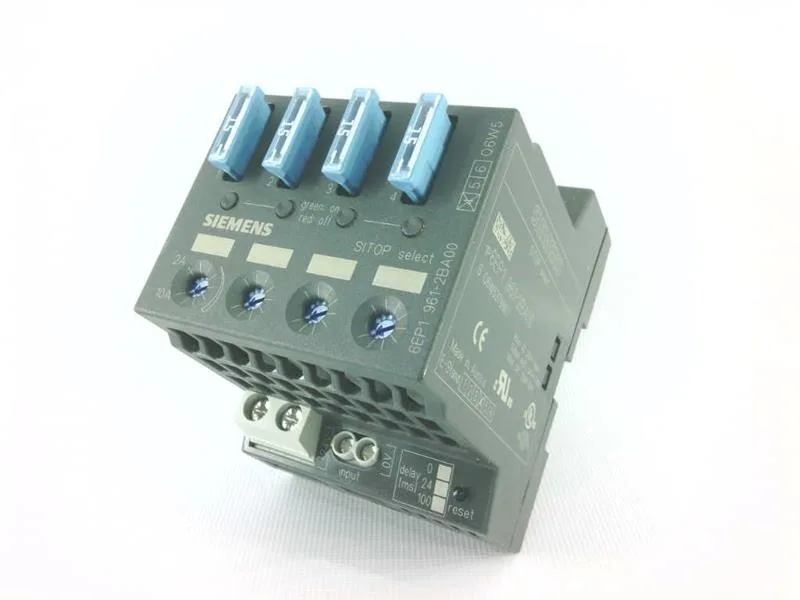

Siemens 6EP1961-2BA00
MPN6EP1961-2BA00
Active
SITOP select Diagnostics module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 2-10 A *Ex approval no longer available*
$87.63 – $137.36Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical – Output
| Parameter | Value |
|---|---|
| Output voltage characteristic | controlled DC voltage |
Electrical – Input & Efficiency
| Parameter | Value |
|---|---|
| Efficiency | 97 % |
| Power supply network type | Controlled DC voltage (SITOP select is not designed for operation with DC UPS module 40 A (6EP1 931-2FC21/-2FC42) |
Protection & Isolation
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Protection class | Class III |
Connections
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Input terminals | +24 V: 2 screw terminals for 0.5 ... 16 mm²; 0 V: 2 screw terminals for 0.5 ... 4 mm² |
| Output terminals | Output 1 ... 4: 1 screw terminal each for 0.22 ... 4 mm² |
Mechanical
| Parameter | Value |
|---|---|
| Mounting method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| Enclosure width | 72 mm |
| Enclosure height | 90 mm |
| Enclosure depth | 90 mm |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 50 mm |
| Mounting clearance, bottom | 50 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | 0 ... 60 °C; with natural convection |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Climatic class (IEC 60721) | climate class 3K3, 5 … 95% without condensation |
Approvals & EMC
| Parameter | Value |
|---|---|
| CE marking | Yes |
| UL approval | Yes; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 No. 107.1) File E197259 |
| ATEX approval | No |
| IECEx approval | No |
| EAC approval | Yes |
| Shipbuilding approval | No |
| EMC – emission standard | EN 55022 Class B |
| EMC – immunity standard | EN 61000-6-2 |
Reliability & Features
| Parameter | Value |
|---|---|
| MTBF at 40 °C | 616 675 h |
| Status indicators / display | Two-color LED per output: green LED for "Output switched through"; red LED for "Output switched off due to overcurrent" |
MPN
6EP1961-2BA00
