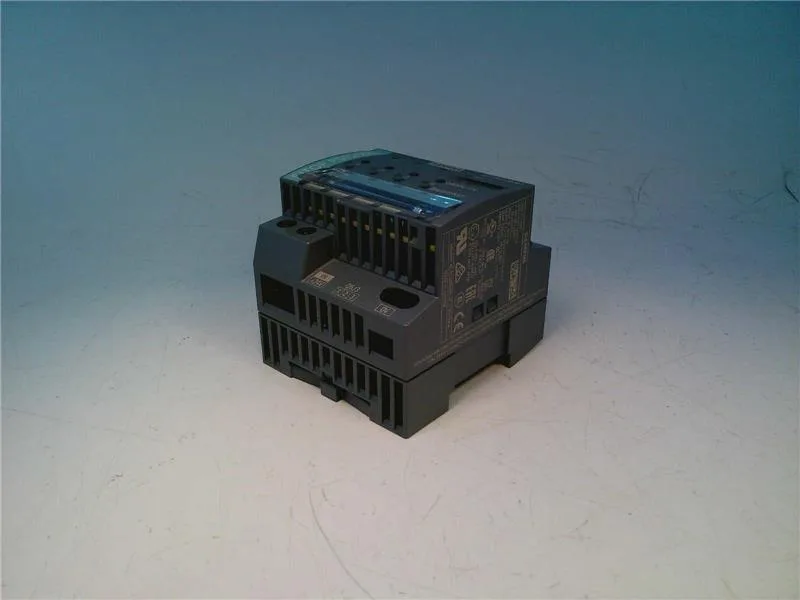

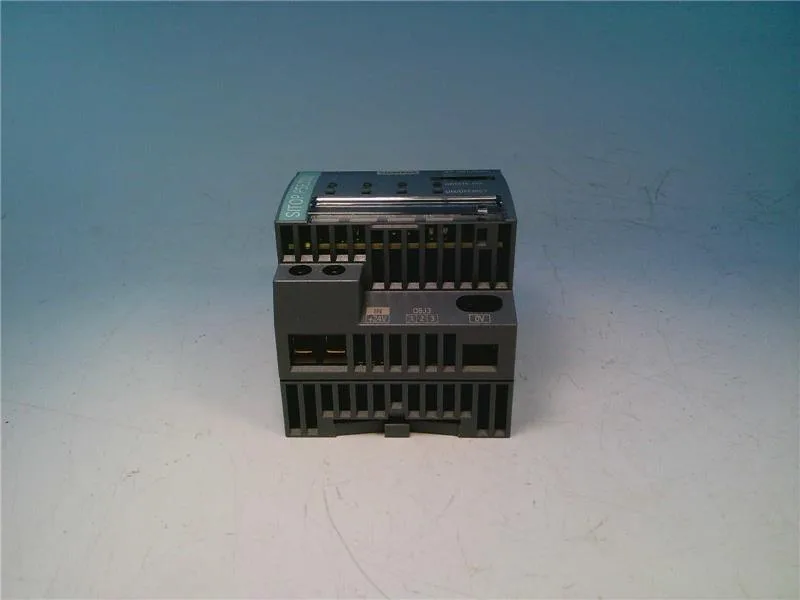

Siemens 6EP1961-2BA61 — DIN Rail Power Supplies

Siemens 6EP1961-2BA61

MPN6EP1961-2BA61
Active

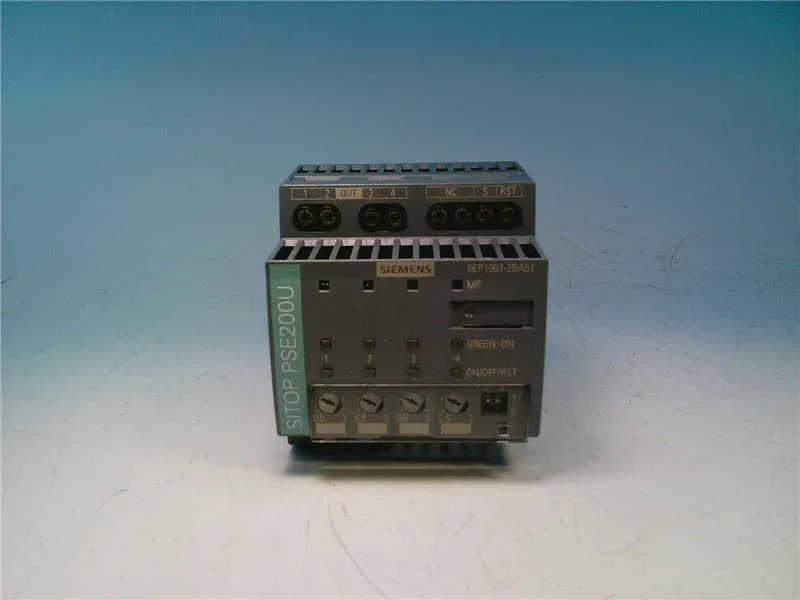

SITOP PSE200U 3 A NEC Class 2 Selectivity module 4-channel input: 24 V DC/12 A output: 24 V/4x 3 A NEC class 2 threshold value adjustable 0.5-3 A with status message for each output *Ex approval no longer available*

$86.36Ref. price · indicative, final on quote
Siemens 6EP1961-2BA61 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP1961-2BA61 — Electrical – Output
ParameterValue
Output voltage characteristiccontrolled DC voltage
6EP1961-2BA61 — Electrical – Input & Efficiency
ParameterValue
Efficiency97 %
Power supply network typeControlled DC voltage
6EP1961-2BA61 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass III
6EP1961-2BA61 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminals+24 V: 2 screw terminals for 0.5 ... 16 mm²; 0 V: 2 screw terminals for 0.5 ... 4 mm²
Output terminalsOutput 1 ... 4: 1 screw terminal each for 0.5 ... 4 mm²
6EP1961-2BA61 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width72 mm
Enclosure height80 mm
Enclosure depth72 mm
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top50 mm
Mounting clearance, bottom50 mm
6EP1961-2BA61 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C; with natural convection
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Climatic class (IEC 60721)climate class 3K3, 5 … 95% without condensation
6EP1961-2BA61 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 No. 107.1) File E197259; NEC Class2 (UL1310)
ATEX approvalNo
IECEx approvalNo
EAC approvalYes
Shipbuilding approvalDNV GL, ABS
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP1961-2BA61 — Reliability & Features
ParameterValue
MTBF at 40 °C755 915 h
Status indicators / displayThree-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"
