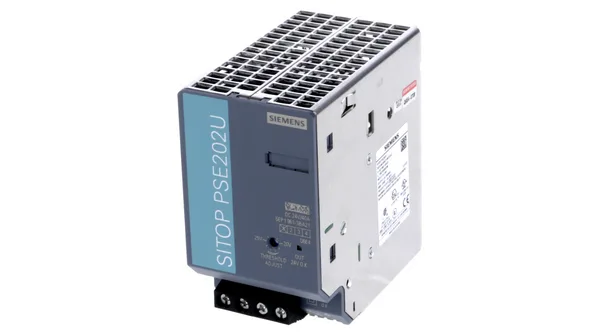

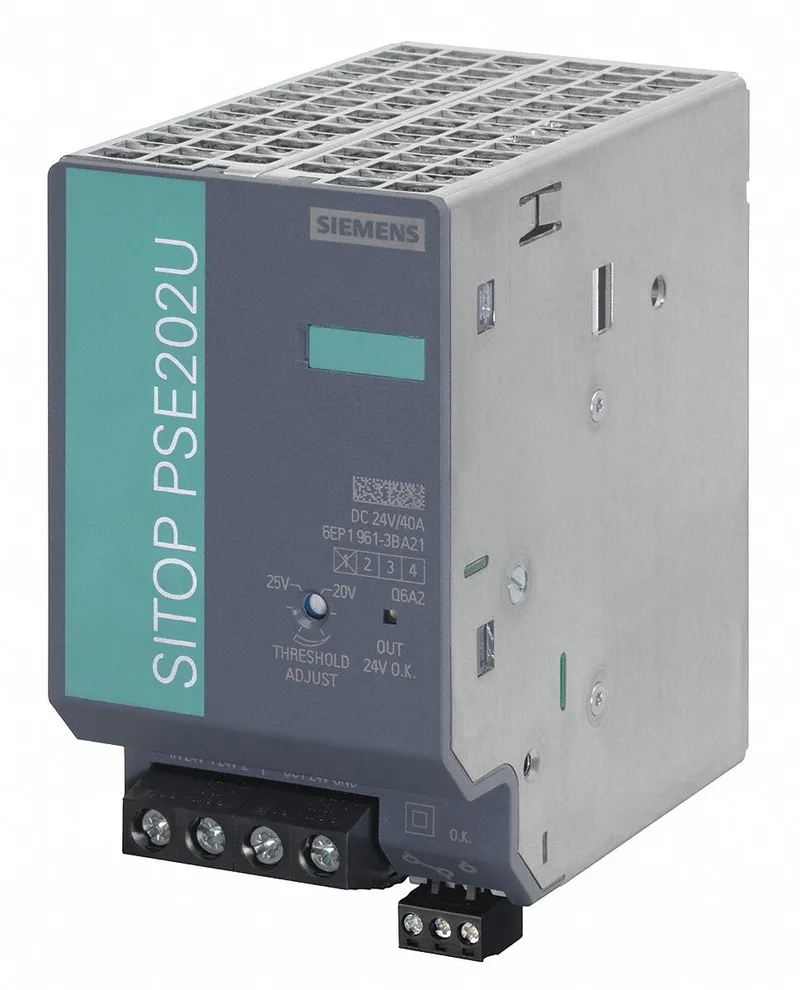

Siemens 6EP1961-3BA21

Siemens 6EP1961-3BA21 DC buffer module, 40 A, DIN rail, 96.6

MPN 6EP1961-3BA21
Active

Siemens SITOP buffer module, 6EP1961-3BA21, 40 A aggregate current, 96.6% efficiency, DIN rail mount, IP20, SELV isolated relay output.

$134.20 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6EP1961-3BA21 specifications
ParameterValue
Voltage24 V
IP ratingIP20
MountingSnaps onto DIN rail EN 60715 35x7.5/15
Depth120 mm
Width70 mm
Height125 mm
Efficiency96.6%

Product details

The Siemens 6EP1961-3BA21 is a DC buffer module that bridges short mains interruptions for 24 V DC loads. It delivers up to 40 A aggregate current from a 24 to 28.8 V DC input, with the output voltage following the input minus roughly 0.5 V. The controlled, isolated DC output is backed by a relay contact (changeover, rated 8 A at 240 V AC or 24 V DC) that signals OK when both input voltages stay above an adjustable threshold of 20 to 25 V. At 96.6% efficiency, the module wastes little heat in the cabinet — important when the 70 × 125 × 120 mm enclosure relies on natural convection over the -25 to +60 °C operating range. Above +60 °C, derate the 40 A aggregate by 3% per Kelvin up to +70 °C.

Snaps onto DIN rail EN 60715 35×7.5/15. The 70 mm width occupies three standard 22.5 mm module positions. Allow 50 mm clearance above and below for convection airflow and wiring access — the top and bottom clearance figures are 50 mm each, with 0 mm left and right clearance needed. Input, output, and ground terminate via one screw terminal each accepting 0.33 to 10 mm² single-core or finely stranded wire. Protection class is IP20 — suitable for dry, enclosed control cabinets only.

Carries CE, cULus-Listed (UL 508, CSA C22.2 No. 107.1, File E197259), EAC, and shipbuilding approvals from ABS and DNV GL. Galvanic isolation is SELV per EN 60950-1. Conducted and radiated emissions meet EN 55022 Class B; immunity complies with EN 61000-6-2. Not ATEX, IECEx, or FM registered, and not NEC Class 2.

Reliability and storage

MTBF at 40 °C is 6,471,654 hours — roughly 739 years continuous, a figure that reflects the semiconductor-grade design. Storage and transport range is -40 to +85 °C. Specifications are stated at rated input voltage and +25 °C ambient unless otherwise noted.

MPN
6EP1961-3BA21
