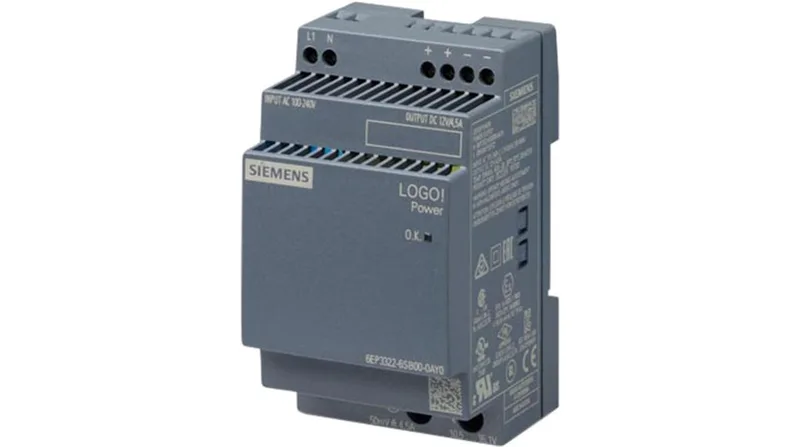

Siemens 6EP3322-6SB00-0AY0
MPN6EP3322-6SB00-0AY0
Active
LOGO!Power 12 V / 4.5 A stabilized power supply input: 100-240 V AC output: 12 V DC / 4.5 A *Ex approval no longer available*
$74.93 – $139.65Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical – Output
| Parameter | Value |
|---|---|
| Rated output voltage (DC) | 12 V |
| Rated current | 4.5 A |
| Rated current range | 0 ... 4.5 A; +55 ... +70 °C: Derating 2%/K |
| Output power at rated voltage/current (typ.) | 8 W |
| Output voltage characteristic | Controlled, isolated DC voltage |
| Output 1 rated voltage (DC) | 12 V |
| Output voltage adjustable | Yes |
Electrical – Input & Efficiency
| Parameter | Value |
|---|---|
| Supplied active power (typ.) | 54 W |
| Efficiency | 87.1 % |
| Power supply network type | 1-phase AC or DC |
| Maximum | 5 A |
Protection & Isolation
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Protection class | Class II (without protective conductor) |
| Short-circuit proof output | Yes |
| Short-circuit protection design | Constant current characteristic |
| Galvanic isolation input/output | Yes |
| Galvanic isolation (SELV / standards) | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
Connections
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Input terminals | L, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| Output terminals | +, -: 1 screw terminal each for 0.5 ... 2.5 mm² |
Mechanical
| Parameter | Value |
|---|---|
| Mounting method | Snaps onto DIN rail EN 60715 35x7.5/15, direct mounting in different mounting positions |
| Enclosure width | 54 mm |
| Enclosure height | 90 mm |
| Enclosure depth | 53 mm |
| Side-by-side mountable | Yes |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 20 mm |
| Mounting clearance, bottom | 20 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +70 °C; with natural convection |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Climatic class (IEC 60721) | Climate class 3K3, 5 … 95% no condensation |
| Current limitation of inrush current at 25 °C maximum | 50 A |
Approvals & EMC
| Parameter | Value |
|---|---|
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310) |
| CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310) |
| NEC Class 2 | No |
| ATEX approval | No |
| IECEx approval | No |
| UL HazLoc approval | No |
| cCSAus Class I Div 2 (hazardous loc.) | No |
| EAC approval | Yes |
| Shipbuilding approval | ABS, BV, DNV GL, LRS |
| EMC – emission standard | EN 55022 Class B |
| EMC – immunity standard | EN 61000-6-2 |
Reliability & Features
| Parameter | Value |
|---|---|
| MTBF at 40 °C | 2 566 680 h |
| Equipment bridging | Yes |
| Status indicators / display | Green LED for output voltage OK |
Electrical
| Parameter | Value |
|---|---|
| Adjustable Output Voltage | 10.5 ... 16.1 V |
MPN
6EP3322-6SB00-0AY0
