Siemens 6EP3333-7SB00-0AX0

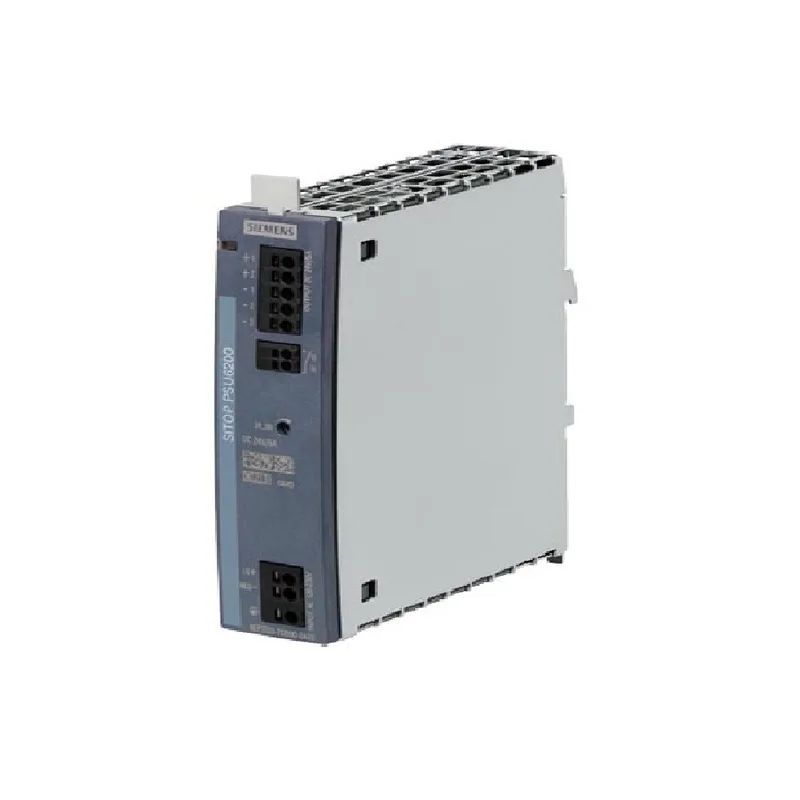

Siemens 6EP3333-7SB00-0AX0 Power Supply, 5 A, DC Input

MPN 6EP3333-7SB00-0AX0
Active

Siemens SITOP power supply, order code 6EP3333-7SB00-0AX0, DC input 99-275 V, single output rated 5 A (6 A up to +45°C), snap-on DIN rail mount, IP20.

$93.98 – $171.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6EP3333-7SB00-0AX0 specifications
ParameterValue
Fuse protection type3.15 A
Voltage24 V
Power120 W
Frequency47 ... 63 Hz
Phases1-phase
IP ratingIP20
MountingSnaps onto DIN rail EN 60715 35x7.5/15
Depth125 mm
Width35 mm
Height135 mm
Efficiency90.2%
I/O channels1

Product details

The Siemens 6EP3333-7SB00-0AX0 is a SITOP modular power supply that takes a DC input — 99 to 275 VDC — and delivers a single regulated output. The headline rating is 5 A, but that's at 25 °C ambient; the supply can deliver 6 A continuously up to +45 °C. Above +60 °C it derates 3 % per Kelvin, so at +70 °C the available current drops to about 3.6 A. That derating curve is the number that governs real panel placement — if the supply sits next to a hot drive or transformer, the 5 A label doesn't hold. Snaps onto standard DIN rail EN 60715 35x7.5/15 — the same footprint as the rest of the SITOP PSU6200 family. Panel integration is straightforward: PushIn terminals at input (/+, L2/-, PE) accept 0.5 to 4 mm², outputs (+1, +2, -1, -2, -3) take 0.5 to 2.5 mm². No tools needed for the wire termination, which speeds up panel wiring.

Approvals and compliance — what the marks certify

cULus-Listed under UL 508 and CSA C22.2 No. 107.1 (File E197259) — that's the industrial control equipment standard, so the supply is accepted for panel builds in North America. Also carries cCSAus to CSA C22.2 No. 60950-1 and UL 60950-1, which is the ITE safety standard. CE and EAC marks cover European and Eurasian markets. No ATEX, no IECEx, no FM — this is a general-purpose indoor supply (IP20), not for hazardous locations.

MPN
6EP3333-7SB00-0AX0
