Siemens 6EP3336-7SB00-3AX0 — DIN Rail Power Supplies

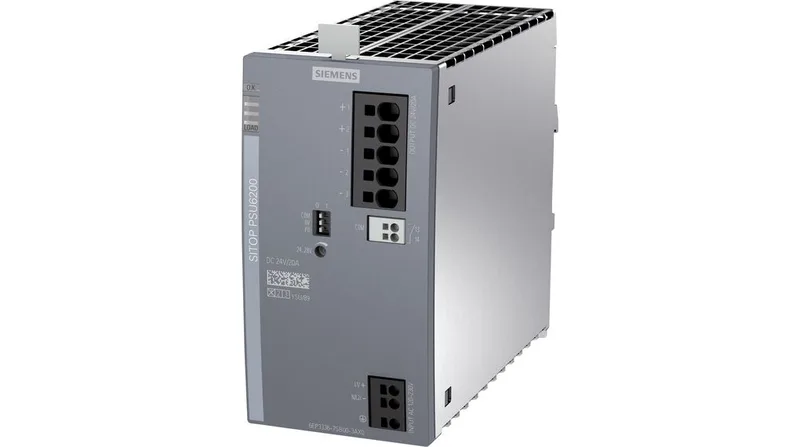

Siemens 6EP3336-7SB00-3AX0 SITOP, 20 A

MPN6EP3336-7SB00-3AX0
Active

Siemens SITOP 6EP3336-7SB00-3AX0 Power Supply, 20 A, 85-275 V DC Input, Push-In Terminals.

$177.80 – $514.00Ref. price · indicative, final on quote
Siemens 6EP3336-7SB00-3AX0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP3336-7SB00-3AX0 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current20 A
Rated current range0 ... 20 A; 24 A up to +45°C; +60 ... +70 °C: Derating 3%/K
Output power at rated voltage/current (typ.)25 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableYes
6EP3336-7SB00-3AX0 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)480 W
Efficiency95.5 %
Power supply network type1-phase AC or DC
Maximum3.5 mA
6EP3336-7SB00-3AX0 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass I
Short-circuit proof outputYes
Short-circuit protection designShutdown and periodic restart attempts
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra low output voltage Vout according to EN 60950-1
6EP3336-7SB00-3AX0 — Connections
ParameterValue
Electrical connection typePush-in terminals
Input terminalsL1/+, L2/N/-, PE:PushIn for 0.5 ... 4 mm² single-core/finely stranded
Output terminals+1, +2, -1, -2, -3: PushIn for 0.5 ... 6 mm²
6EP3336-7SB00-3AX0 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width70 mm
Enclosure height135 mm
Enclosure depth155 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top45 mm
Mounting clearance, bottom45 mm
6EP3336-7SB00-3AX0 — Environmental
ParameterValue
Operating temperature range-30 ... +70 °C; with natural convection a monotonically increasing start-up from -25 °C, safe start-up from -40 °C
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Climatic class (IEC 60721)Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum12 A
6EP3336-7SB00-3AX0 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
NEC Class 2No
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
Shipbuilding approvalABS; in process: DNV
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP3336-7SB00-3AX0 — Reliability & Features
ParameterValue
Equipment bridgingYes; switchable characteristic
Status indicators / displayGreen LED for 24 V OK
6EP3336-7SB00-3AX0 — Electrical
ParameterValue
Adjustable Output Voltage24 ... 28 V

Product details

Mounting clearances and enclosure fit

Required free air clearance: 45 mm above and below the unit; sides can be flush (0 mm). This matters when laying out a sealed cabinet — the 45 mm top gap is not optional for convection cooling.

Input protection and feeder sizing

Siemens recommends a branch circuit breaker from 6 A (characteristic B) to 16 A (characteristic C), or a specific motor-protective circuit breaker 3RV2011-1HA10 (8 A setting) or 3RV2711-1HD10 for UL 489 compliance. The unit itself has a 10 A input fuse protection type.

Compliance and certifications

Carries cULus listing to UL 508 / CSA C22.2 No. 107.1 (File E197259), cCSAus to UL 60950-1 / CSA C22.2 No. 60950-1, plus CE, EAC, and UKCA (likely). ATEX, IECEx, and FM are not covered, so not suitable for hazardous locations. Output is SELV per EN 60950-1.

Frequently asked questions

What is the continuous output current rating?

The rated continuous output current is 20 A. Up to 24 A is permissible at ambient temperatures below +45 °C.

What mounting clearances are required?

Top and bottom clearance: 45 mm each. Left and right sides: 0 mm. Mounts on standard 35 mm DIN rail per EN 60715.
