Siemens 6EP3436-8SB00-0AY0 — DIN Rail Power Supplies

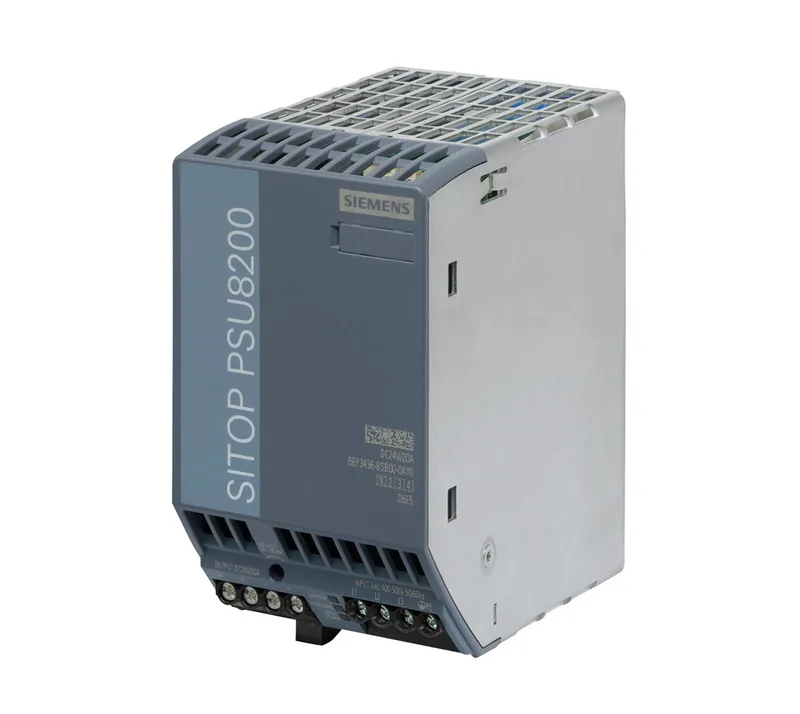

Siemens 6EP3436-8SB00-0AY0 Power Supply, 20 A, 400-500 VAC

MPN6EP3436-8SB00-0AY0
Active

Siemens SITOP power supply, 6EP3436-8SB00-0AY0, 20 A rated, 400-500 VAC input, DIN rail mount, IP20.

$179.07 – $304.00Ref. price · indicative, final on quote
Siemens 6EP3436-8SB00-0AY0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP3436-8SB00-0AY0 — Electrical – Output
ParameterValue
Rated output voltage (DC)24 V
Rated current20 A
Rated current range0 ... 20 A; +60 ... +70 °C: Derating 2%/K
Output power at rated voltage/current (typ.)31 W
Output voltage characteristicControlled, isolated DC voltage
Output 1 rated voltage (DC)24 V
Output voltage adjustableYes
6EP3436-8SB00-0AY0 — Electrical – Input & Efficiency
ParameterValue
Supplied active power (typ.)480 W
Efficiency94 %
Power supply network type3-phase AC
Maximum3.5 mA
6EP3436-8SB00-0AY0 — Protection & Isolation
ParameterValue
Ingress protection (IP) ratingIP20
Protection classClass I
Short-circuit proof outputYes
Short-circuit protection designAlternatively, constant current characteristic approx. 22 A or latching shutdown
Galvanic isolation input/outputYes
Galvanic isolation (SELV / standards)Safety extra low output voltage Vout according to EN 60950-1
6EP3436-8SB00-0AY0 — Connections
ParameterValue
Electrical connection typescrew-type terminals
Input terminalsL1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded
Output terminals+, -: 2 screw terminals each for 0.2 ... 4 mm²
6EP3436-8SB00-0AY0 — Mechanical
ParameterValue
Mounting methodSnaps onto DIN rail EN 60715 35x7.5/15
Enclosure width70 mm
Enclosure height125 mm
Enclosure depth125 mm
Side-by-side mountableYes
Mounting clearance, left0 mm
Mounting clearance, right0 mm
Mounting clearance, top50 mm
Mounting clearance, bottom50 mm
6EP3436-8SB00-0AY0 — Environmental
ParameterValue
Operating temperature range-25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Climatic class (IEC 60721)Climate class 3K3, 5 … 95% no condensation
Current limitation of inrush current at 25 °C maximum16 A
6EP3436-8SB00-0AY0 — Approvals & EMC
ParameterValue
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
NEC Class 2No
ATEX approvalNo
IECEx approvalNo
UL HazLoc approvalNo
cCSAus Class I Div 2 (hazardous loc.)No
EAC approvalYes
Shipbuilding approvalABS, DNV GL
EMC – emission standardEN 55022 Class B
EMC – immunity standardEN 61000-6-2
6EP3436-8SB00-0AY0 — Reliability & Features
ParameterValue
MTBF at 40 °C590 573 h
Equipment bridgingYes; switchable characteristic
Status indicators / displayGreen LED for 24 V OK
6EP3436-8SB00-0AY0 — Electrical
ParameterValue
Adjustable Output Voltage24 ... 28 V

Product details

The Siemens 6EP3436-8SB00-0AY0 is a SITOP modular power supply rated for 20 A output with a three-phase input range of 400 to 500 VAC at 47 to 63 Hz.

Ratings and approvals

The unit carries cULus listing under UL 508 and CSA C22.2 No. 107.1 (File E197259), plus cCSAus to UL/CSA 60950-1. CE, EAC, and C-Tick marks are present; ATEX and IECEx are not covered. IP20 protection means it is intended for dry indoor panels only.

Mounts via snap-on to DIN rail EN 60715 35x7.5/15. Input terminals (, L2, L3, PE) accept 0.2 to 4 mm² single-core or finely stranded wire; output terminals (+, -) are dual screw terminals for the same wire range. A 3-pole miniature circuit breaker (6 to 16 A, characteristic C) or a Siemens 3RV2011-1DA10 (3 A setting) is required in the feeder.

Frequently asked questions

What approvals does this power supply carry?

It carries cULus listing (UL 508, CSA C22.2 No. 107.1), cCSAus (UL/CSA 60950-1), CE, EAC, and C-Tick marks. ATEX and IECEx are not covered.

What is the rated output current and input voltage range?

Rated output current is 20 A. Input voltage range is 400 to 500 VAC three-phase at 47 to 63 Hz.

Does it provide galvanic isolation?

Yes, the output is safety extra-low voltage (SELV) per EN 60950-1 with galvanic isolation from the input.
