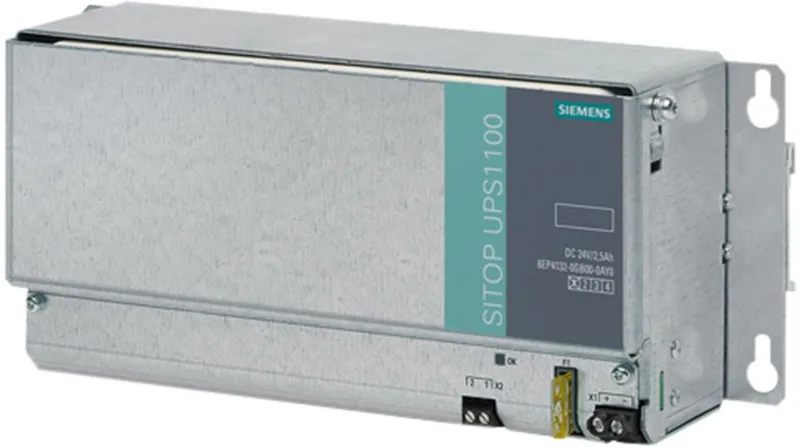

Siemens 6EP4132-0GB00-0AY0
MPN6EP4132-0GB00-0AY0
Active
SITOP UPS1100 battery module with maintenance- free sealed Lead batteries for SITOP DC UPS module 24 V DC 2.5 Ah *Ex approval no longer available*
$265.43Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Rated output voltage (DC) | 24 V |
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Protection class | Class III |
| Short-circuit protection design | Battery fuse 25 A/32 V (solid-state circuitry blade-type fuse + support) |
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Parameter | Value |
|---|---|
| Mounting method | snaps onto DIN rail EN 60715 35x7.5/15 or keyhole mounting for hooking in to M4 screws |
| Enclosure width | 265 mm |
| Enclosure height | 115 mm |
| Enclosure depth | 76 mm |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 15 mm |
| Mounting clearance, bottom | 0 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | -40 ... +60 °C |
| Storage temperature range | -40 ... +60 °C |
| Transport temperature range | -40 ... +60 °C |
| Parameter | Value |
|---|---|
| CE marking | Yes |
| UL approval | Yes |
| CSA approval | No |
| ATEX approval | No |
| cCSAus Class I Div 2 (hazardous loc.) | No |
| EAC approval | Yes |
| Shipbuilding approval | ABS, DNV GL |
| Parameter | Value |
|---|---|
| Status indicators / display | LED green: Battery OK; LED flashing green: Error or warning; OFF: No communication |
MPN
6EP4132-0GB00-0AY0
