Siemens 6EP4135-0GB00-0AY0 — Power Supplies

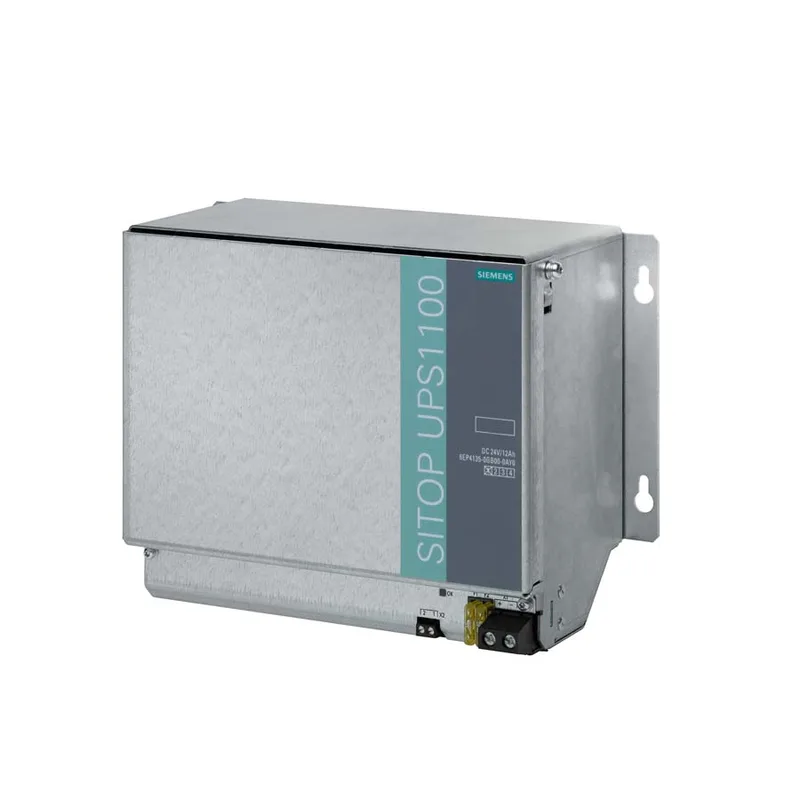

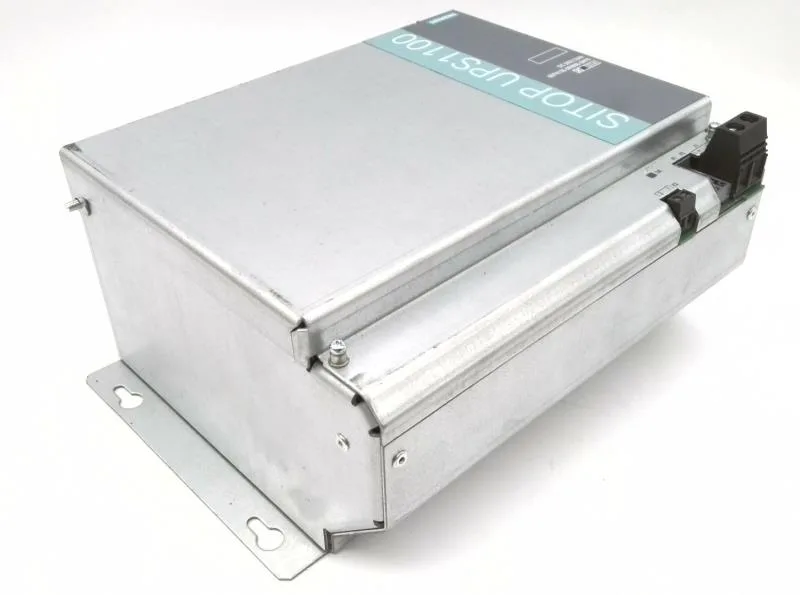

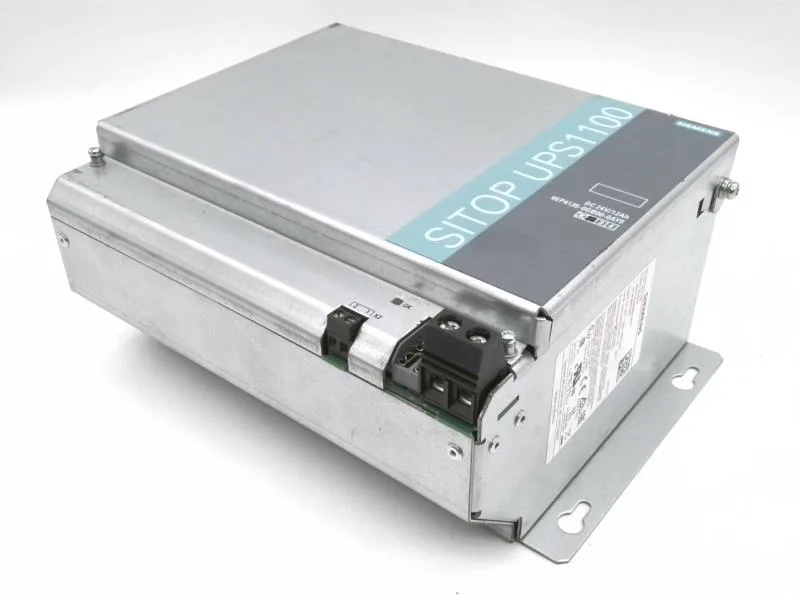

Siemens 6EP4135-0GB00-0AY0 Battery Module, 12 Ah, 15 mm Top

MPN6EP4135-0GB00-0AY0

Siemens SITOP battery module, 6EP4135-0GB00-0AY0, 12 A·h, 12 cells, IP20, UL 1778 recognized.

$240.03 – $267.00Ref. price · indicative, final on quote
Siemens 6EP4135-0GB00-0AY0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6EP4135-0GB00-0AY0 key specifications
ParameterValue
Type of electrical connectionscrew-type terminals
Output voltage at DC rated value24 V
Charging current maximum3 A
Output current rated value40 A
Design of Short-Circuit protectionBattery fuse 2x 25 A/32 V (solid-state circuitry blade-type fuse + support)
For power supply unit1 screw terminal each for 0.5 ... 16 mm² for + BAT and - BAT
Depth of the enclosure110 mm
Width of the enclosure253 mm
Height of the enclosure186 mm
Wall mountingYes
Mounting height201 mm
S7 rail mountingNo
6EP4135-0GB00-0AY0 — By ambient temperature
ParameterValue
At 20 °C typical4 a
At 30 °C typical2 a
At 40 °C typical1 a
At 50 °C typical0.5 a
At 0 °C recommended28 V
At 10 °C recommended27.8 V
At 20 °C recommended27.3 V
At 30 °C recommended26.8 V
At 40 °C recommended26.6 V
At 50 °C recommended26.3 V
At -10 °C recommended28 V

All specifications

6EP4135-0GB00-0AY0 additional specifications
ParameterValue
Installation width253 mm
Standard rail mountingNo
Ambient temperature during storageAlong with the storage and operating temperature, other factors such as the duration of the storage period and the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, and within the temperature range 0 to +20 °C.
CE markingYes
UL approvalYes
CSA approvalNo
EAC approvalYes
As approval for USAcURus-Recognized (UL 1778, CSA C22.2 No. 107.1), File E219627
Shipbuilding approvalABS, DNV GL
Top15 mm
ATEXNo
Left0 mm
Right0 mm
Bottom0 mm
C-TickYes
DNV GLYes
Typicalcapacity falls to 80 % of original capacity (according to EUROBAT)
During storage-20 ... +40 °C
Number of cells12
Battery capacity12 A·h
During operation-15 ... +50 °C
During transport-20 ... +50 °C
Mountingcan be screwed onto flat surface (keyhole mounting for hooking in to M4 screws)
Other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Operating data noteFor storage, mounting and operation of lead-acid batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be at least 50 cm away.
Protection class IPIP20
Product component includedAccessories pack with solid-state circuitry fuse 25 A
cCSAus, class 1, division 2No
Design of the overload protectionValve control
Operating resource protection classClass III
Display version for normal operationLED green: Battery OK; LED flashing green: Error or warning; OFF: No communication
For control circuit and status message1 screw terminal each for 0.14 ... 4 mm²
American bureau of shipping europe ltd.Yes
Relative temporary capacity loss at 20 °C in a month typical3 %

Product details

Battery module for SITOP UPS backup

The Siemens 6EP4135-0GB00-0AY0 is a 12-cell lead-acid battery module rated 12 A·h, designed as the energy storage for SITOP UPS systems. It provides DC backup power during mains loss, sized to hold up a 24 VDC bus for the duration determined by the load draw and the capacity derating curve. Capacity falls to 80 % of original capacity per EUROBAT criteria over life — a standard endurance benchmark for valve-regulated lead-acid batteries in float service. The module delivers 4 A at 20 °C typical, 2 A at 30 °C, 1 A at 40 °C, and 0.5 A at 50 °C, so the actual backup time depends on ambient temperature and discharge rate. Operating range is -15 to +50 °C; storage from -20 to +40 °C. Transport tolerance extends to +50 °C. The IP20 enclosure (253 mm wide, 201 mm high, 110 mm deep) mounts via keyhole slots for M4 screws on a flat surface — no DIN rail or S7 rail option.

Carries CE, cURus (UL 1778, CSA C22.2 No. 107.1), EAC, C-Tick, and shipbuilding approvals from ABS and DNV GL. No ATEX rating — not certified for explosive atmospheres. CSA approval is not listed.

Wiring and installation notes

Connection uses one screw terminal per polarity, accepting 0.5 to 16 mm² for +BAT and -BAT. The recommended float voltage is temperature-compensated: 28 V at 0 °C, stepping down to 26.3 V at 50 °C. DIN/VDE 0510 Part 2 / EN 50272-2 applies for ventilation and clearance — keep ignition sources at least 50 cm away.

Frequently asked questions

What approvals does this battery module carry?

CE, cURus (UL 1778, CSA C22.2 No. 107.1), EAC, C-Tick, ABS, and DNV GL. No ATEX or CSA approval.

What is the backup time at 40 °C?

At 40 °C typical, the module delivers 1 A. Backup time depends on the load; the capacity derating curve per EUROBAT applies.

Can this module be mounted on a DIN rail?

No. It uses keyhole slots for M4 screws onto a flat surface. S7 rail mounting is not supported.
