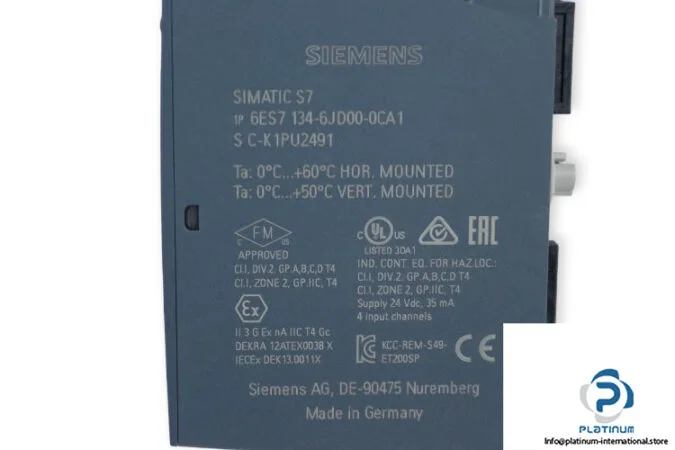

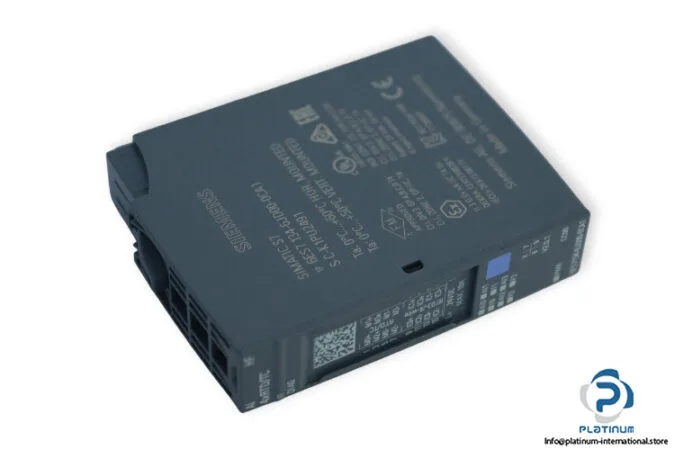

Siemens SIMATIC ET 200SP analog input module, 6ES7 134-6JD00-0CA1, 4 inputs, 24 V DC, 35 mA, 0.75 W.
| Parameter | Value |
|---|---|
| Current input range | 35 mA |
| Parameter | Value |
|---|---|
| Type | Analog input module |
| Model | 6ES7 134-6JD00-0CA1/ 6ES7134-6JD00-0CA1 |
| Weight | 0,04 kg |
| Condition | New |
| Shelf no. | 240122 |
| Dimensions | 15 X 73 X 58 |
| Power loss | 0.75 W |
| No. of input | 4 (Analog) |
| Input current | 10 A |
| Input voltage | 24 V DC |
| Type of product | Analog Input Module |
| Usable base unit | BU type A0, A1 |
| Operating temperature | 0 … 60 °C (Horizontal Mounted)/ 0 … 50 °C (Vertical Mounted) |
The 6ES7 134-6JD00-0CA1/ 6ES7134-6JD00-0CA1: The Siemens 6ES7 134-6JD00-0CA1 is an analog input module for the SIMATIC ET 200SP distributed I/O system, providing 4 analog inputs for process signals like 4-20 mA or 0-10 V. The module mounts on a BaseUnit type A0 or A1, which handles the wiring interface and bus connection.
It requires a BaseUnit type A0 or A1 (sold separately) for mounting and bus connection.
It draws 35 mA from the backplane bus and dissipates 0.75 W as power loss.
