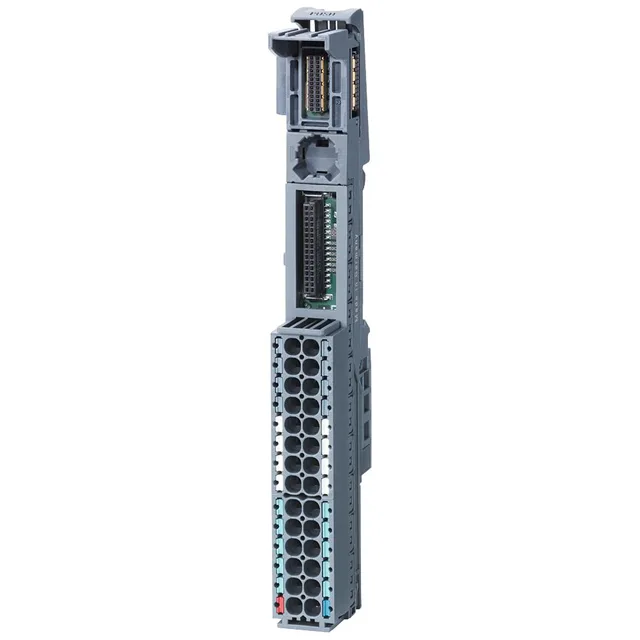

Siemens ET 200SP, Base Unit (Type B1) for explosion-proof applications, 6ES7 193-6BP20-0BB1, 1 slot, 20 x 117 x 35 mm, 10 A/5 A, -30 to 60°C.
| Parameter | Value |
|---|---|
| Type | B1 |
| Parameter | Value |
|---|---|
| Operating temperature range | -30 … 60 °C (Horizontal Installation)/ -30 … 50 °C (Vertical Installation |
| Parameter | Value |
|---|---|
| Model | 6ES7 193-6BP20-0BB1/ 6ES7193-6BP20-0BB1 |
| Weight | 0,06 kg |
| Condition | New |
| Shelf no. | 240122 |
| Dimensions | 20 X 117 X 35 mm |
| No. of slots | 1 |
| Protection type | Explosion Proof |
| Type of product | Base Unit |
| Current carrying capacity | 10 A/ 5 A |
The 6ES7 193-6BP20-0BB1/ 6ES7193-6BP20-0BB1: Operating temperature range depends on mounting orientation. Horizontally installed units are rated for -30 to 60 °C; vertical installation restricts the range to -30 to 50 °C. For panels with constrained airflow or vertical rail mounting, plan for the lower limit.
Type B1 identifies this as an ET 200SP base unit for explosion-proof (Ex) installations. It includes the Ex stamped protection type.
