Compact CPU built for the pit

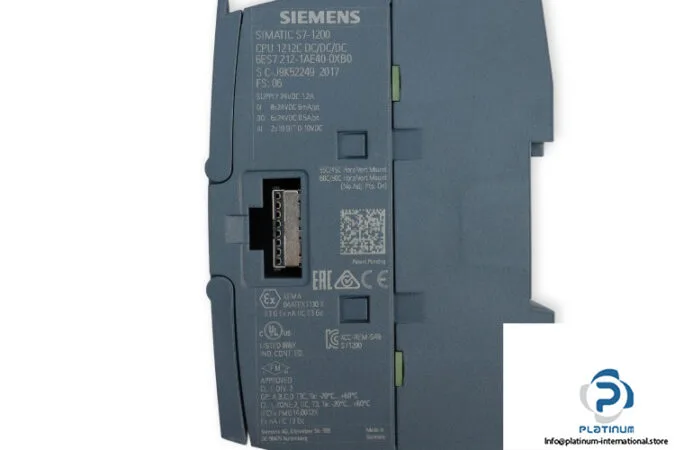

The 6ES7 212-1AE40-0XB0/ 6ES7212-1AE40-0XB0: The Siemens 6ES7 212-1AE40-0XB0 is a compact CPU from the SIMATIC S7-1200 family, running on 24 V DC and packing 8 digital inputs, 6 digital outputs, and 2 analog inputs (0 … 10 V DC, 10-bit resolution). It draws 1.2 A from the backplane and delivers 0.5 A per output slot. The IP20 enclosure keeps dust and debris out of the control cabinet, but the real story is the explosion-proof rating — this unit is certified for hazardous environments where combustible dust or gas could be present. Operating temperature spans -20 … 60 °C, so it shrugs off the heat and cold you see in a mill or pit.
The 10-bit analog inputs (0 … 10 V DC) give you roughly 10 mV resolution — fine for reading 4-20 mA signals via a shunt resistor or direct voltage from a pressure transmitter. The 8 digital inputs are 24 V DC sinking, and the 6 digital outputs are 24 V DC sourcing at 0.5 A each. That output current handles small relays or indicator lamps directly; for solenoid valves or contactors, add an interposing relay. The explosion-proof rating is the key differentiator: this CPU can sit in a Class I/II, Division 2 area without a purge system, as long as the enclosure and wiring meet the code.
