What the 8 output channels actually drive
The 6ES7 222-1BF22-0XA0: This is an 8-channel digital output module for the Siemens S7-22X CPU family, switching 24 VDC loads at up to 0.75 A per channel. The 0.75 A per-channel limit covers most solenoid valves, indicator lamps, and contactor coils in a standard control panel — but it won't drive a motor starter directly. Group the outputs in fours (the isolation groups) and keep the total per-group current under 3 A to stay within the conductor limits. Power draw from the backplane is 21 W, translating to 0.05 A from the 5 V DC bus — a modest load that leaves headroom for additional modules in the rack.

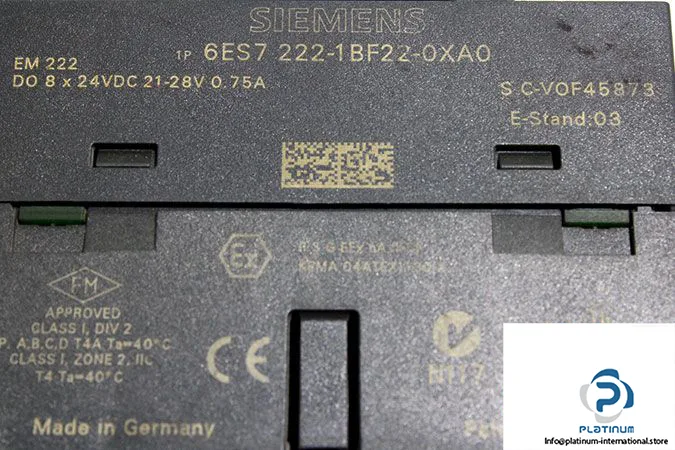

EX certification — where it matters
The module carries EX certification, meaning it is approved for installation in potentially explosive atmospheres when installed per the associated system certificate. This is not a generic IP rating — it signals that the module's internal energy levels and clearance distances meet the standard for intrinsic safety or non-incendive operation in a Zone 2 / Division 2 environment, depending on the overall S7-22X system approval.
