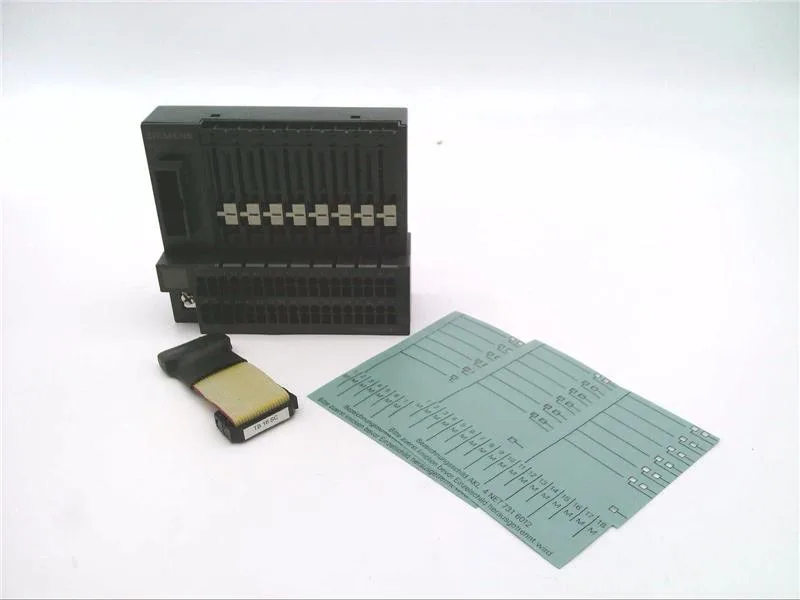

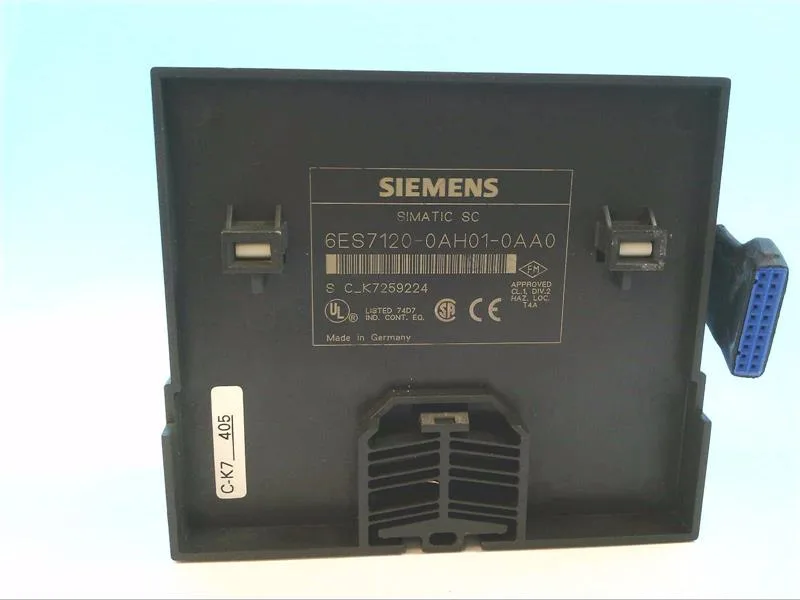

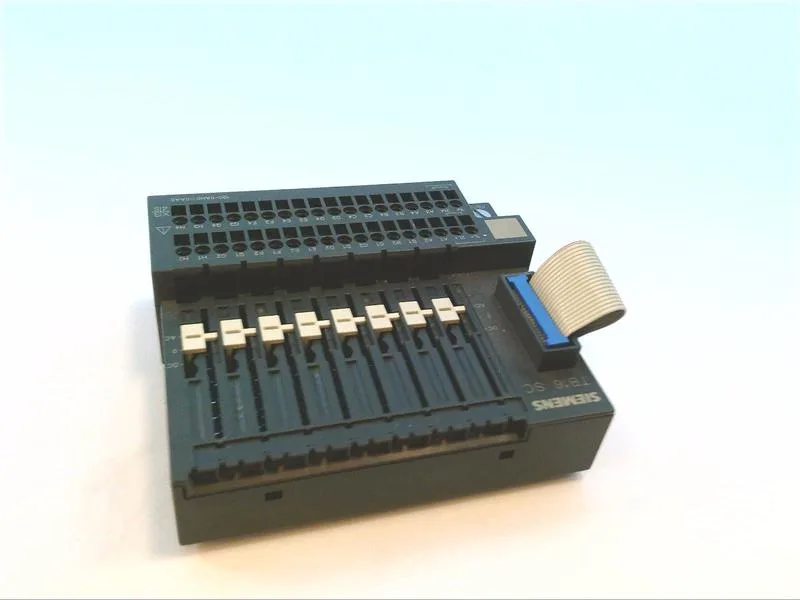

Siemens SIMATIC ET 200SP interface module, 6ES7120-0AH01-0AA0. Obsolete. Max. 8 A supply via 1L+ and 2L+, 8 single-width slots, depth 40.5 mm.
| Parameter | Value |
|---|---|
| Max. | 8 A; Via 1L+ and 2L+; max. 1.5 A per slot when fed in parallel |
| Isolation test voltage | 4 000 V DC |
| Parameter | Value |
|---|---|
| Height | 100 mm |
| Width | 145 mm |
| Depth | 40.5 mm |
| Weight (approx.) | 230 g |
| Parameter | Value |
|---|---|
| Number of single-width slots, max. | 8 |
The 6ES7120-0AH01-0AA0 supplies power to the backplane bus and modules: rated 8 A total via 1L+ and 2L+, with a per-slot limit of 1.5 A when power is fed in parallel, and accommodates up to 8 single-width slots. This unit is now obsolete.
Panel footprint is 145 mm wide, 100 mm high, and 40.5 mm deep, mounting on standard DIN rail. Isolation tested at 4 000 V DC to the backplane.
The base unit supplies up to 8 A via 1L+ and 2L+, with a maximum of 1.5 A per slot when power is fed in parallel.
Depth is 40.5 mm.
No. The 6ES7148-4FA00-0AB0 is a digital input module with a different function, dimensions (65 mm depth), and safety classification (SIL 3). It is not a form-fit-function replacement for a base unit.
