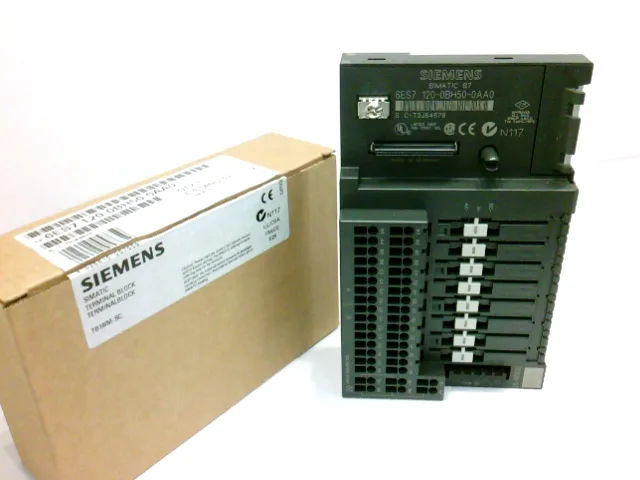

Siemens SIMATIC SC terminal block TB16IM-SC, 6ES7120-0BH50-0AA0, spring-type, 2x 8 A, 4000 V DC isolation.
| Parameter | Value |
|---|---|
| Max. | 2x 8 A (via 1L+ and 2L+) |
| Isolation test voltage | 4 000 V DC |
| Parameter | Value |
|---|---|
| Height | 100 mm |
| Width | 160 mm |
| Depth | 73.6 mm |
| Weight (approx.) | 260 g |
| Parameter | Value |
|---|---|
| Number of single-width slots, max. | 8 |
Siemens 6ES7120-0BH50-0AA0 is a spare-part terminal block TB16IM-SC for the SIMATIC SC interface module (IM-SC). It uses spring-type terminals and accepts two supply inputs, each rated 8 A via 1L+ and 2L+. The block provides 4 000 V DC isolation and fits a footprint of 160 x 100 x 73.6 mm.
The terminal block supplies two inputs at 8 A each via terminals 1L+ and 2L+.
The depth is 73.6 mm, which fits within standard SIMATIC SC enclosure depths.
