The 6ES7122-1FA00-0AA0: This is a spare part for the SIMATIC SC system — a single digital output module rated for 120/230 V AC, 1 A continuous, with zero-crossing switching to reduce contact stress on AC loads. At 10 mm wide it fits tight DIN-rail slots; it takes one slot out of eight in a SC subrack. The output is isolated from the backplane bus, tested at 2500 V DC. Headroom: continuous current bumps to 1.1 A at 40 °C ambient, and surge is 10 A for 2 half-waves. Switching speeds are modest — 50 Hz resistive, 10 Hz inductive (DC-13 / AC-15), 1 Hz lamp loads. No diagnostics or alarms on this module; status is a green LED per channel.

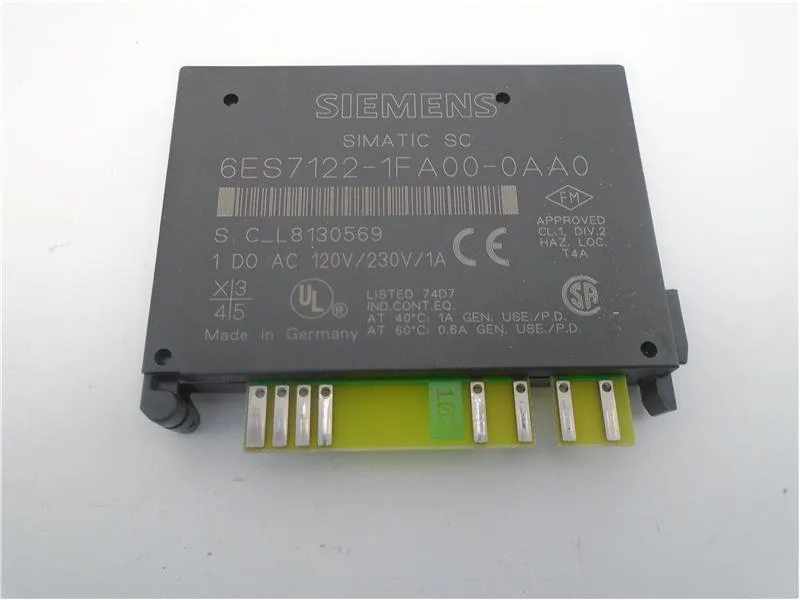

6ES7122-1FA00-0AA0 SIMATIC SC 1 DO AC 115/230 V, 10mm
MPN6ES7122-1FA00-0AA0
Siemens SIMATIC SC, electronic submodule, 1 DO, AC 115/230 V, 10 mm width, 1 A rated, zero-crossing switch.
$121.73Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 1 |
Electrical
| Parameter | Value |
|---|---|
| Output current, resistive load, max. | 50 Hz |
| Output current at signal "1" (rated) | 1 A |
| Output voltage at signal "1" (min.) | L+ (-1 V) |
| Residual current at signal "0", max. | 3 mA |
| Power dissipation (typ.) | 0.7 W |
| Isolation between channels and backplane bus | Yes |
| Isolation test voltage | 2500 V DC |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | No |
| Diagnostics function | No |
| Redundant load control | Yes |
| Output can drive a digital input | Yes; Only with additional load |
Performance
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 20 ms |
| Output switching delay 1 to 0, max. | 20 ms |
| Switching frequency, inductive load, max. | 10 Hz; with inductive load to IEC 60947-5-1, DC-13 / AC-15 |
| Switching frequency, lamp load, max. | 1 Hz |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 10 mm |
| Height | 64 mm |
| Depth | 51 mm |
| Weight (approx.) | 15 g |
Product details
MPN
6ES7122-1FA00-0AA0
