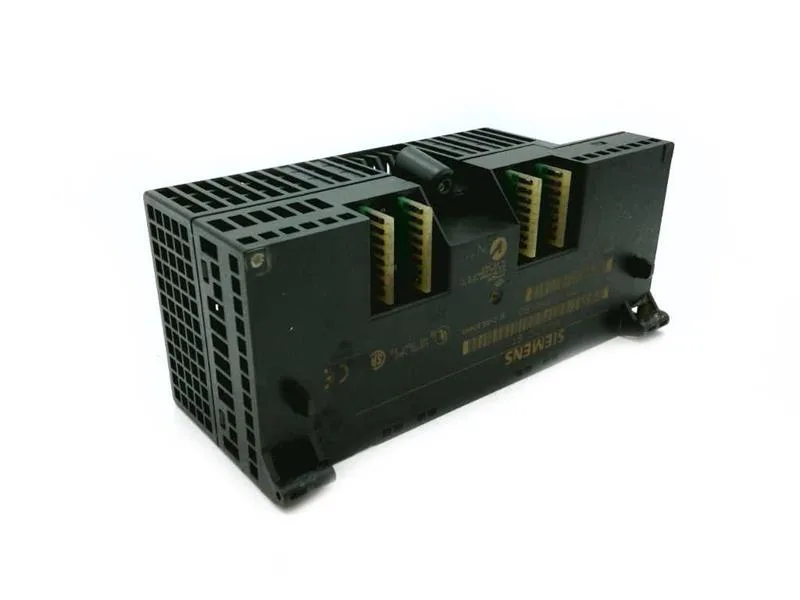

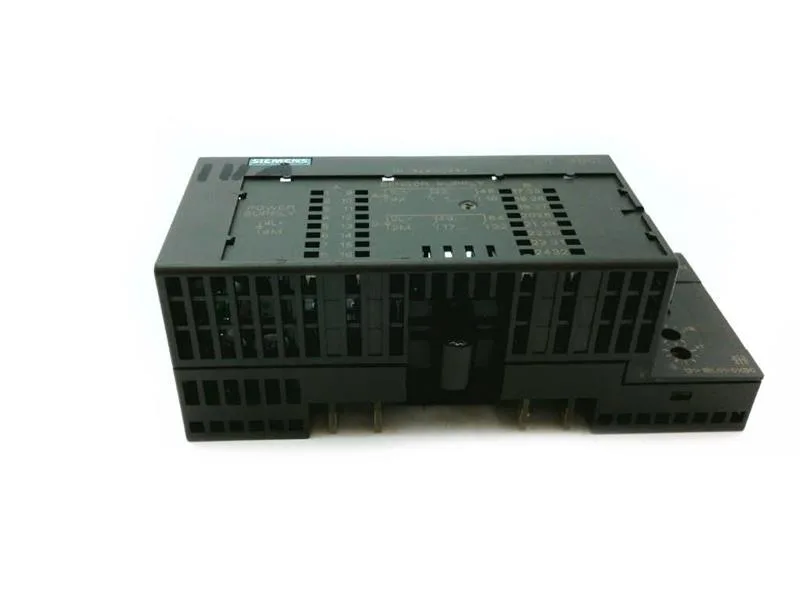

Siemens 6ES7131-1BL01-0XB0 — Digital Input Modules

Siemens 6ES7131-1BL01-0XB0 ET 200S, 32DI, PROFIBUS DP

MPN6ES7131-1BL01-0XB0

Siemens SIMATIC ET 200S, digital input module, 32 inputs, PROFIBUS DP, 24 V DC, IP20.

$469.09Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7131-1BL01-0XB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7131-1BL01-0XB0 — Inputs
Parameter	Value
Number of digital inputs	32
2-wire sensor support	Yes

6ES7131-1BL01-0XB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Input voltage at signal "1"	13 to 30V
Input voltage at signal "0"	-30 to +5 V
Input current at signal "1" (typ.)	5 mA
Input current at signal "0", max. (permissible quiescent current)	1.5 mA
Power loss (typ.)	3.2 W
Cable length, unshielded, max.	600 m
Cable length, shielded, max.	1 000 m

6ES7131-1BL01-0XB0 — Timing
Parameter	Value
Input delay 0 to 1, min.	2 ms
Input delay 1 to 0, min.	2 ms
Input delay 0 to 1, max.	4.5 ms
Input delay 1 to 0, max.	4.5 ms

6ES7131-1BL01-0XB0 — Environmental
Parameter	Value
Max. ambient temperature, horizontal installation	60 °C; 40°C for other mountings

6ES7131-1BL01-0XB0 — Diagnostics & Isolation
Parameter	Value
Diagnostics function	Yes
Isolation between channels	No
Isolation test voltage	500 V DC
Status indicator per channel (green)	Yes

6ES7131-1BL01-0XB0 — Mechanical
Parameter	Value
Depth	60.5 mm
Height	60 mm
Width	145 mm

Product details

The Siemens 6ES7131-1BL01-0XB0 is a 32-channel digital input module for the ET 200S system, communicating over PROFIBUS DP at up to 1.5 Mbit/s. Rated for 24 V DC inputs, it draws 70 mA from the supply L+ and has a typical power loss of 3.2 W. Input signal delays are 2 to 4.5 ms for both 0→1 and 1→0 transitions.

Panel integration

It uses the TB32L terminal block (order separately) and accepts 2-wire sensors. Unshielded cable runs up to 600 m; shielded up to 1 000 m. Freeze capability and diagnostics are supported, with a BF bus fault LED.
