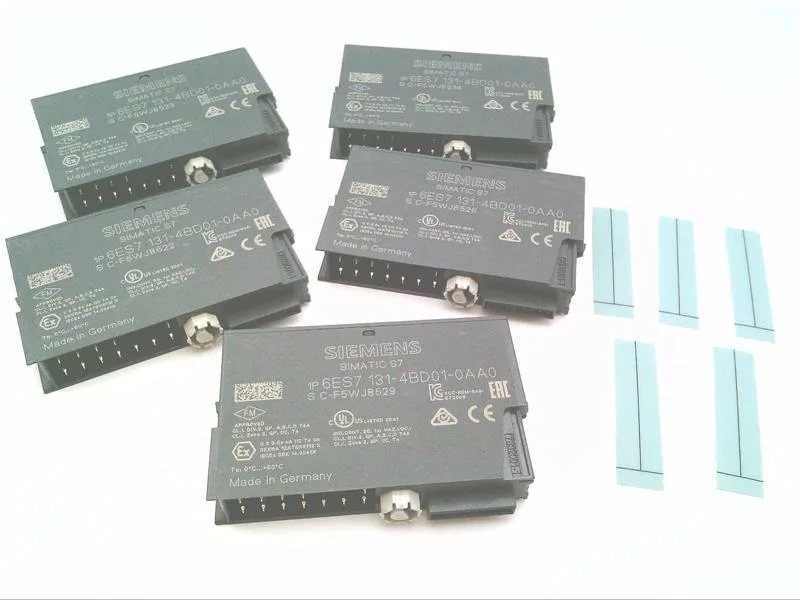

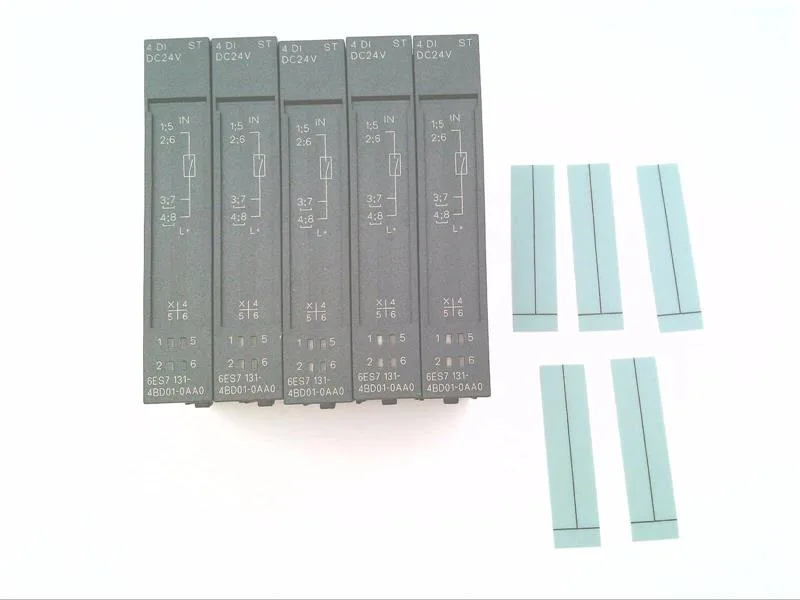

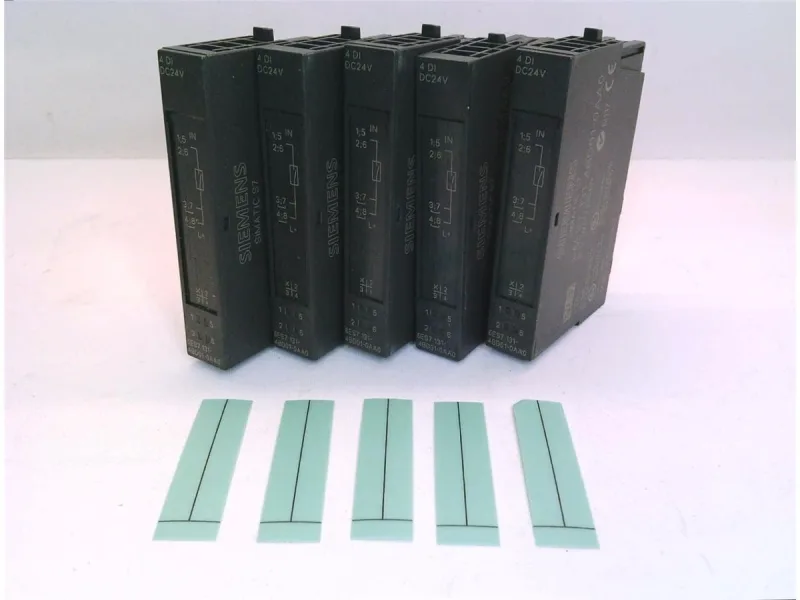

Siemens 6ES7131-4BD01-0AA0
MPN6ES7131-4BD01-0AA0
SIMATIC DP, 5 electronic modules for ET 200S, 4DI standard 24 V DC, 15 mm width, 5 units per packing unit
$33.60Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Digital inputs | 4 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| For signal "1" | +15 to +30 V |
| For signal "0" | -30 to +5 V |
| Current for signal "1" (typ.) | 7 mA; at 24 V |
| Power loss (typ.) | 0.7 W |
| Reverse polarity protection | Yes |
| Isolation test voltage | 500 V DC |
| Isolation: between channels | No |
| Isolation: channels to backplane bus | Yes |
| Max. cable length, shielded | 1 000 m |
| Max. cable length, unshielded | 600 m |
| Parameter | Value |
|---|---|
| Parameterizable | No |
| Diagnostics function | No |
| Group fault indicator (SF, red LED) | No |
| Parameter | Value |
|---|---|
| Height | 81 mm |
| Width | 15 mm |
| Depth | 52 mm |
| Weight (approx.) | 35 g |
MPN
6ES7131-4BD01-0AA0
