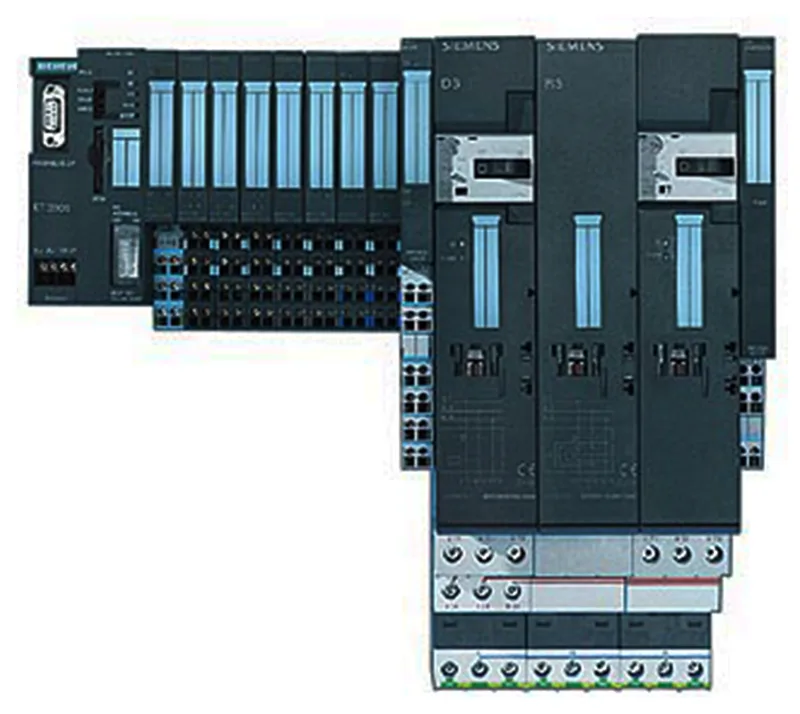

Siemens 6ES7131-4EB00-0AB0 — Digital Input Modules

Siemens 6ES7131-4EB00-0AB0 SIMATIC DP 2DI 120V AC, 15mm

MPN6ES7131-4EB00-0AB0

Siemens SIMATIC DP ET 200S electronic module, 6ES7131-4EB00-0AB0, 2 digital inputs 120 V AC, 15 mm width, 52 mm depth, packed in 5.

$406.00 – $685.14Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7131-4EB00-0AB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7131-4EB00-0AB0 — Inputs
Parameter	Value
Number of digital inputs	2
2-wire sensor support	No

6ES7131-4EB00-0AB0 — Electrical
Parameter	Value
Input voltage at signal "1"	79 to 132 V AC
Input voltage type (AC/DC)	AC
Input voltage at signal "0"	0V AC to 20V AC
Input current at signal "1" (typ.)	3 mA; 3 to 9 mA
Power loss (typ.)	0.5 W
Permissible quiescent current, 2-wire sensor, max.	1 mA
Cable length, unshielded, max.	600 m
Cable length, shielded, max.	1 000 m

6ES7131-4EB00-0AB0 — Timing
Parameter	Value
Input delay 0 to 1, min.	15 ms
Input delay 1 to 0, min.	25 ms

6ES7131-4EB00-0AB0 — Diagnostics & Isolation
Parameter	Value
Diagnostics function	No
Short-circuit (NAMUR sensor)	No
Isolation between channels	No
Isolation between channels and backplane bus	Yes
Isolation test voltage	2 500 V DC
Status indicator per channel (green)	Yes; per channel

6ES7131-4EB00-0AB0 — Mechanical
Parameter	Value
Depth	52 mm
Height	81 mm
Width	15 mm

6ES7131-4EB00-0AB0 — Specifications
Parameter	Value
Rated value (AC)	120 V; 47 ... 63 Hz
Address space per module, max.	1 byte

6ES7131-4EB00-0AB0 — Communication
Parameter	Value
From backplane bus 3.3 V DC, max.	6 mA

Product details

The 6ES7131-4EB00-0AB0: Input voltage is pure AC: 120 V at 47 to 63 Hz. Signal "1" pulls 3 to 9 mA typical, and quiescent current for 2-wire sensors is capped at 1 mA — though this module is not designed for 2-wire sensors. Response time: 15 ms on, 25 ms off, so factor that delay into your scan cycle if you're chasing fast events. Isolation tested at 2 500 V DC. Power loss is only 0.5 W, so it won't push the enclosure thermal budget. Cable runs up to 1 000 m shielded or 600 m unshielded.

Lifecycle is current; ships in a multipack of 5.
