Siemens 6ES7131-4FB00-0AB0 — Digital Input Modules

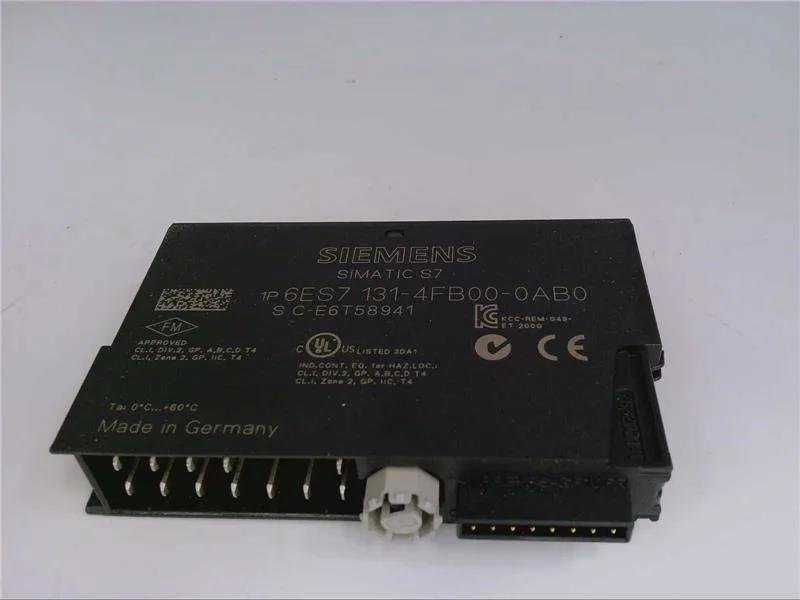

Siemens 6ES7131-4FB00-0AB0 Digital Input Module, 2 DI 230 V

MPN6ES7131-4FB00-0AB0

Siemens SIMATIC DP, 5 electronic modules for ET 200S, 2 DI 230 V AC 15 mm width, 5 units per packing unit.

$281.00Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7131-4FB00-0AB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7131-4FB00-0AB0 — Inputs
Parameter	Value
Number of digital inputs	2
2-wire sensor support	No

6ES7131-4FB00-0AB0 — Electrical
Parameter	Value
Input voltage at signal "1"	164V AC to 264V AC
Input voltage type (AC/DC)	AC
Input voltage at signal "0"	0V AC to 40V AC
Input current at signal "1" (typ.)	5 mA; 5 to 15mA
Power loss (typ.)	0.7 W
Permissible quiescent current, 2-wire sensor, max.	2 mA
Cable length, unshielded, max.	600 m
Cable length, shielded, max.	1 000 m

6ES7131-4FB00-0AB0 — Timing
Parameter	Value
Input delay 0 to 1, min.	15 ms
Input delay 1 to 0, min.	45 ms

6ES7131-4FB00-0AB0 — Diagnostics & Isolation
Parameter	Value
Diagnostics function	No
Short-circuit (NAMUR sensor)	No
Isolation between channels	No
Isolation between channels and backplane bus	Yes
Isolation test voltage	4 000 V DC
Status indicator per channel (green)	Yes; per channel

6ES7131-4FB00-0AB0 — Mechanical
Parameter	Value
Depth	52 mm
Height	81 mm
Width	15 mm

6ES7131-4FB00-0AB0 — Specifications
Parameter	Value
Rated value (AC)	230 V; 47 ... 63 Hz
Address space per module, max.	1 byte

6ES7131-4FB00-0AB0 — Communication
Parameter	Value
From backplane bus 3.3 V DC, max.	6 mA

Product details

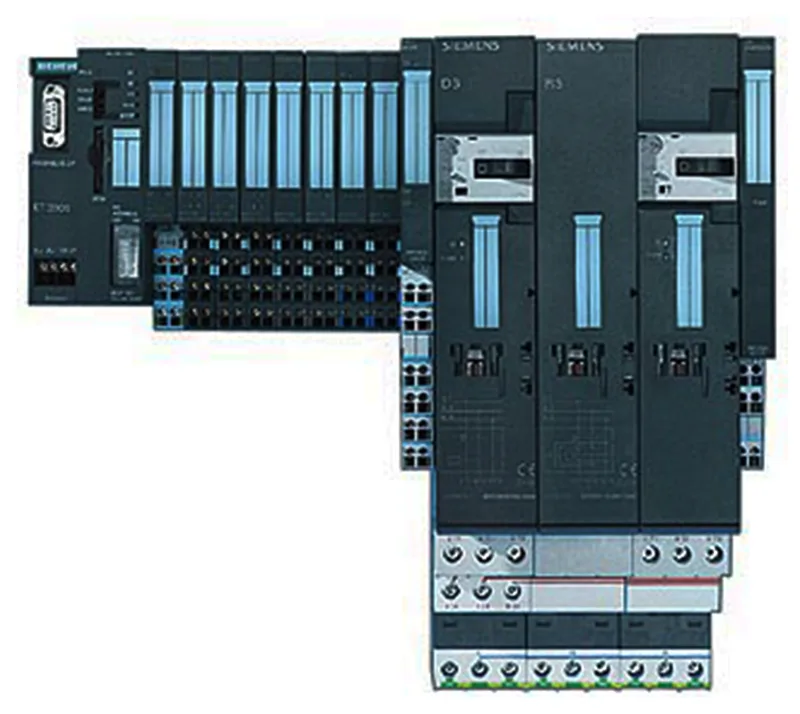

The Siemens 6ES7131-4FB00-0AB0 is a SIMATIC DP electronic module for ET 200S, packing 2 digital inputs rated for 230 V AC (47 to 63 Hz) into a 15 mm wide slice. It's the go-to for sensing AC line signals in a distributed I/O rack — think panel-level monitoring of motor starters, valve position feedback, or any 230 VAC dry contact. The module ships as a 5-unit bundle, so one order code covers a full rack segment.

Isolation and wiring reality

Galvanic isolation tested at 4 000 V DC between channels and backplane bus. No isolation between the two input channels. Maximum shielded cable length 1 000 m, unshielded 600 m. Input draws 5 mA typical at signal "1", range 5 to 15 mA.
