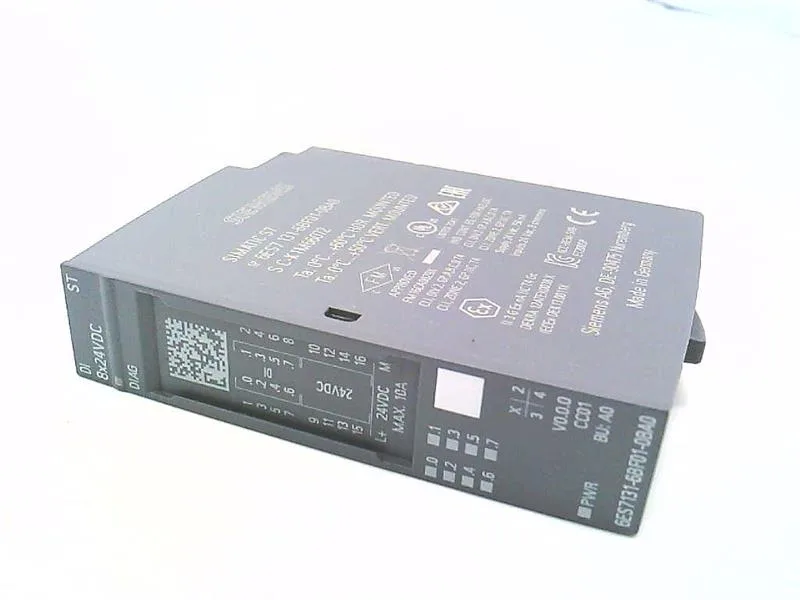

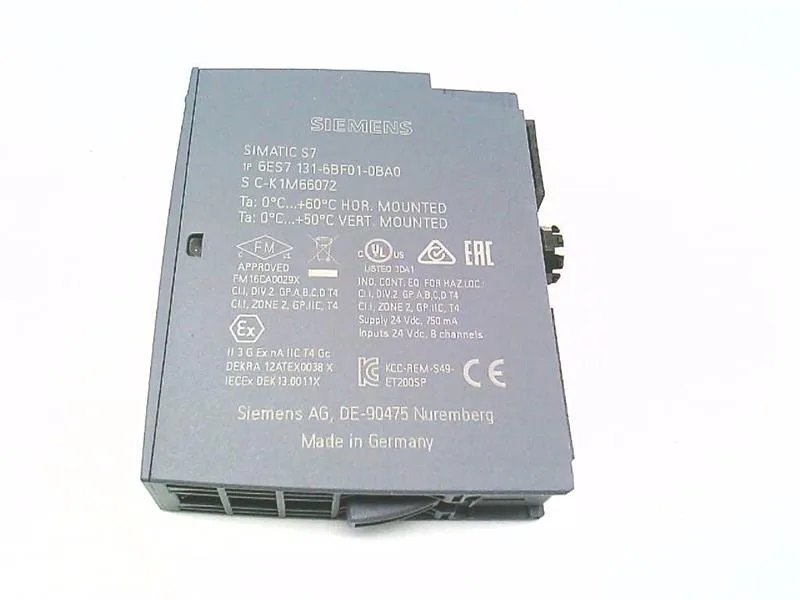

Siemens 6ES7131-6BF01-0BA0
MPN6ES7131-6BF01-0BA0
Active
SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input, (PNP, P-reading), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01, input delay time 0,05..20ms, module diagnostics for: short-circuit of sensor supply, wire break, supply voltage
$37.34Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Configurable from STEP 7 TIA Portal version | V14 |
| Firmware version | V0.0 |
| Hardware functional status (FS) | From FS02 |
| Parameter | Value |
|---|---|
| I&M data support | Yes; I&M0 to I&M3 |
| Diagnostics function | Yes |
| Isochronous mode | No |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Current consumption, max. | 50 mA; All channels are supplied from the encoder supply |
| Power loss (typ.) | 1 W; 24 V, 8 inputs supplied via encoder supply |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Isolation test voltage | 707 V DC (type test) |
| Parameter | Value |
|---|---|
| Input data area | 1 byte; + 1 byte for QI information |
| Parameter | Value |
|---|---|
| Operating temperature, horizontal install, min. | -30 °C; < 0 °C as of FS02 |
| Operating temperature, horizontal install, max. | 60 °C |
| Operating temperature, vertical install, max. | 50 °C |
| Operating temperature, vertical install, min. | -30 °C; < 0 °C as of FS02 |
| Parameter | Value |
|---|---|
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
MPN
6ES7131-6BF01-0BA0
